Far Infrared Metal Heating Panel for Ceiling or Wall Installation
The Rose-PRO Range combines advanced far infrared heating performance with a refined, ultra-slim design. Engineered for commercial and residential environments, these high-efficiency metal heating panels deliver targeted radiant warmth directly to people, surfaces, and objects for superior comfort and reduced energy consumption.
Manufactured with a durable anodised aluminium body and premium-grade internal components, Rose-PRO heaters provide powerful, silent, and maintenance-free heating without air movement, odours, or oxygen depletion. Their discreet low-profile form makes them ideal for installations where aesthetics, efficiency, and performance matter.
Key Features
- High Surface Temperature Performance – Reaches surface temperatures of up to 300°C for enhanced heat projection and efficient radiant coverage.
- Ultra-Slim & Compact Design – One of the smallest and thinnest infrared heaters available, ideal for space-conscious installations.
- IP44 Rated Protection – Resistant to dust and moisture, suitable for a wide range of indoor environments.
- Premium Anodised Finish – Durable 25-micron anodised coating provides excellent corrosion resistance and long-term durability.
- Commercial-Grade Construction – Robust steel body with stainless steel heating elements for dependable performance.
- Energy Efficient Operation – High thermal efficiency with low running costs compared to conventional heating systems.
- Silent & Clean Heating – Operates silently with no fan noise, no odours, and no oxygen burn.
- 5-Year Gold Replacement Warranty – Backed by a comprehensive replacement guarantee for complete peace of mind.
Installation Features

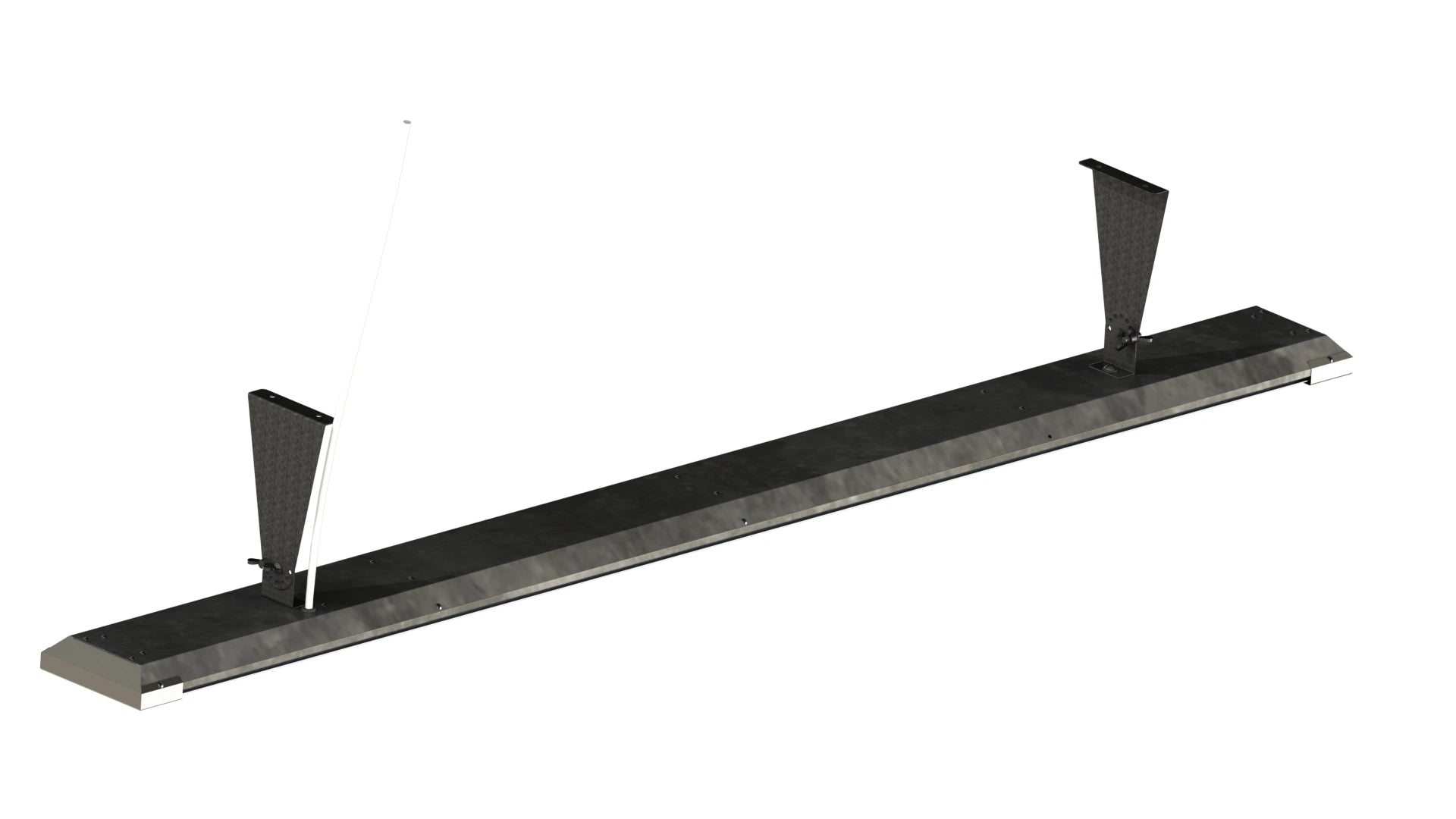

- Wall & Ceiling Mounting Brackets Included (Single-Phase models only).
- Adjustable Installation Angle – Supports angled mounting of up to 45° (Single-Phase models only).

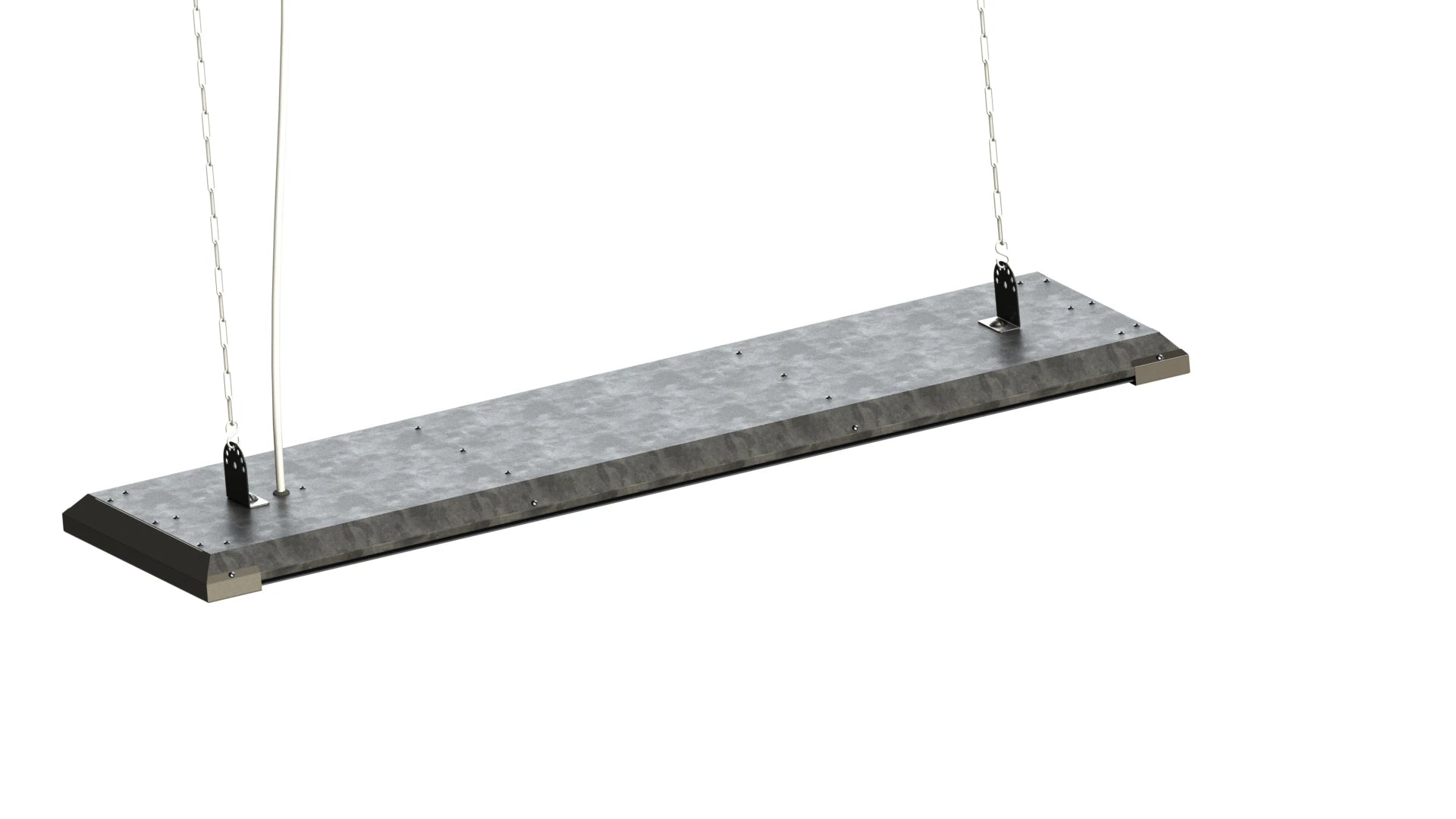

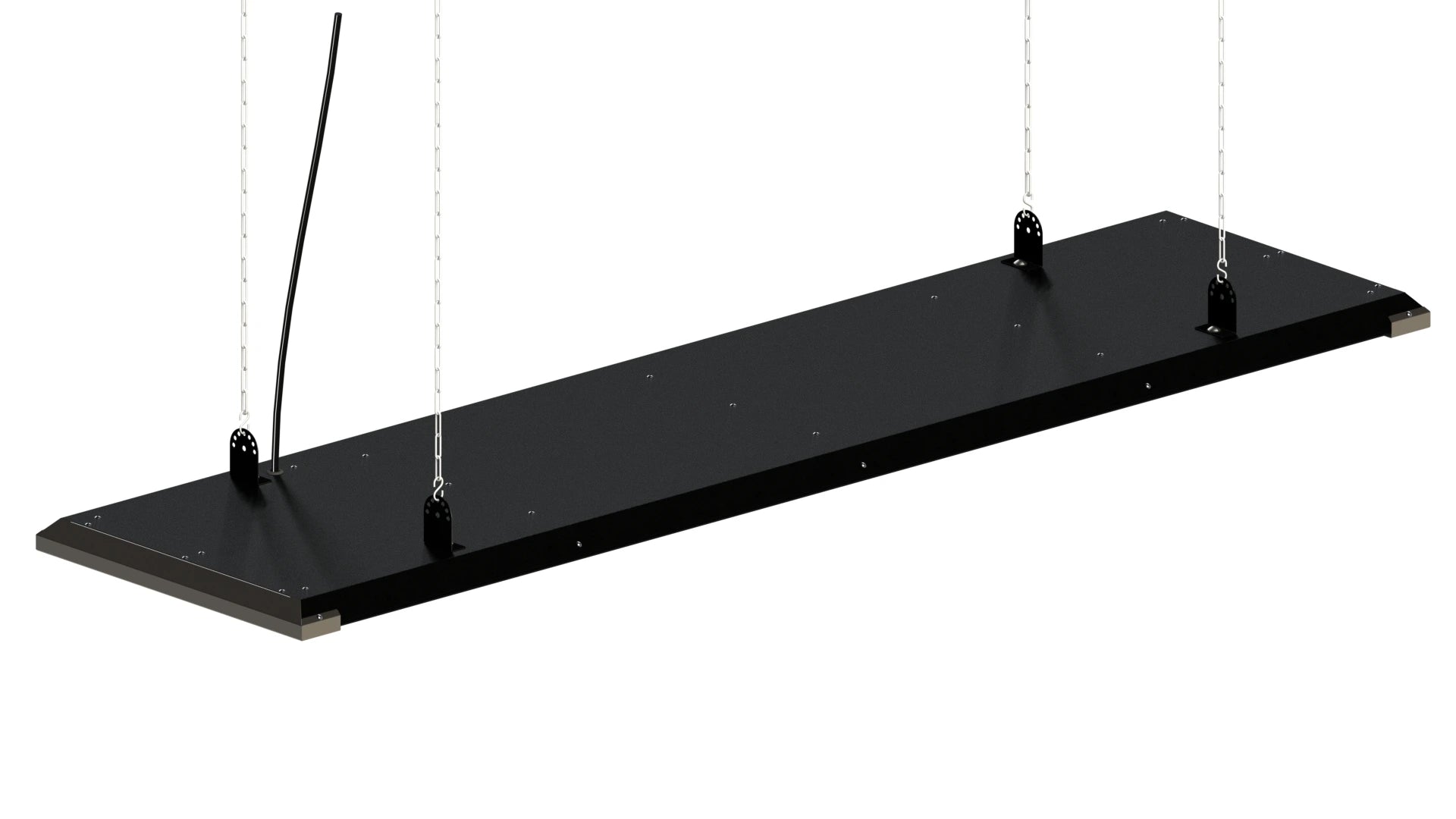

- Suspension Chains Included – All models include 1.8m chains for suspended installation in high-ceiling environments.
- Hardwired Connection – Supplied with a 1.8m cable for connection to a thermostat or fused spur (plug not included).
How Infrared Heating Works
Rose-Pro heaters use far infrared technology to warm people, surfaces, and objects directly, similar to the natural warming effect of sunlight. Instead of heating the surrounding air, infrared energy is absorbed by floors, walls, and furnishings, which then gradually release stored heat back into the space.
This method creates a more balanced, comfortable, and energy-efficient heating environment with minimal heat loss.

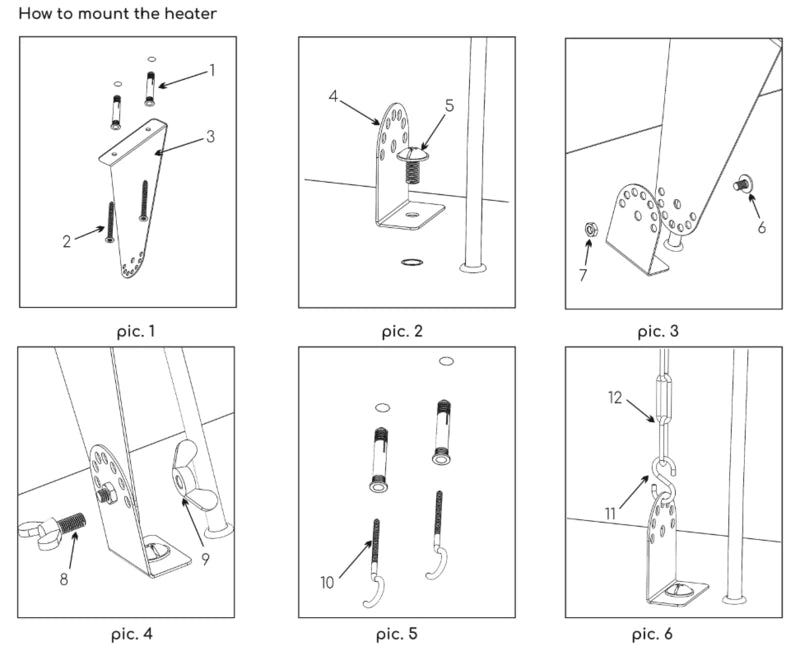

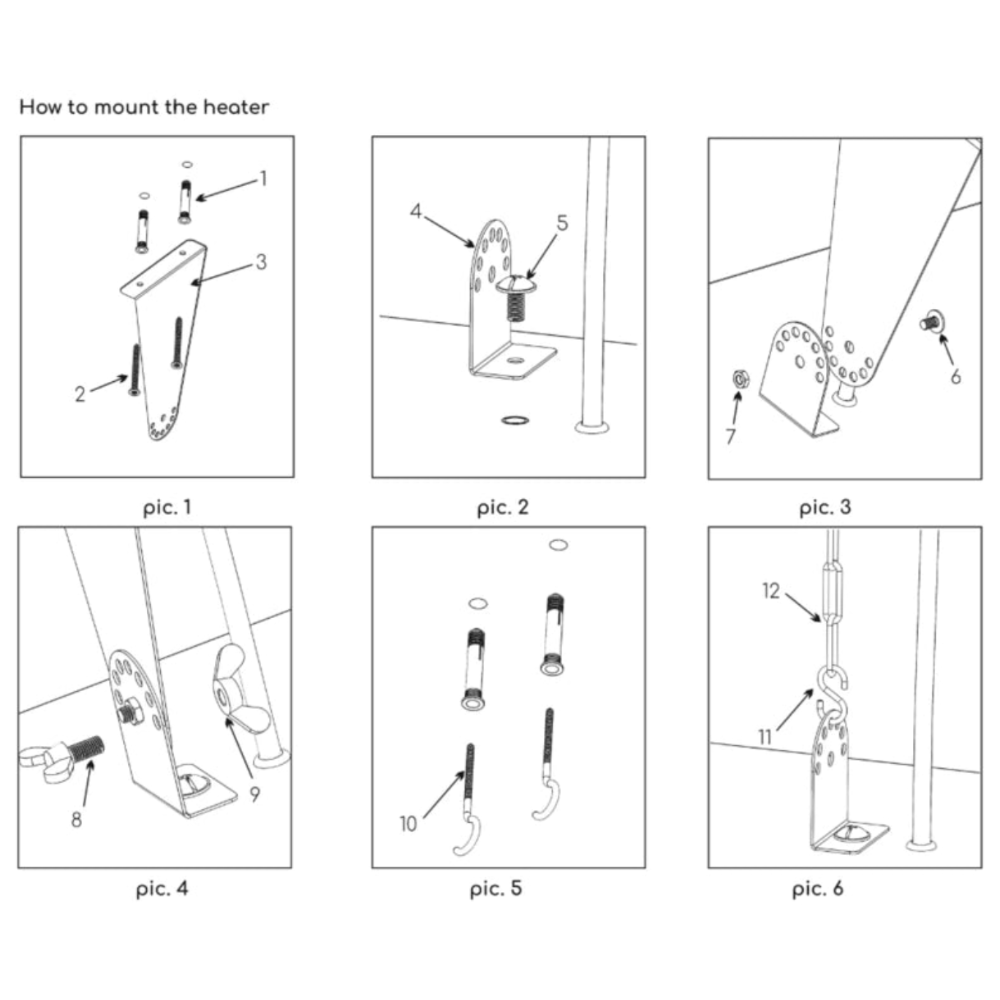

Design & Installation
Designed for ceiling or high-wall mounting, the Rose-PRO’s streamlined oval profile ensures wide and even heat distribution while maximising usable wall and floor space. Adjustable rotating brackets enable accurate positioning for targeted heating zones.
For safe installation:
- Maintain a minimum clearance of 20cm from the sides and rear of the heater to surrounding walls or objects.
- Maintain a minimum front clearance of 50cm.
- The power cable must remain perpendicular to the panel and must not come into contact with the rear surface of the heater.

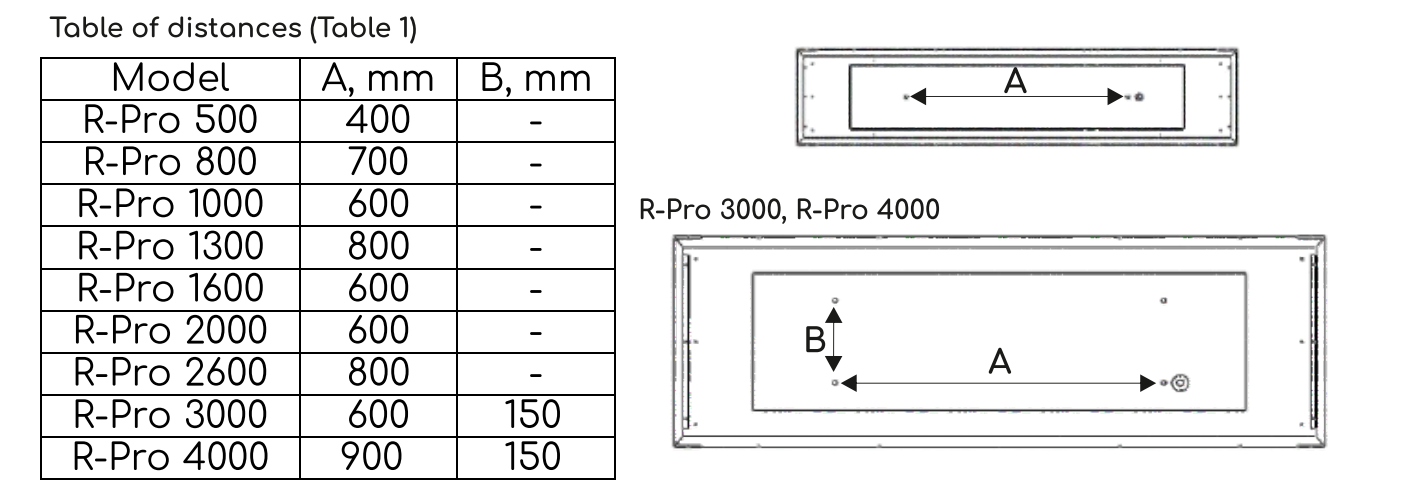

Please refer to the installation manual for full mounting and clearance guidance.
Recommended Applications
- Primary or supplementary heating in commercial spaces, offices and homes.
- Warehouses, workshops, showrooms, hospitality, and retail spaces requiring effective radiant warmth.
- High-ceiling environments where conventional heating is inefficient.
Instructions Manual
Specifications
| Useful Wavelength | 5 – 5.4 µm |
|---|---|
| Surface Temperature | 280 – 300°C |
| Cable Length | 1.8m (No plug supplied) |
| Control | Requires external thermostat or controller (not included) |
| Included Fixings | Wall / ceiling brackets (Single-Phase only) and suspension chains (Single & Three-Phase) |
| IP Rating | IP44 |
| Compliance | CE Certified, TÜV NORD Approved, RoHS Compliant |
| Electrical Safety | EN 60335-1 · EN 60335-2-30 · EN IEC 55014-2 · EN IEC 61000-3-3 |

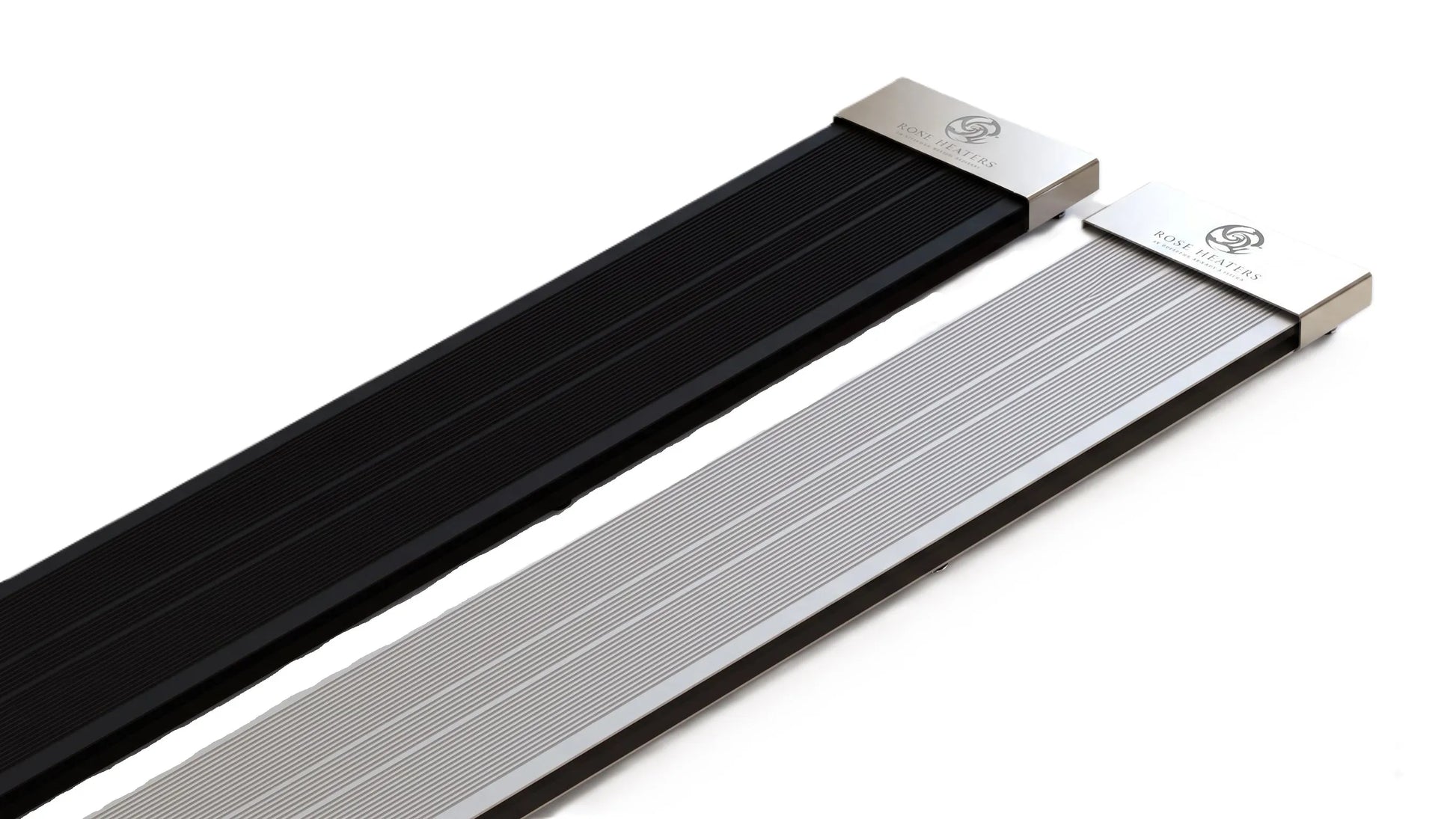

| Colour Options | Silver or Black |
| Warranty | 5 Years |

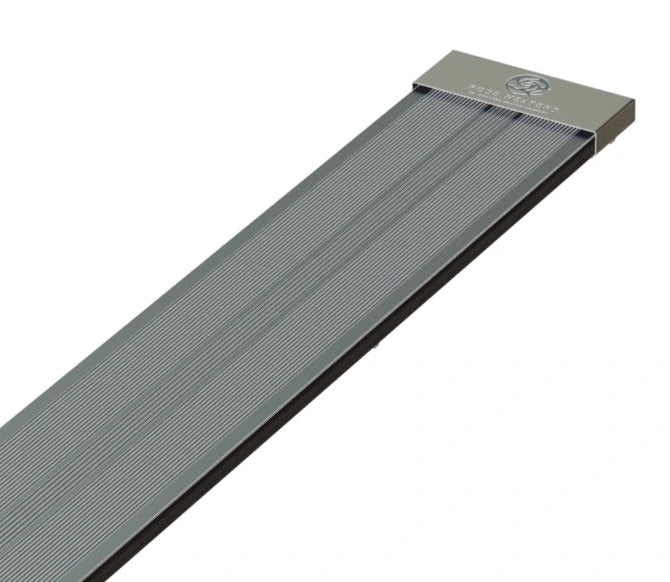

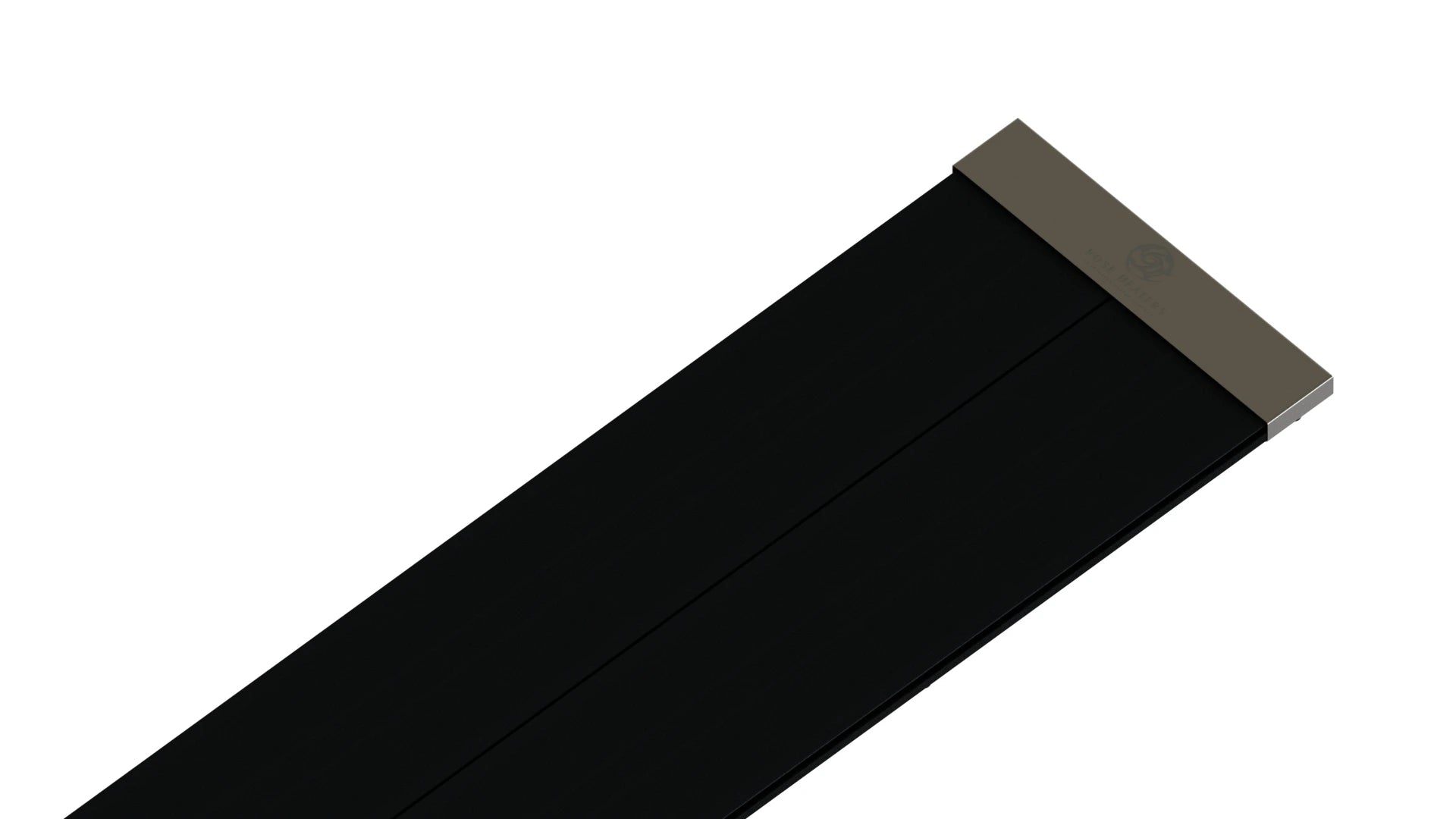

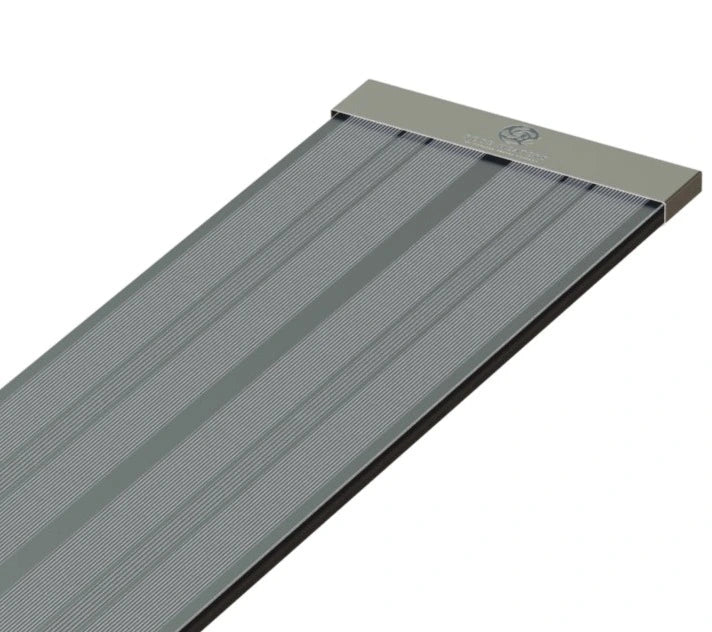

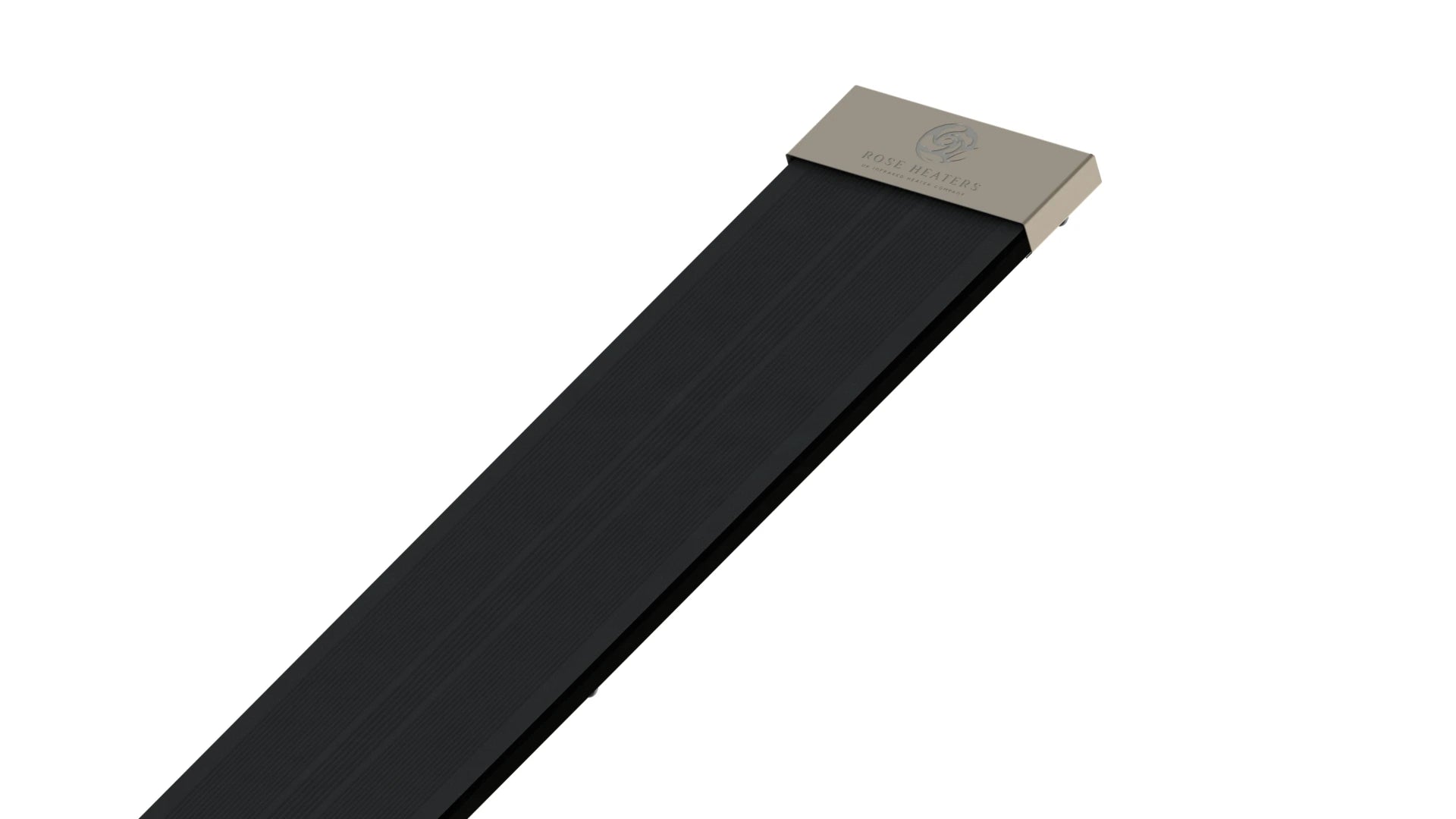

Single-Phase Models
220–240V | 50Hz | Wall, Ceiling or Suspension Mount
| Model | Wattage | Current | Dimensions | Weight | Heating Area* | Mount Height** | Wire Core |
|---|---|---|---|---|---|---|---|
| R-PRO500 | 500W | 2.4A | 620 × 130 × 35 mm | 1.5kg | 5m² | 2.4 – 3.0m | 3-core, 1.0mm² |
| R-PRO800 | 800W | 3.9A | 920 × 130 × 35 mm | 2.2kg | 8m² | 2.4 – 3.0m | 3-core, 1.0mm² |
| R-PRO1000 | 1000W | 4.8A | 1190 × 130 × 35 mm | 3.0kg | 10m² | 2.4 – 3.5m | 3-core, 1.0mm² |
| R-PRO1300 | 1300W | 6.3A | 1470 × 130 × 35 mm | 3.4kg | 13m² | 2.4 – 3.5m | 3-core, 1.5mm² |
| R-PRO1600 | 1600W | 7.7A | 920 × 260 × 35 mm | 4.2kg | 16m² | 2.4 – 3.5m | 3-core, 1.5mm² |
| R-PRO2000 | 2000W | 9.7A | 1190 × 260 × 35 mm | 5.4kg | 20m² | 2.8 – 3.5m | 3-core, 2.5mm² |
| R-PRO2600 | 2600W | 12.6A | 1470 × 260 × 35 mm | 6.5kg | 26m² | 2.8 – 4.0m | 3-core, 2.5mm² |

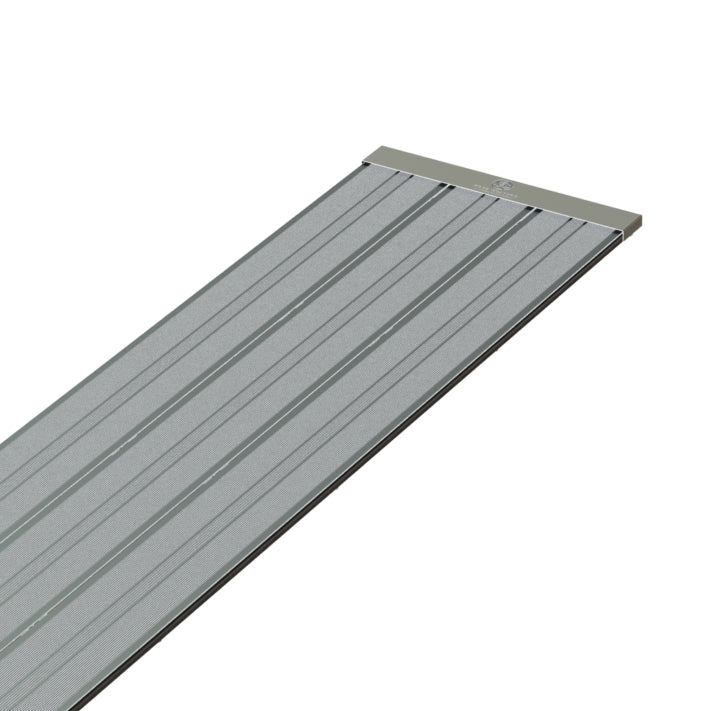

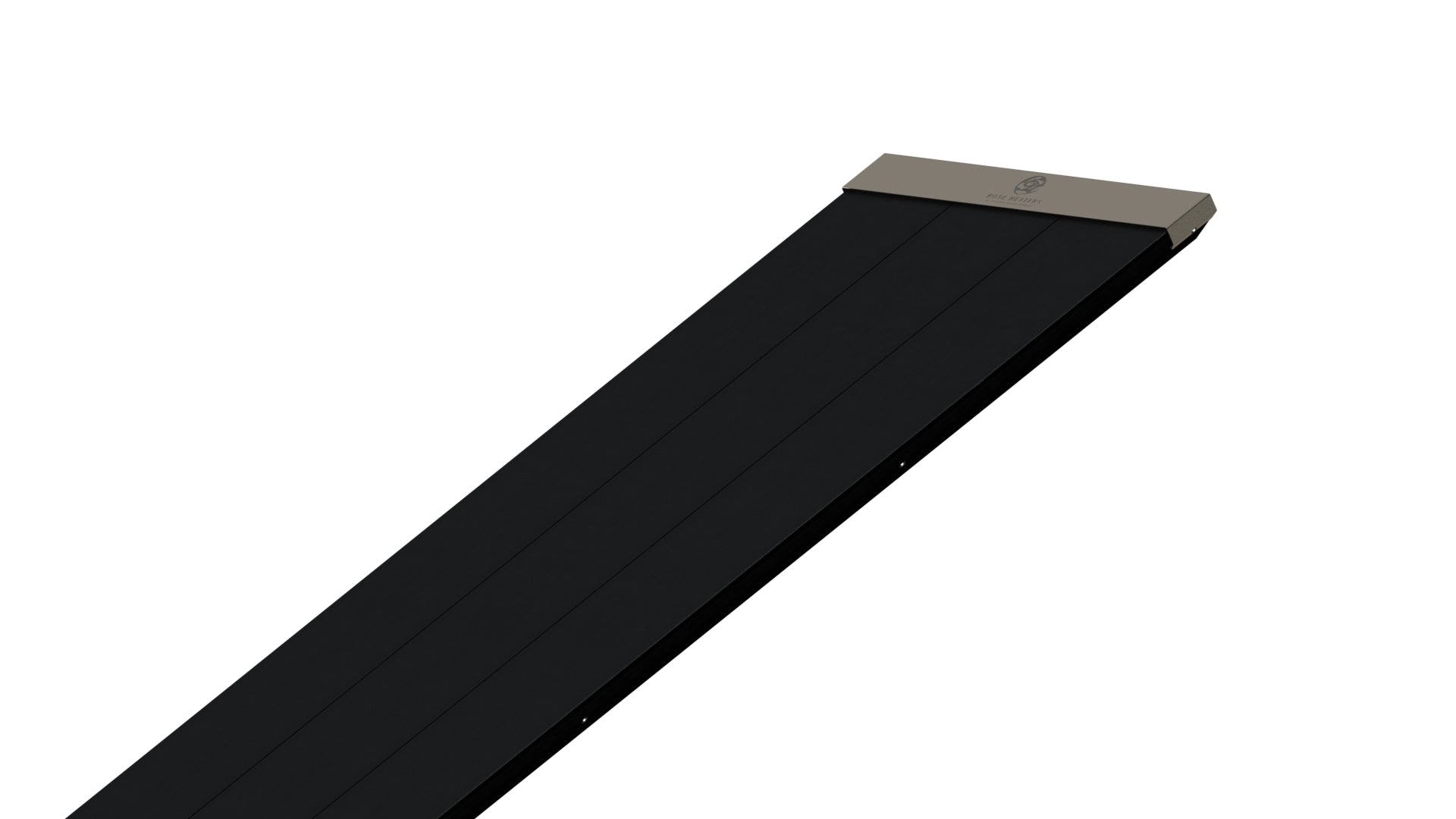

Three-Phase Models
400Y / 230V | 50Hz | Suspension Mount
| Model | Wattage | Current | Dimensions | Weight | Heating Area* | Mount Height** | Wire Core |
|---|---|---|---|---|---|---|---|
| R-PRO3000 | 3000W | 4.8A per phase | 1190 × 380 × 35 mm | 7.8kg | 30m² | 3.5 – 4.5m | 5-core (TP&N), 4mm² |
| R-PRO4000 | 4000W | 6.3A per phase | 1470 × 380 × 35 mm | 9.8kg | 40m² | 4.0 – 5.0m | 5-core (TP&N), 4mm² |
*Heating Area: Coverage figures are indicative only and may vary depending on insulation, glazing, room heat loss, ceiling height and building construction.
**Mounting Height: Recommended mounting heights are based on achieving approximately 20°C in insulated environments. Adjustments may be required depending on insulation quality and target room temperature.
Colour Codes: Add suffix S for Silver or B for Black (Example: R-PRO500S).
