Medium Infrared Ceiling & Wall Bar Heater
The Rose-GLO Range is a premium series of medium-wave infrared heaters designed for commercial, industrial and large open-plan environments. Delivering rapid warm-up performance and wide-angle radiant heat distribution, Rose-GLO heaters provide comfortable, targeted warmth exactly where it is needed while helping to reduce energy waste.
Manufactured with a durable anodised aluminium body, Rose-GLO heaters are ideal for warehouses, workshops, sports halls, gyms, churches, village halls and hot yoga studios. Their silent operation and soft orange glow provide effective radiant heating without fans, moving parts or air movement.
Key Features
- Medium-Wave Infrared Technology – Fast and effective radiant heating for commercial and industrial environments.
- Fast Warm-Up Time – Reaches operating temperature in approximately 10 minutes.
- Soft Orange Glow – Provides visible heat indication without excessive glare.
- Wide-Angle Heat Distribution – Ideal for primary, supplementary or zone heating applications.
- Flexible Control Options – Compatible with thermostats, BMS controls, PIR sensors or manual switching (not included).
- Adjustable Heating Direction – Rotating mounting brackets allow accurate positioning of the heat output (single-phase models).
- Silent Operation – No fans, moving parts or noise during operation.
- Commercial-Grade Construction – Durable anodised aluminium body built for demanding environments.
- Wall, Ceiling or Suspension Mounting – Flexible installation options depending on model.
- European Safety Certified – CE Certified, TÜV NORD Approved and RoHS Compliant.
- 3-Year Warranty – Manufacturer-backed warranty for peace of mind.
How Medium-Wave Infrared Heating Works
Rose-GLO heaters emit medium-wave infrared energy that warms people, floors, equipment and surrounding surfaces directly rather than heating large volumes of air. This allows heat to be delivered quickly and efficiently to occupied areas.
Because infrared heat travels directly to objects and occupants, it is particularly effective in large spaces, buildings with high ceilings and areas where conventional heating systems may be inefficient.
Design & Installation

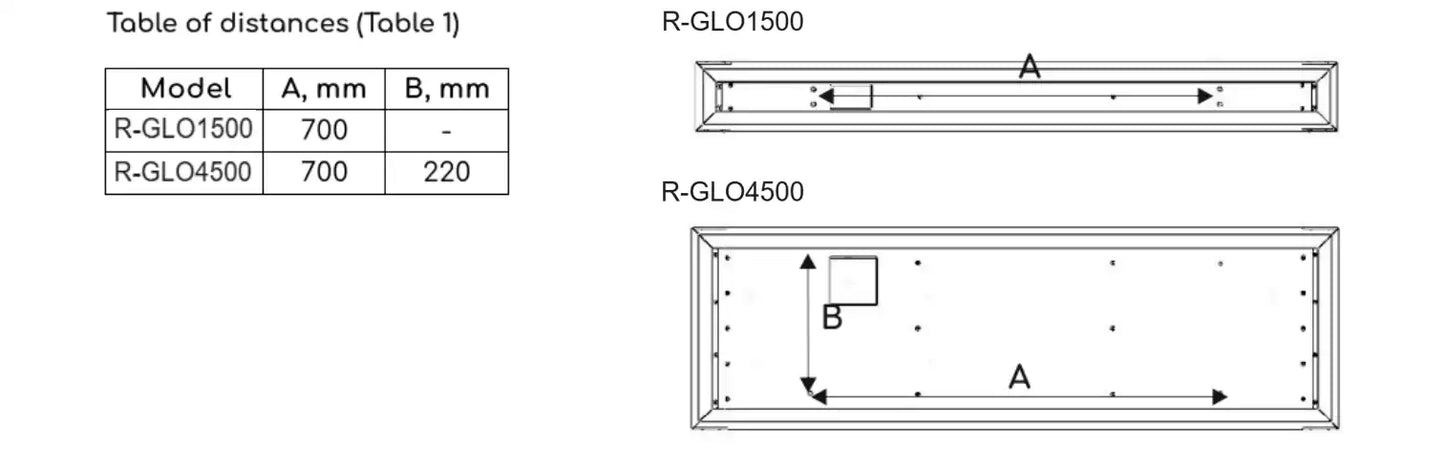

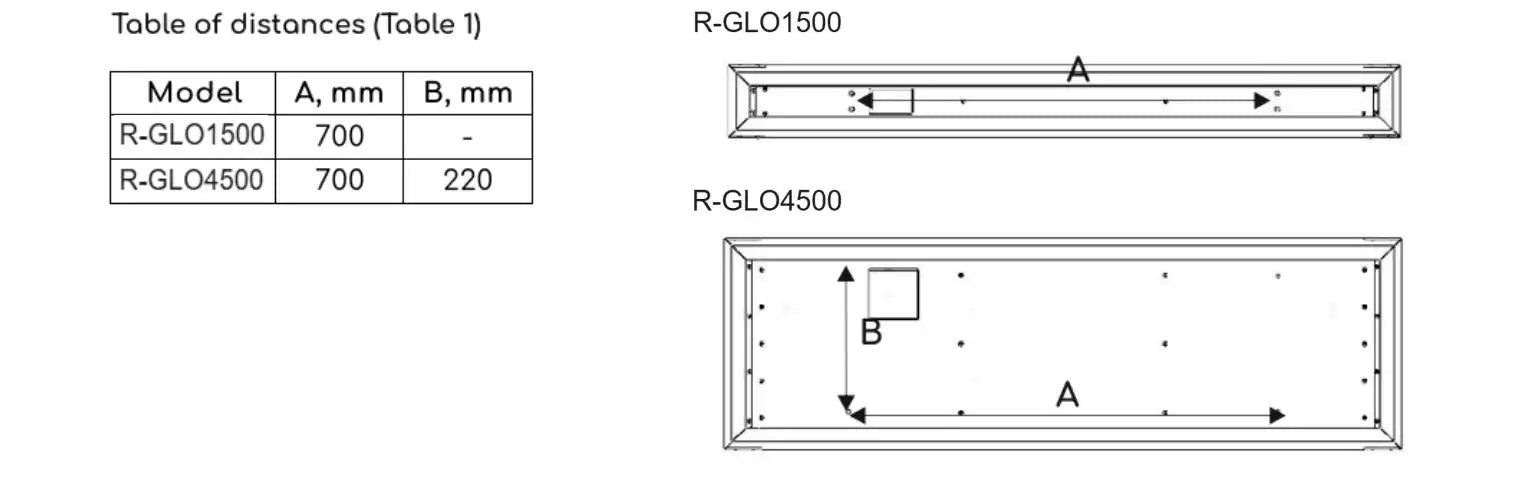

Rose-GLO heaters are designed for wall mounting, ceiling mounting or suspended installation depending on the selected model. Adjustable brackets allow precise heat positioning for targeted heating zones.
- Maintain a minimum 20cm clearance from the sides and rear of the heater.
- Maintain a minimum 50cm clearance from the front face of the heater.
- The power cable must remain perpendicular to the heater and must not contact the rear surface.
- Single-phase models include wall/ceiling mounting brackets.
- Both single-phase and three-phase models include 1.8m suspension chains.
Please refer to the installation manual for complete mounting and clearance requirements.
Recommended Applications
- Warehouses and industrial buildings.
- Sports halls and gymnasiums.
- Churches and community halls.
- Hot yoga studios and fitness facilities.
- Workshops, showrooms and commercial premises.
- Large open-plan spaces requiring zone heating.
Rose-GLO Instructions Manual
Specifications
| Heating Technology | Medium-Wave Infrared |
|---|---|
| Useful Wavelength | 3.3 – 3.4 μm |
| Operating Temperature | Up to 600°C |
| Warm-Up Time | Approximately 10 Minutes |
| Control | Requires External Thermostat or Controller (Not Included) |
| Mounting Options | Wall, Ceiling or Suspension Mount (Model Dependent) |
| Included Fixings | Wall/Ceiling Brackets (Single-Phase Models) and 1.8m Suspension Chains |
| IP Rating | IP20 |
| Colour | Silver |
| Compliance | CE Certified, TÜV NORD Approved, RoHS Compliant |
| Warranty | 3 Years |
Single-Phase Models
220–240V | 50Hz | Wall, Ceiling or Suspension Mount
| Model | Power | Current | Dimensions | Weight | Heating Area* | Mount Height** | Minimum Cable CSA |
|---|---|---|---|---|---|---|---|

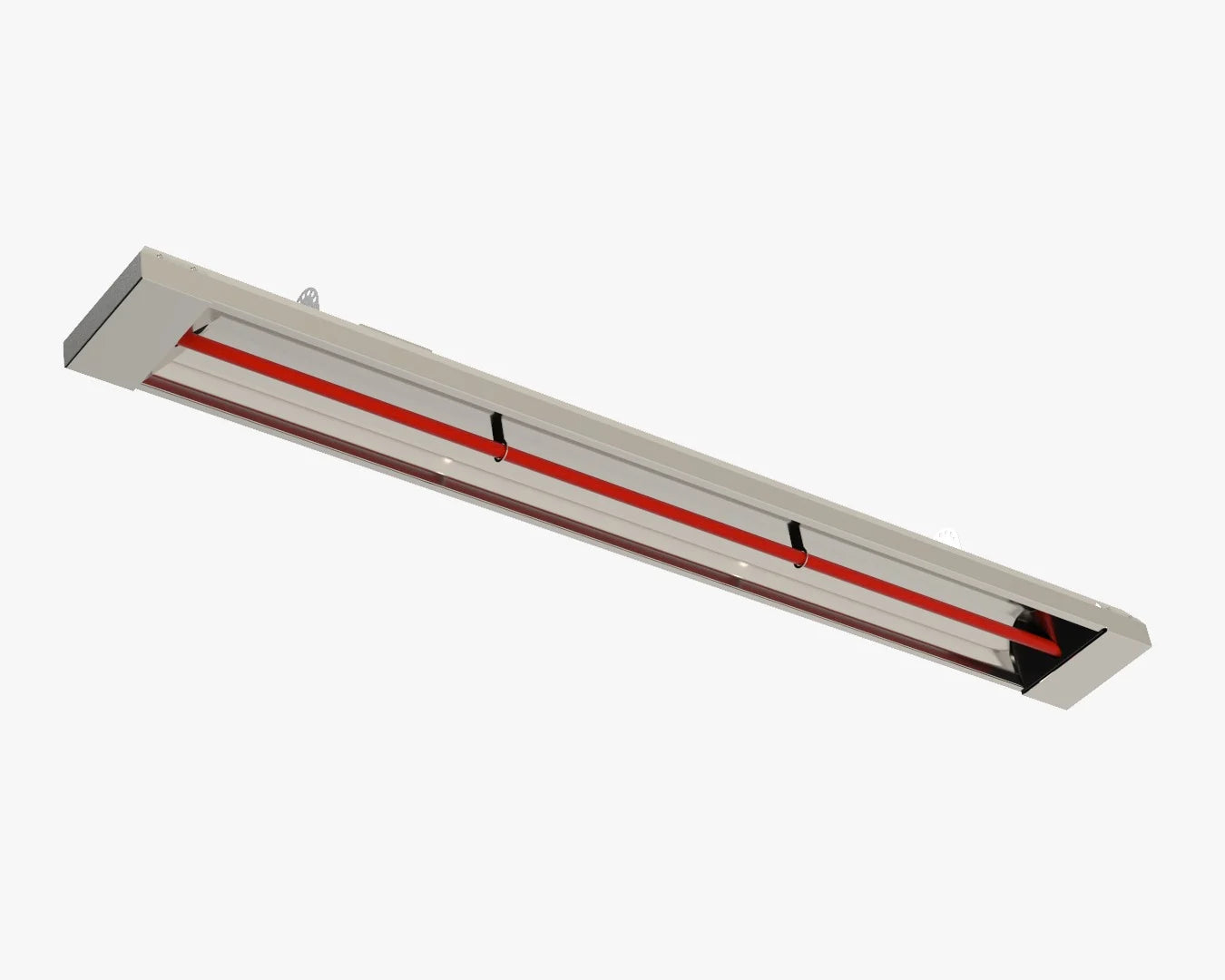

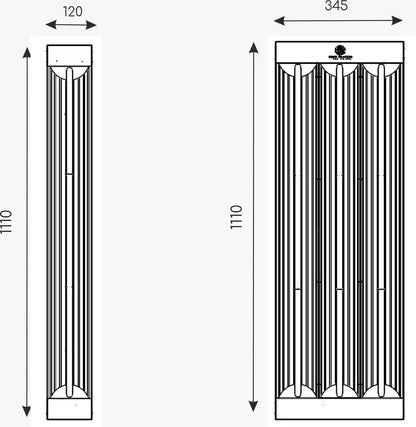

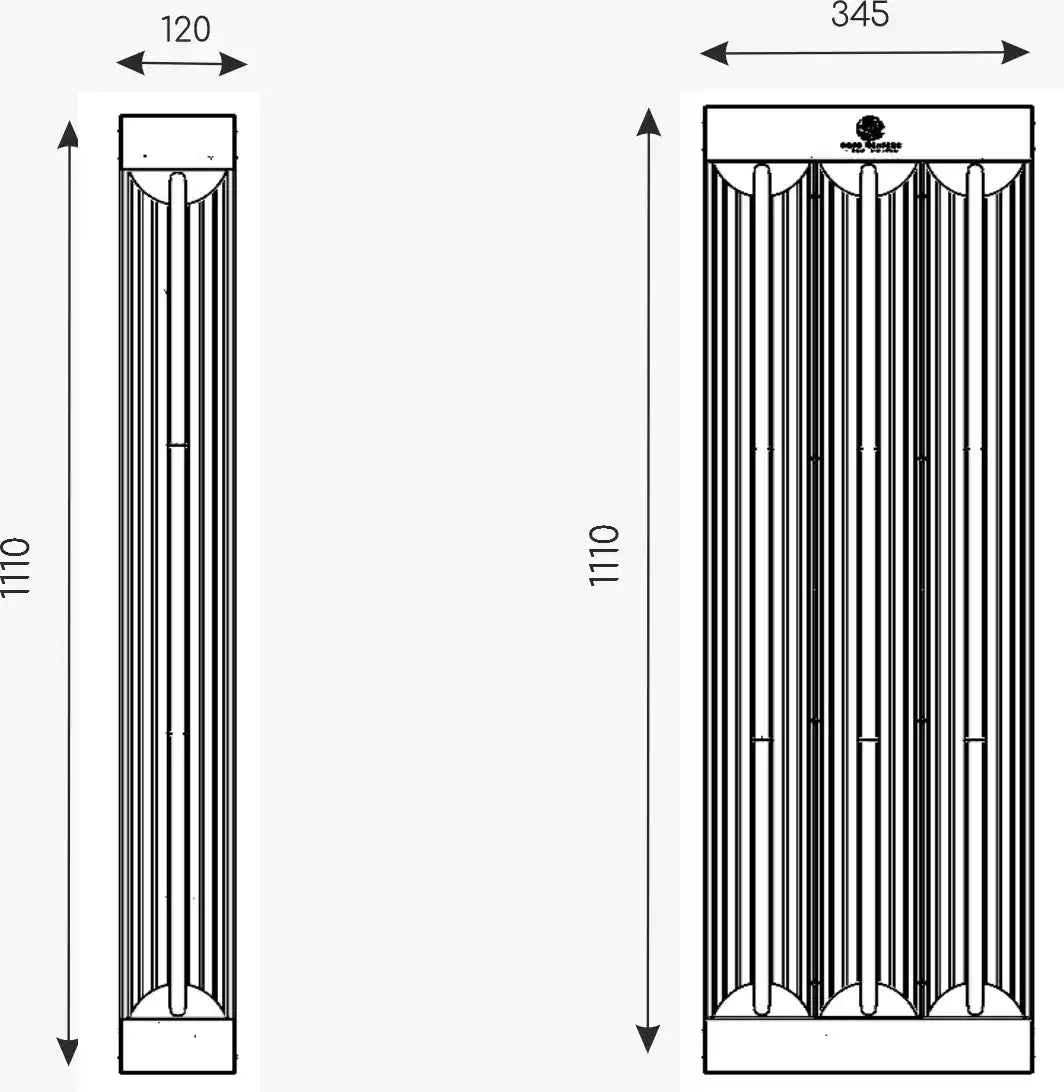

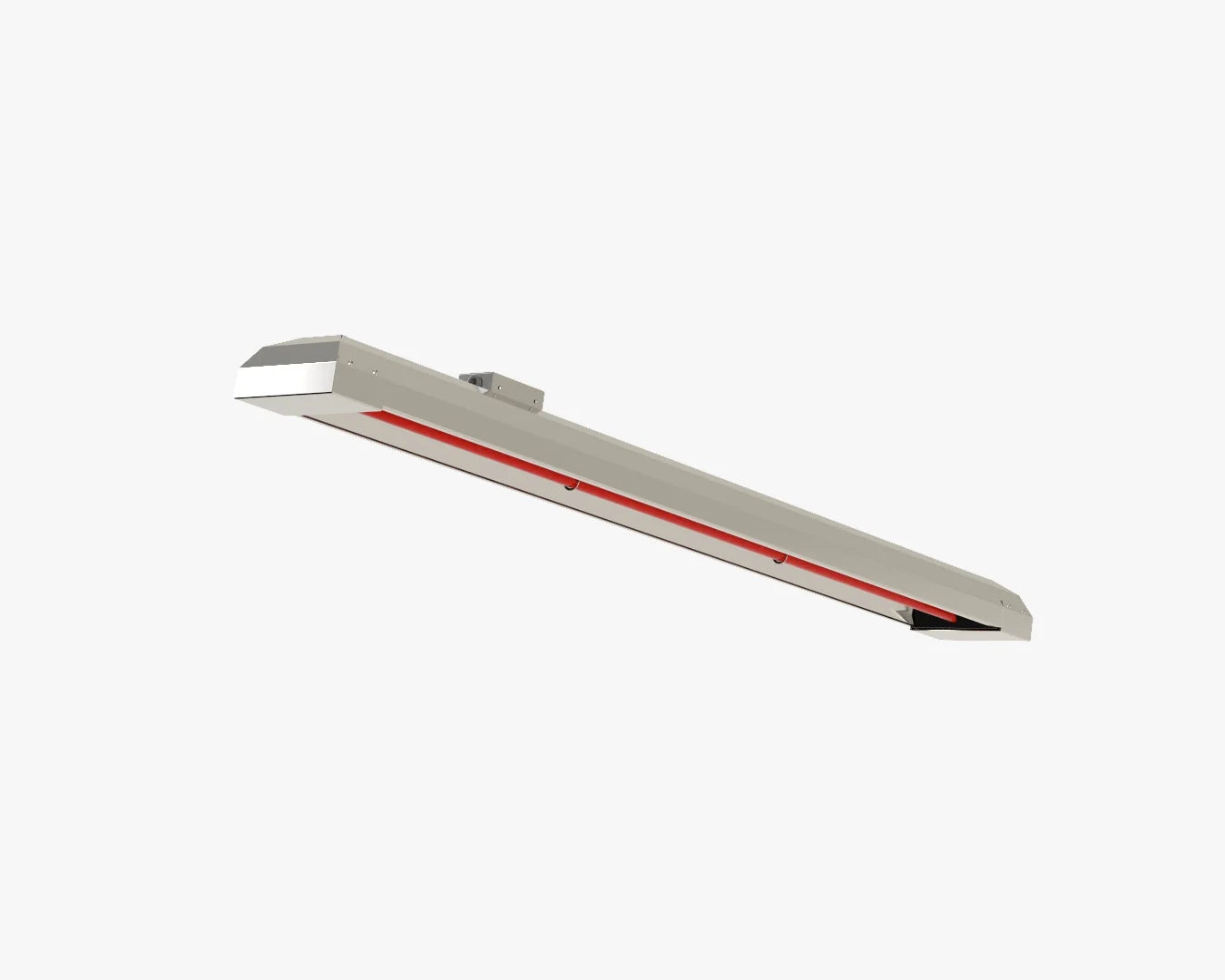

| R-GLO1500 | 1500W | 6.6A | 1110 × 120 × 65mm | 3.3kg | 15m² | 2.4 – 5.0m | 3 Core, 1.5mm² |
Three-Phase Models
400Y / 230V | 50Hz | Suspension Mount
| Model | Power | Current | Dimensions | Weight | Heating Area* | Mount Height** | Minimum Cable CSA |
|---|---|---|---|---|---|---|---|

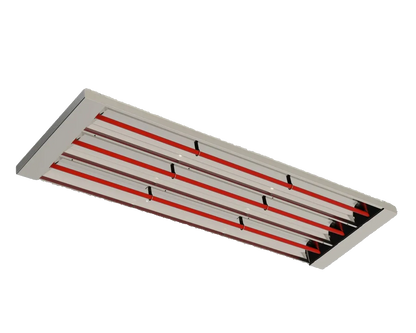

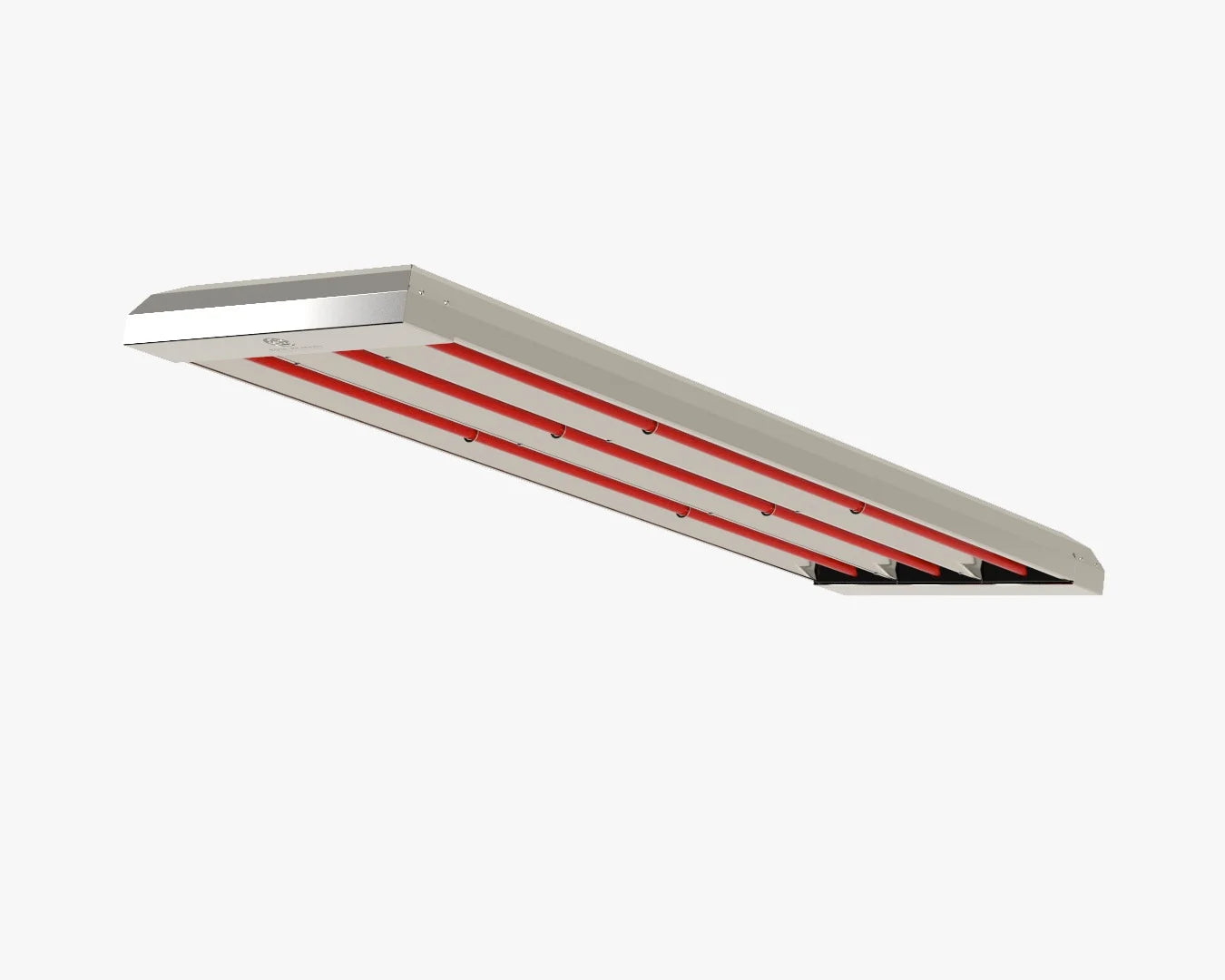

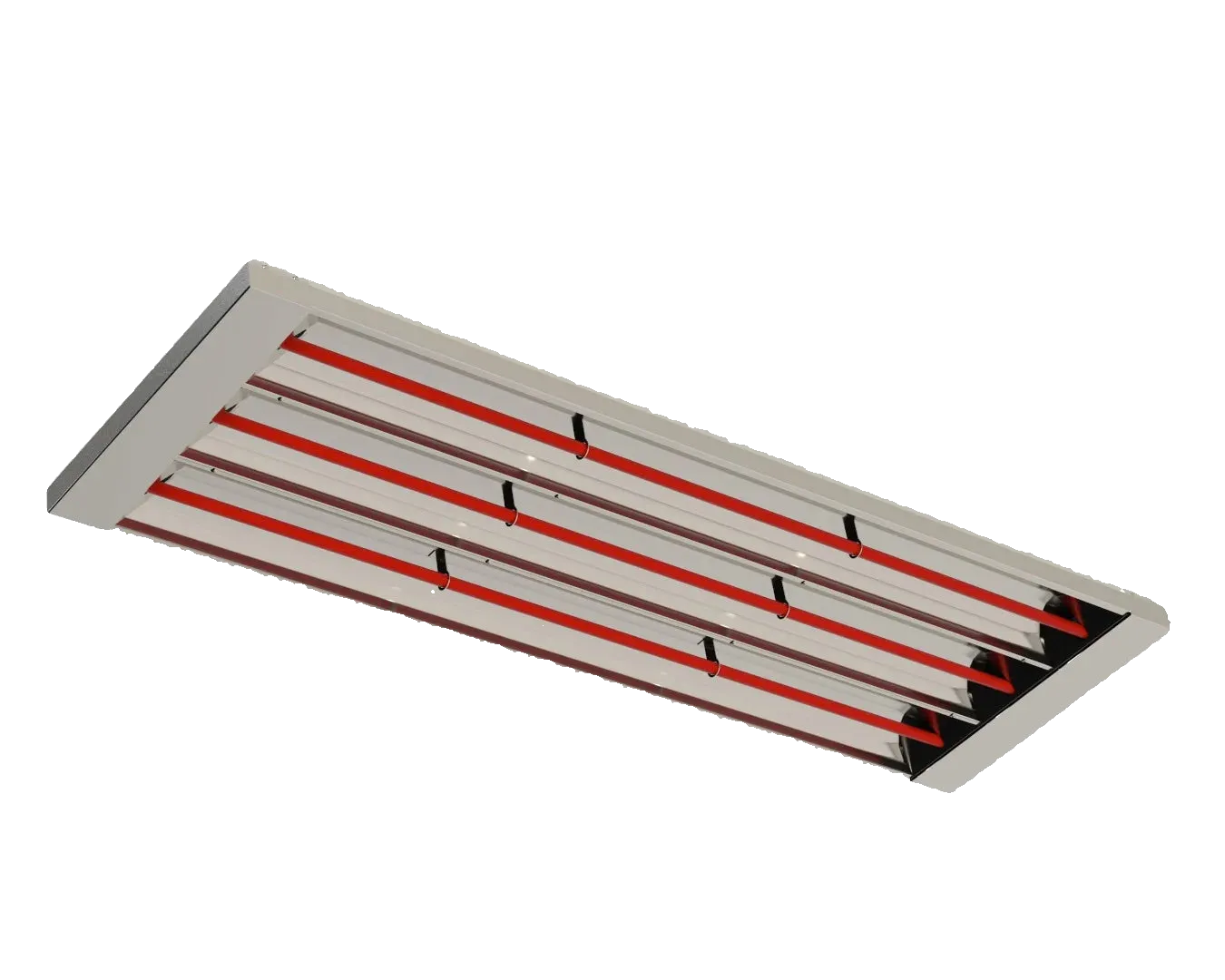

| R-GLO4500 | 4500W | 6.6A Per Phase | 1110 × 345 × 65mm | 5.9kg | 45m² | 4.0 – 15.0m | 5 Core (TP&N), 1.5mm² |
*Heating Area: Coverage figures are indicative only and may vary depending on insulation, glazing, mounting height, room layout and heat loss.
**Mounting Height: Recommended mounting heights are based on achieving approximately 20°C in insulated environments and may require adjustment for site-specific conditions.
Installation: Maintain a minimum clearance of 20cm from the heater edges and 50cm from the front face to surrounding objects and building surfaces.
