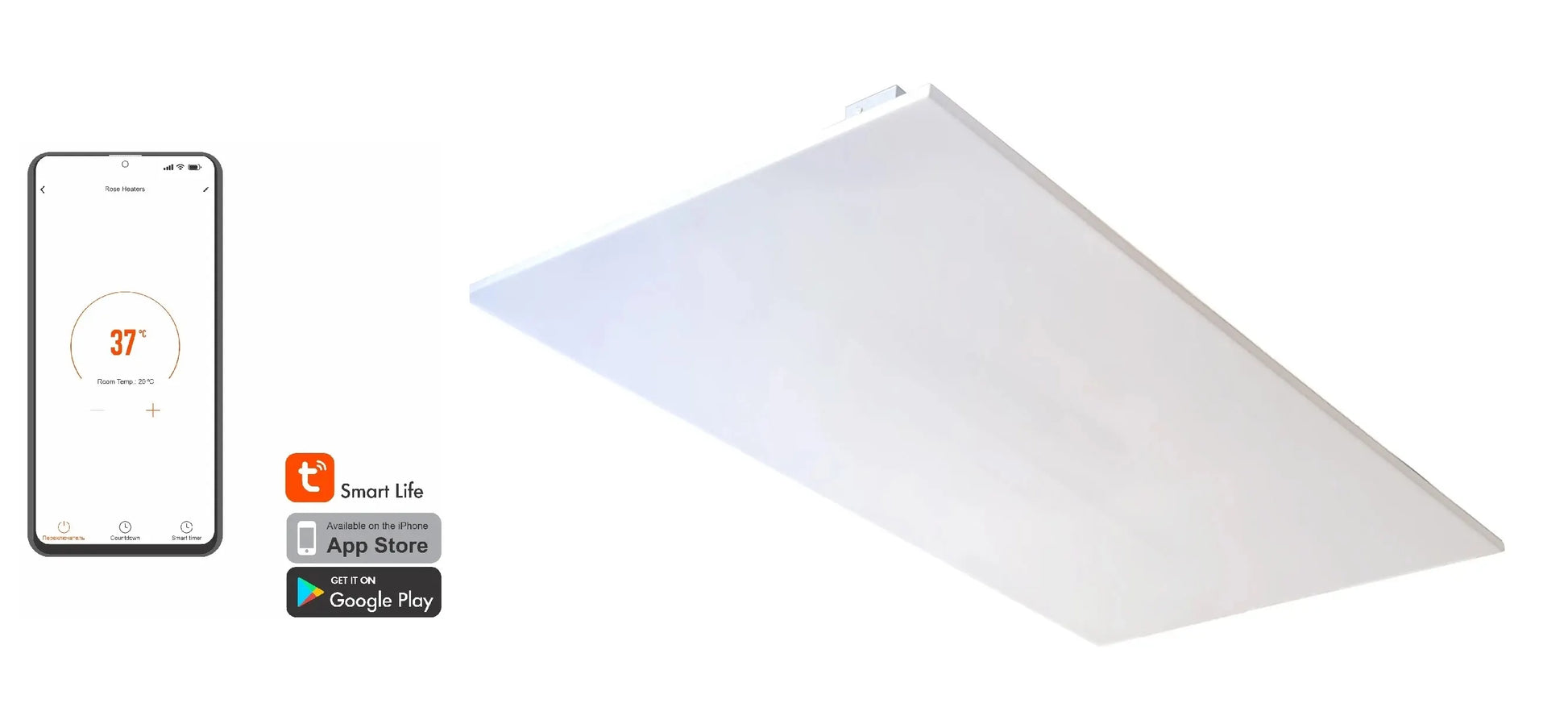

Far Infrared Metal Heating Panel with Smart Built-In WiFi Thermostat
The Lotus WiFi Range combines advanced far infrared heating technology with intelligent smart controls to deliver efficient, comfortable, and fully programmable heating for homes and commercial spaces. Available in 350W, 400W, 500W, 600W, 800W, and 1000W models, these premium ceiling-mounted panels feature a built-in WiFi thermostat and remote control for convenient heating management from anywhere.
Manufactured using an ultra-efficient nanocrystalline heating element, Lotus WiFi panels convert up to 99% of electrical energy into usable heat while operating silently and maintenance-free. Their slimline design allows discreet ceiling installation with only a 5cm mounting gap.
Key Features

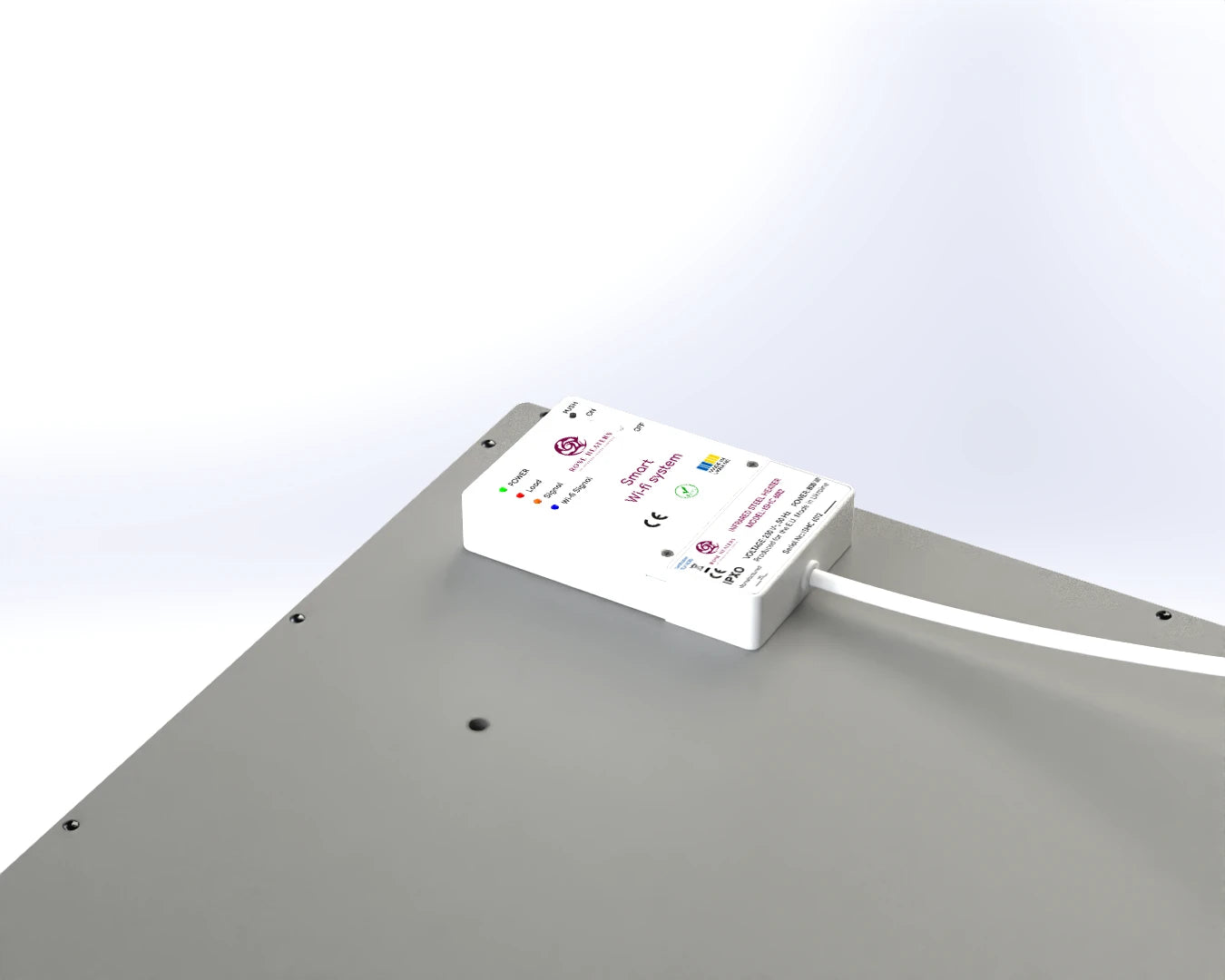

- Built-In Smart WiFi Thermostat – Control room temperatures remotely via WiFi connectivity.

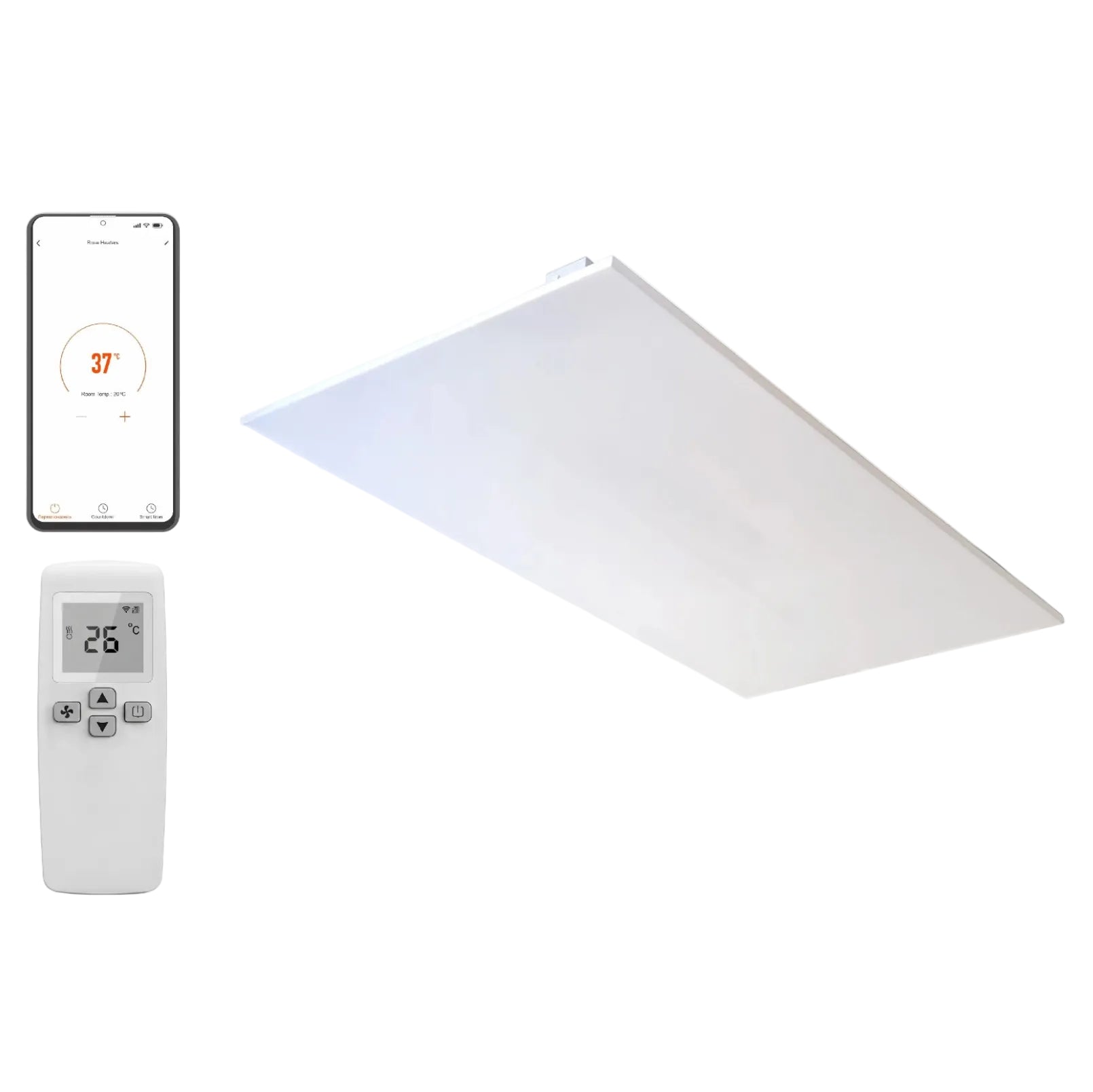

- Remote Control Included – Convenient local temperature adjustment and programming.
- Ultra-Efficient Nanocrystalline Heating Element – Up to 99% energy efficiency.
- Surface Temperature up to 120°C – Powerful radiant heating performance.
- Fast Heat-Up Time – Reaches operating temperature in approximately 10 minutes.
- Silent Operation – No fans, moving parts, or operating noise.
- Long Service Life – Corrosion-resistant construction with a lifespan of up to 30 years.
- Heavy-Duty Steel Construction – Finished with a heat-resistant powder coating.
- Ceiling Mounting System Included – Supplied with four mounting brackets and heavy-duty fixing screws.
- European Safety & TÜV Certified – Manufactured to strict European quality standards.
- 5-Year Gold Replacement Warranty – On the heating panel.
- 2-Year Warranty – On the WiFi remote control thermostat.
Why Choose Infrared Heating?
Unlike traditional convection heaters that primarily warm the air, Lotus WiFi infrared panels heat people, furniture, walls, and floors directly. These surfaces then store and gradually release warmth back into the room, creating comfortable and even temperatures throughout the space.
This radiant heating approach eliminates common hot and cold spots associated with convection heating and provides comfortable warmth exactly where it is needed.

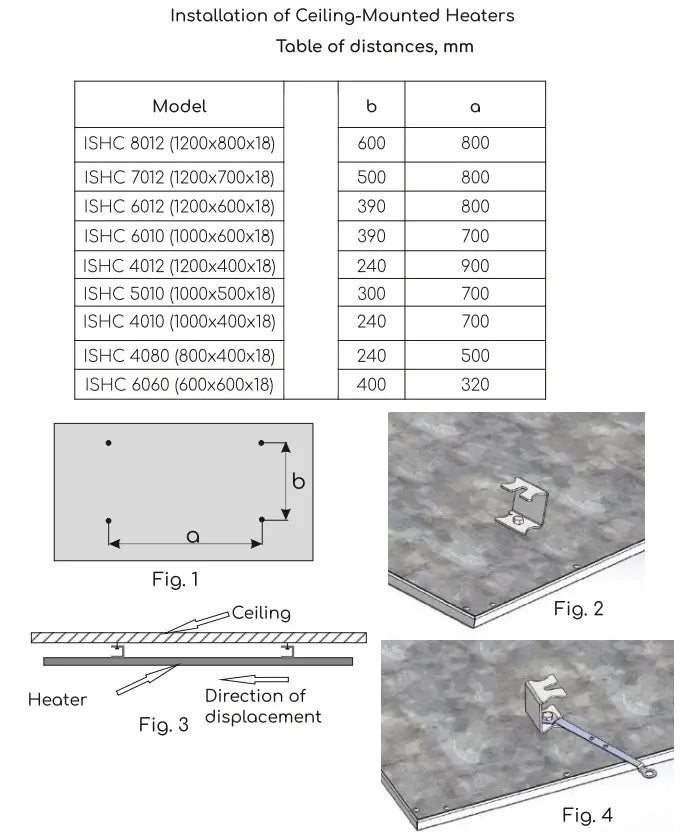

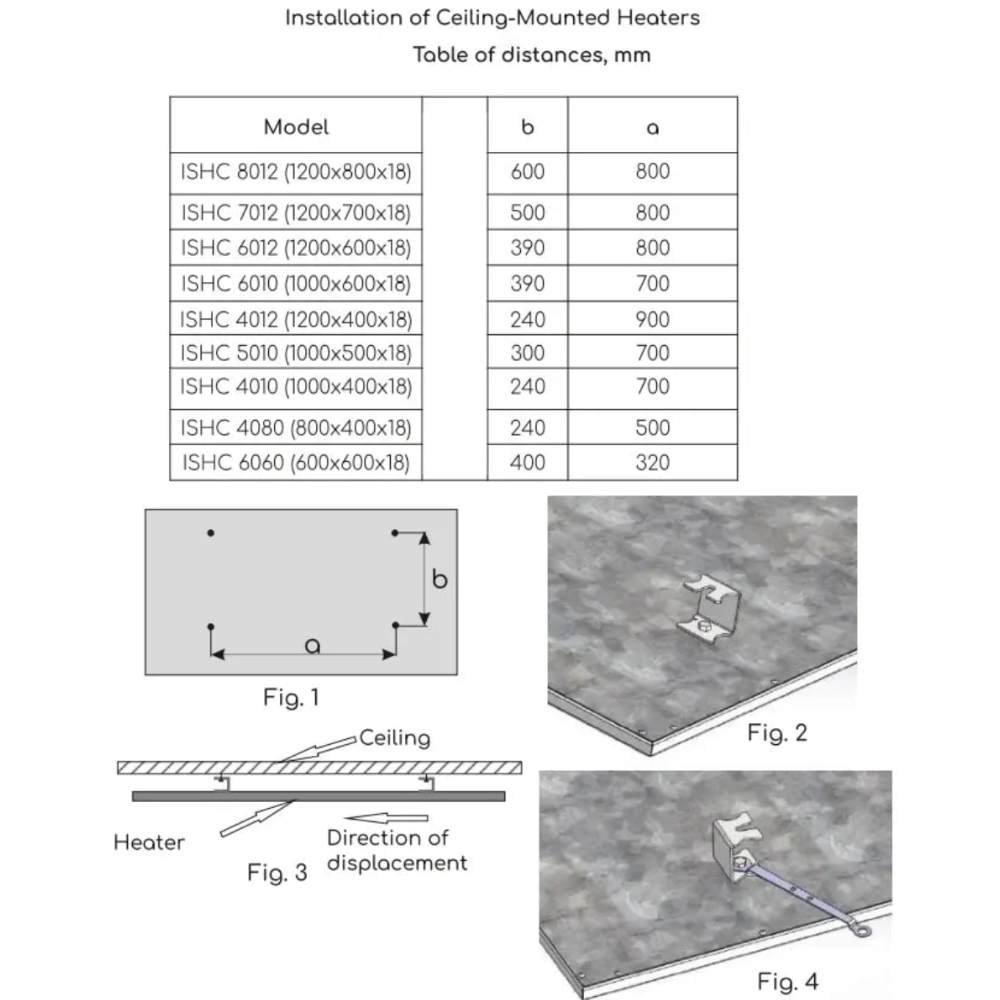

Design & Installation
Designed specifically for ceiling installation, Lotus WiFi panels maximise available wall space while providing even heat distribution across the room.
- Supplied with four ceiling-mount brackets providing a slim 5cm installation gap.
- Maintain a minimum 20cm clearance from the panel edges to walls or surrounding objects.
- Maintain a minimum 50cm clearance in front of the panel.
- The power cable must remain perpendicular to the heater and must not touch the rear surface.
- Supplied with a 1.2m hardwire cable for connection to a fused spur (plug not supplied).
Please refer to the installation manual for full mounting and electrical safety requirements.
Recommended Applications
- Residential homes and apartments.
- Offices and commercial buildings.
- Retail stores and showrooms.
- Hotels, cafés and hospitality spaces.
- Primary or supplementary heating systems.
Lotus Instructions Manual
Specifications
| Technology | Far Infrared Nanocrystalline Heating Panel |
|---|---|
| Control | Built-In Smart WiFi Thermostat & Remote Control |
| Surface Temperature | Up to 120°C |
| Heat-Up Time | Approximately 10 Minutes |
| Efficiency | Up to 99% |
| Cable Length | 1.2m Hardwire Cable (No Plug Supplied) |
| Mounting | Ceiling Mount with 5cm Gap |
| Included Fixings | 4 Ceiling Brackets & Heavy-Duty Mounting Screws |
| Construction | High-Tension Steel with Heat-Resistant Powder Coating |
| Certification | CE Certified & TÜV Approved |
| Panel Warranty | 5 Years Gold Replacement Warranty |
| WiFi Thermostat Warranty | 2 Years |
Available Models
| Model | Wattage | Current | Dimensions | Weight | Heating Area* |
|---|---|---|---|---|---|

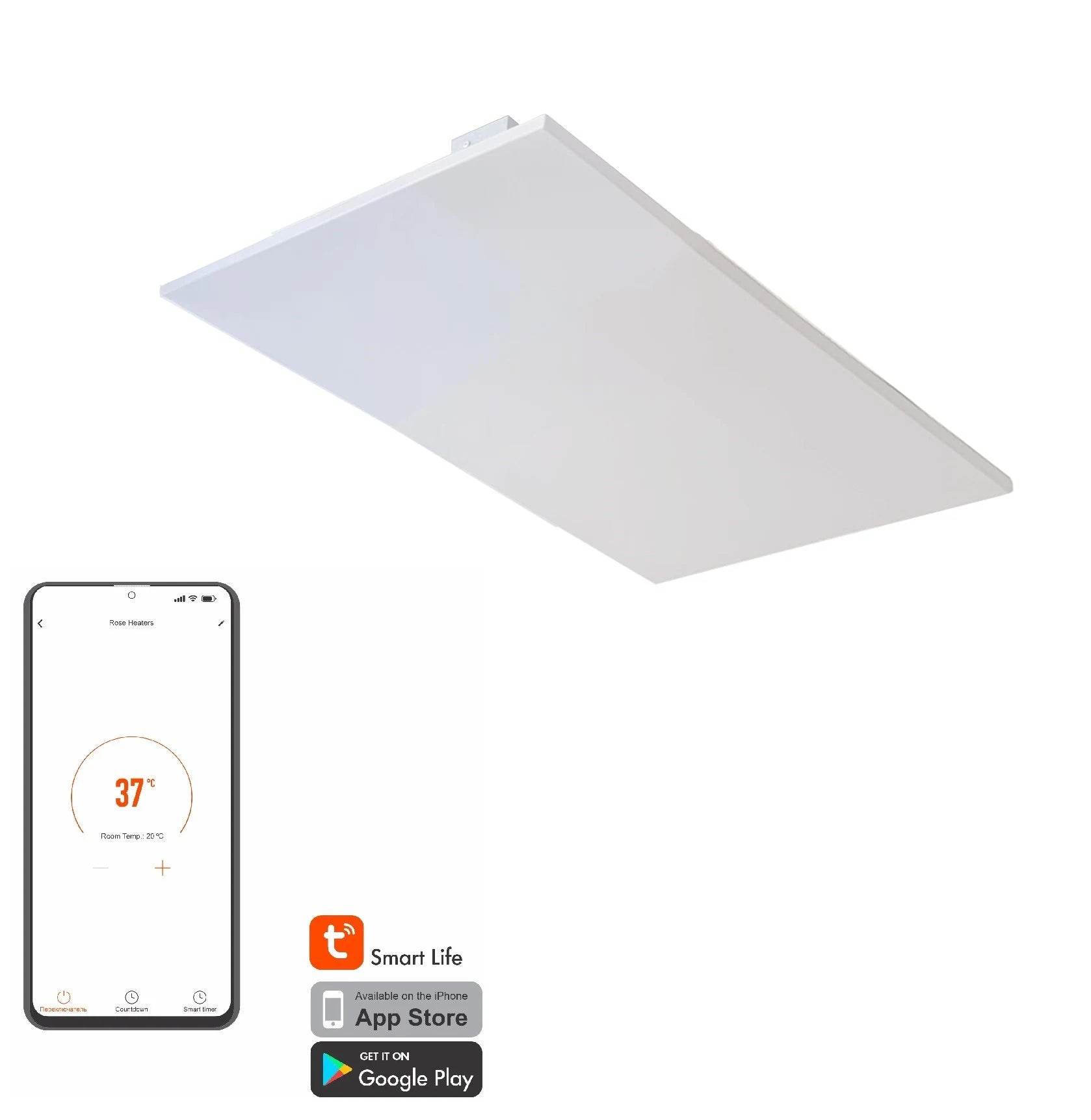

| ISHC4080WWIFI | 350W | 1.5A | 400 × 800 × 18mm | 5.1kg | 7m² |

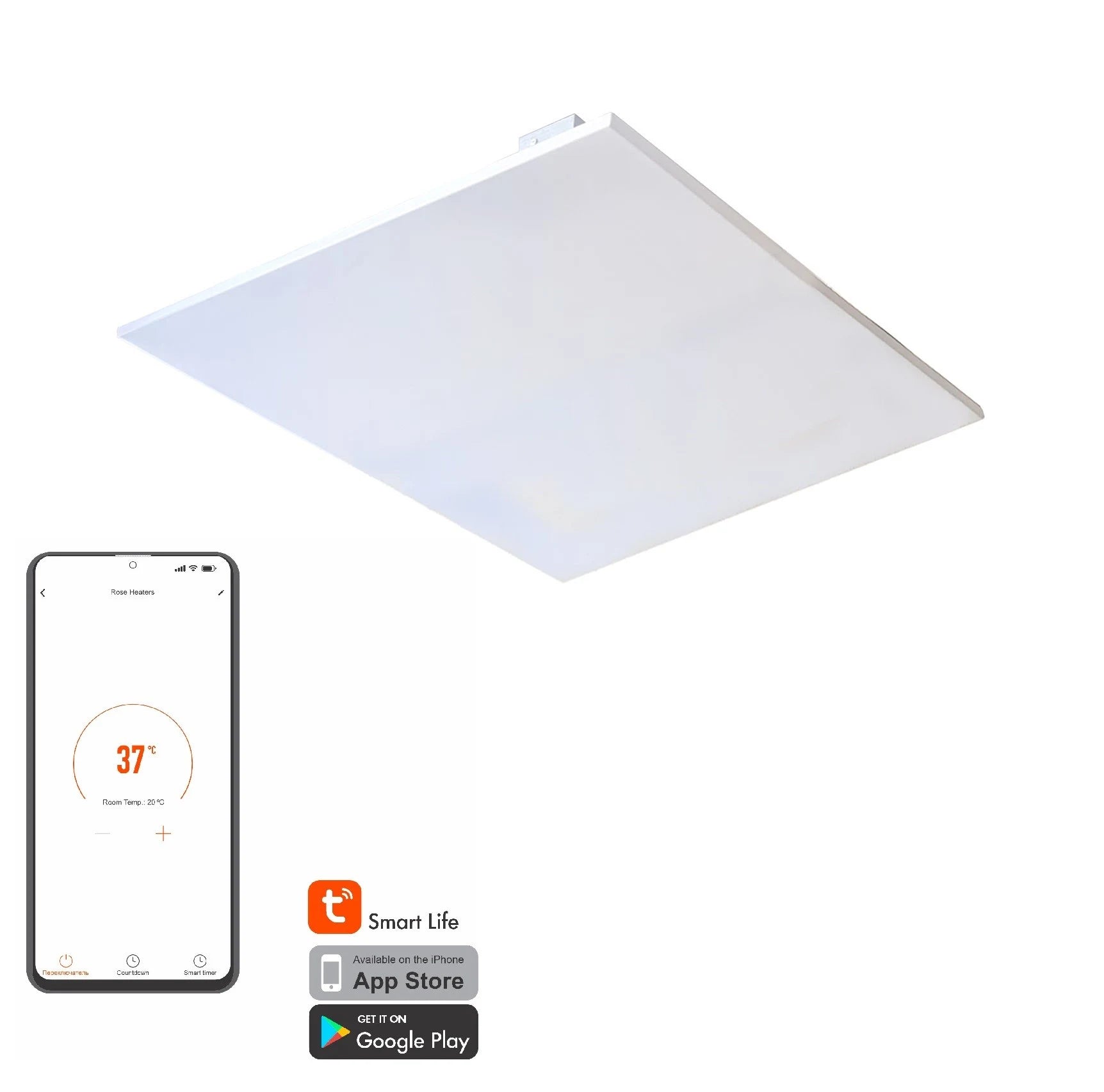

| ISHC6060WWIFI | 400W | 1.8A | 600 × 600 × 18mm | 5.8kg | 8m² |

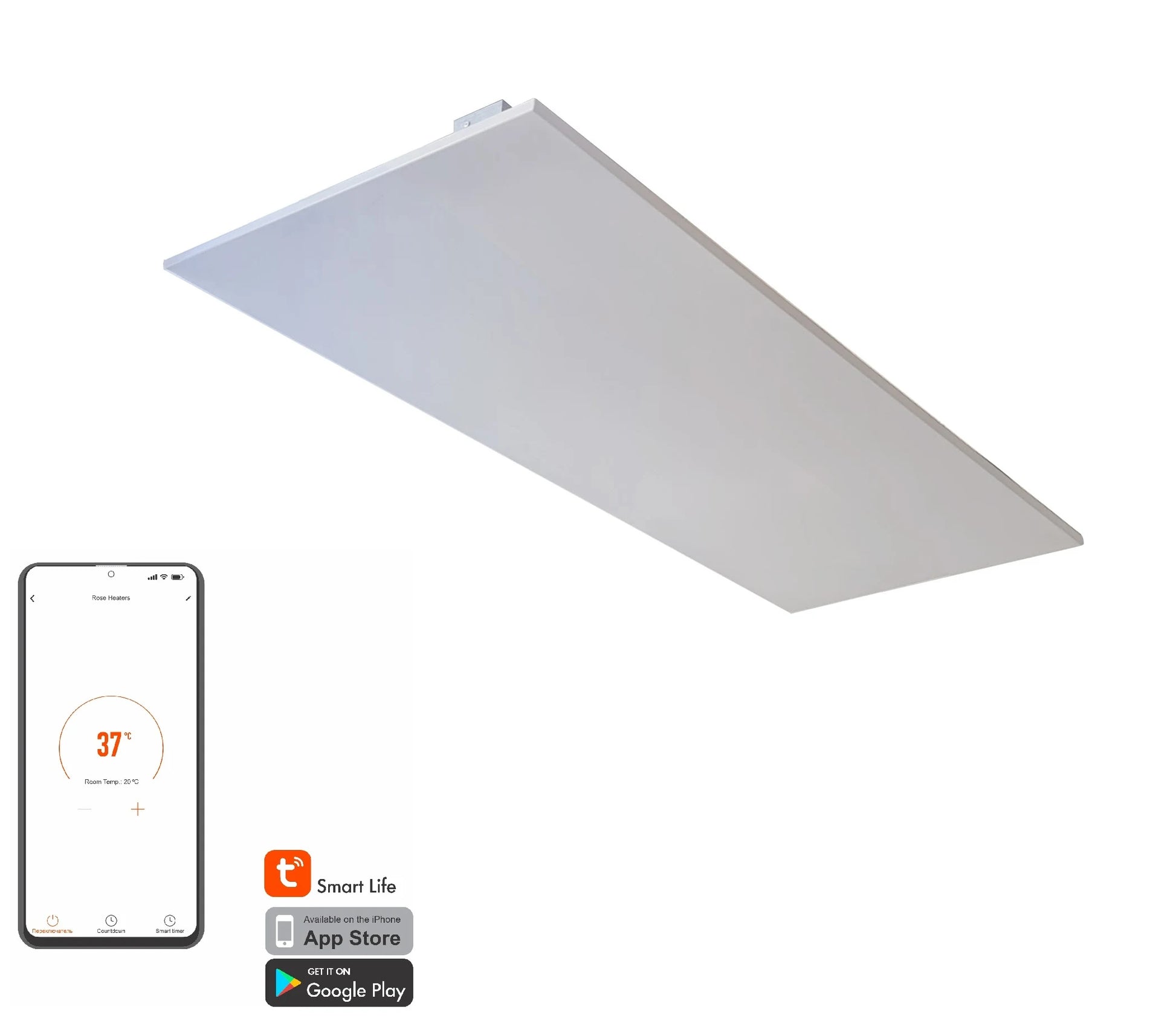

| ISHC5010WWIFI | 500W | 2.3A | 500 × 1000 × 18mm | 8kg | 12m² |
| ISHC6010WWIFI | 600W | 2.7A | 600 × 1000 × 18mm | 9.6kg | 14m² |

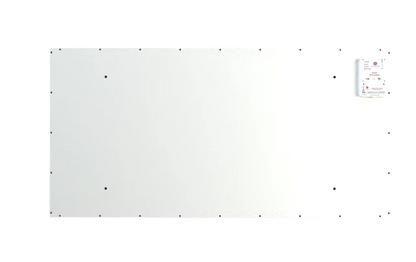

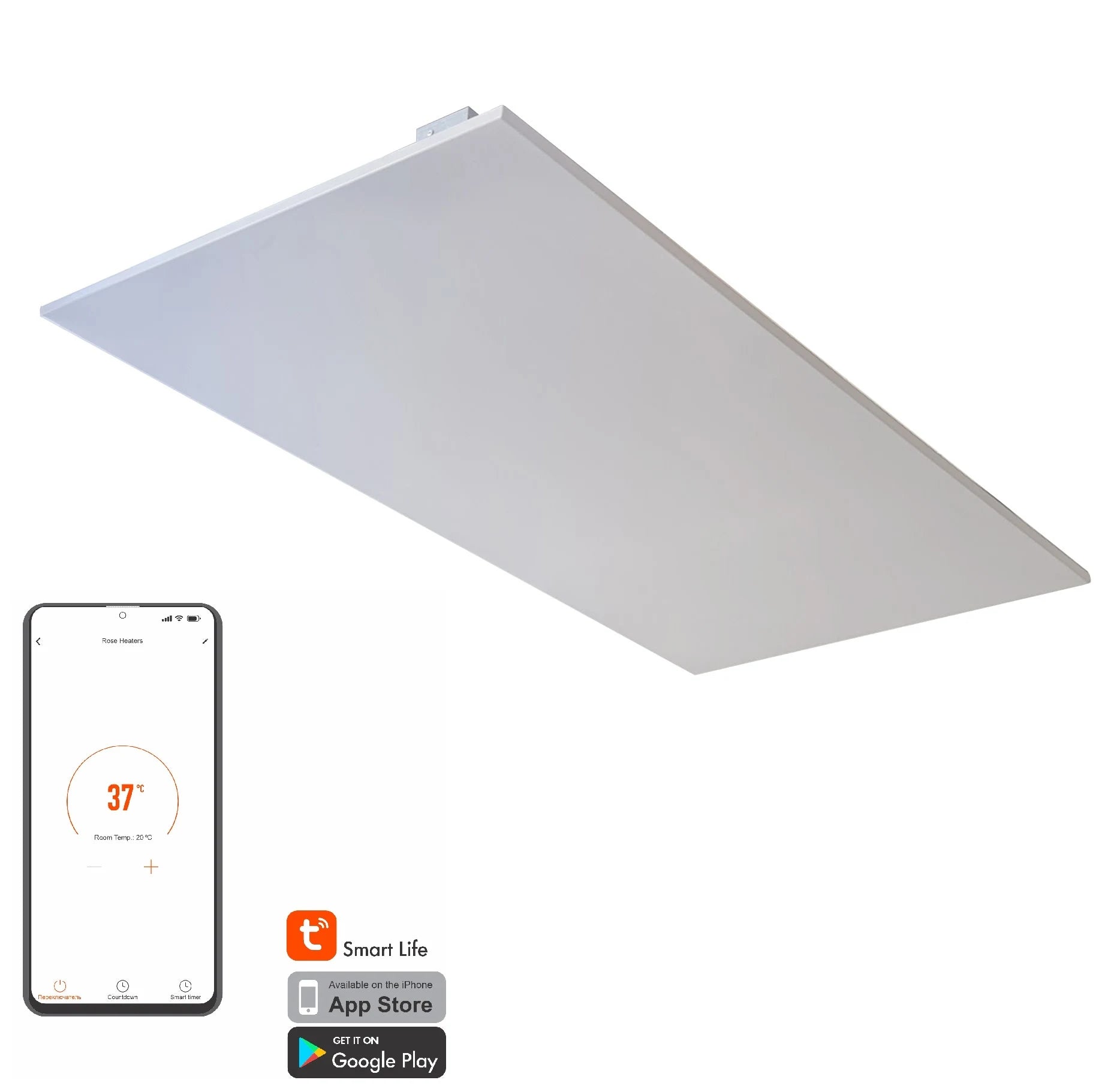

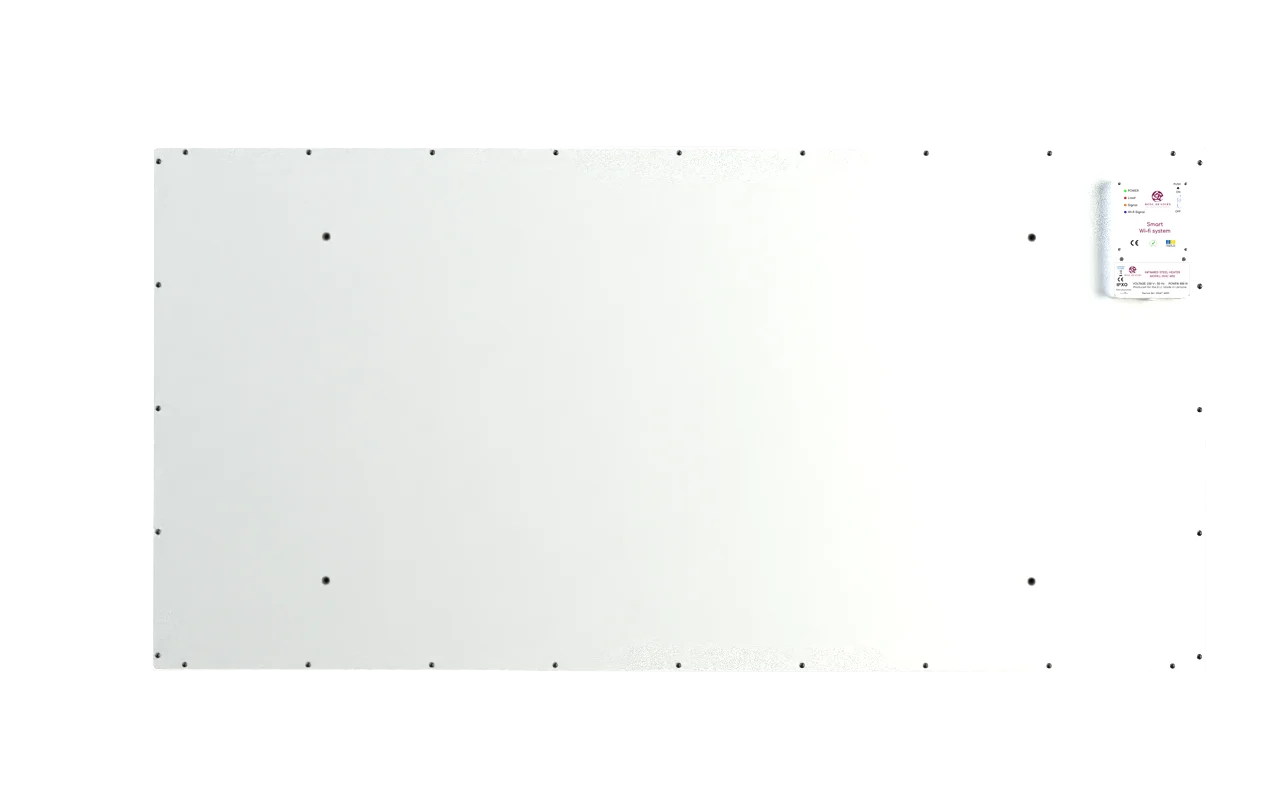

| ISHC6012WWIFI | 800W | 3.6A | 600 × 1200 × 18mm | 11.5kg | 16m² |

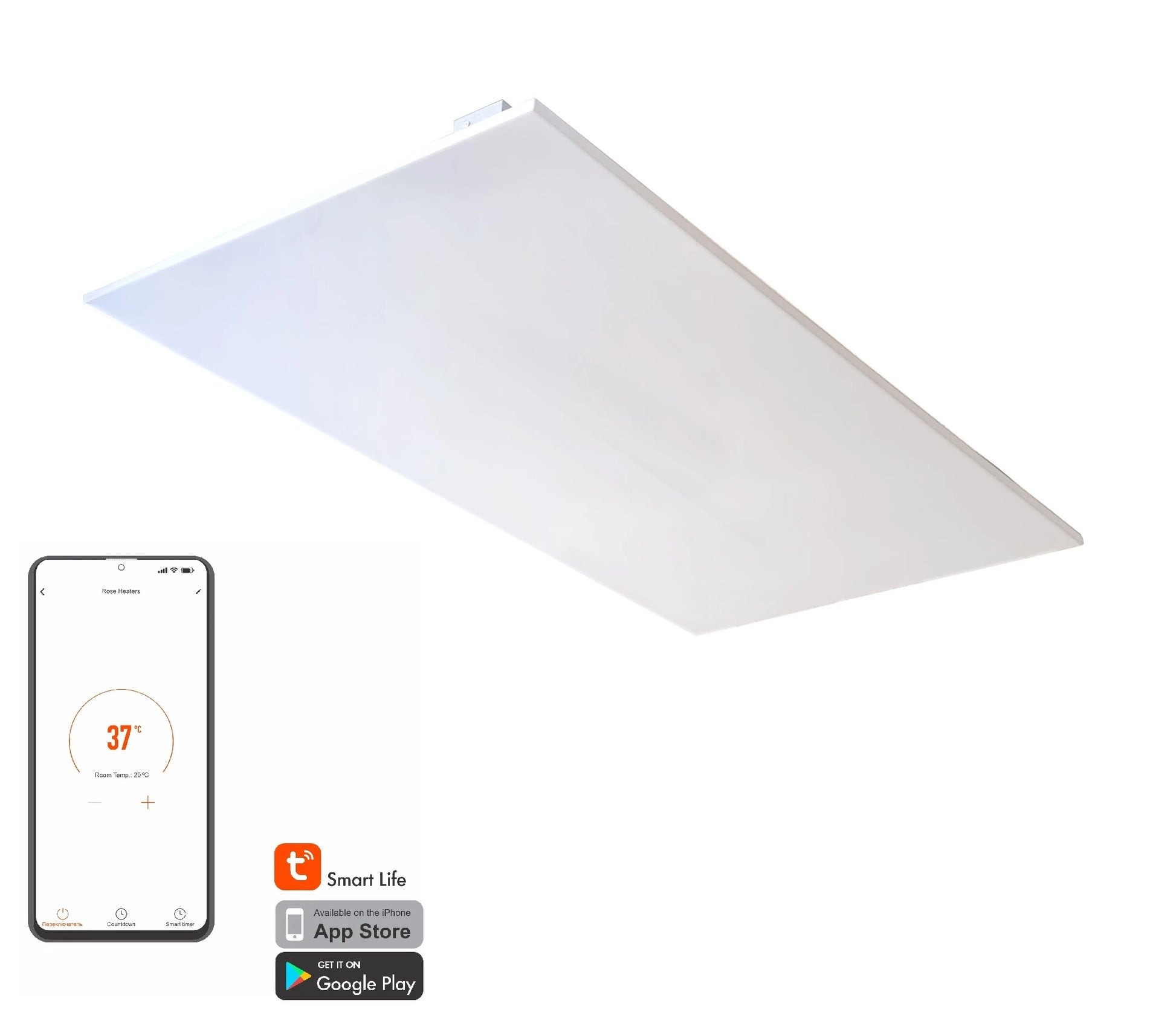

| ISHC7012WWIFI | 1000W | 4.5A | 700 × 1200 × 18mm | 13.3kg | 20m² |
*Heating Area: Coverage figures are indicative only and may vary depending on insulation, glazing, ceiling height, ventilation and overall building heat loss.
Installation: Maintain a minimum clearance of 20cm from panel edges and 50cm from the front of the heater.
Wiring: The power cable must remain perpendicular to the panel and must not touch the rear surface of the heater.
Control: All Lotus WiFi models include a built-in WiFi remote controlled thermostat as standard.
