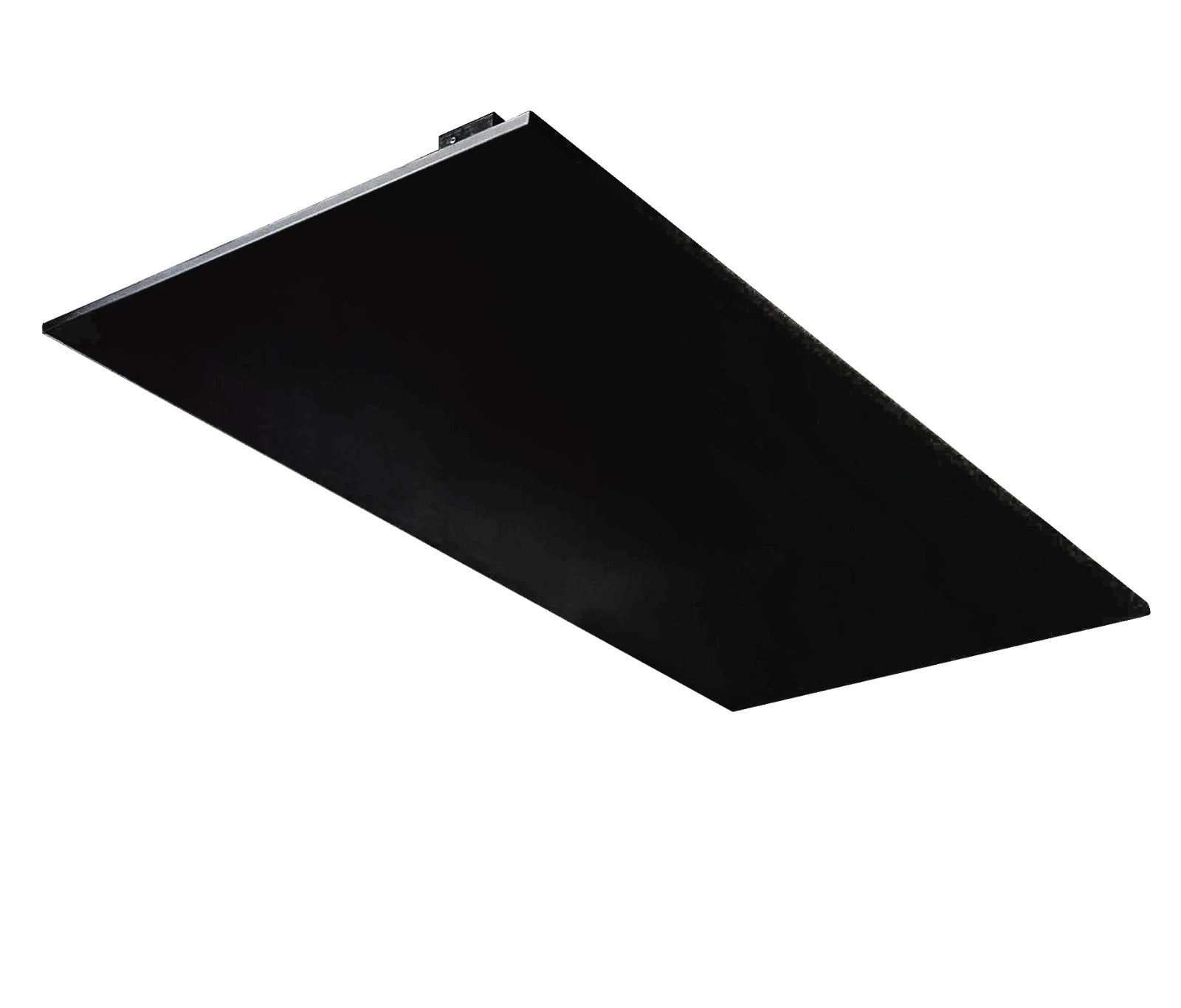

Far Infrared Nanocrystalline Ceiling Heating Panel
The Lotus Range is a premium far infrared ceiling heating solution designed for modern residential and commercial spaces. Available in 350W, 400W, 500W, 600W, 800W, and 1000W variants, these ultra-efficient nanocrystalline metal panels deliver silent, maintenance-free radiant heating with exceptional energy performance.
Engineered for ceiling-mounted installation with a slim 5cm low-profile gap, Lotus panels provide discreet, evenly distributed warmth by directly heating people, surfaces, and objects rather than heating the air.
Key Features
- Surface Temperature up to 120°C – Efficient radiant heat output for fast and effective room warming
- Fast Heat-Up Performance – Reaches optimal operating temperature in approximately 10 minutes
- Ultra-Efficient Nanocrystalline Heating Element – Up to 99% energy efficiency
- Silent Operation – Completely noise-free heating and cooling cycle
- Long Lifespan – Durable construction with up to 30 years service life
- Heavy-Duty Steel Construction – Heat-resistant powder-coated finish for durability and corrosion resistance
- European Safety Certified – TÜV tested and compliant with European safety standards
- 5-Year Gold Replacement Warranty – Full manufacturer-backed coverage
- Ceiling Mount Kit Included – Supplied with 4 heavy-duty brackets for secure installation
- Hardwired Connection – 1.2m cable for connection to thermostat or fused spur (no plug supplied)
Why Choose Infrared Heating?
Lotus infrared panels use advanced far infrared technology to heat objects, surfaces, and occupants directly rather than warming the air. This creates a natural, sun-like warmth that is stored within floors, walls, and furnishings before being gently re-radiated throughout the room.
Unlike convection heaters that create uneven temperatures (hot air at the ceiling and cold zones at floor level), infrared heating provides a balanced and comfortable environment at living height.

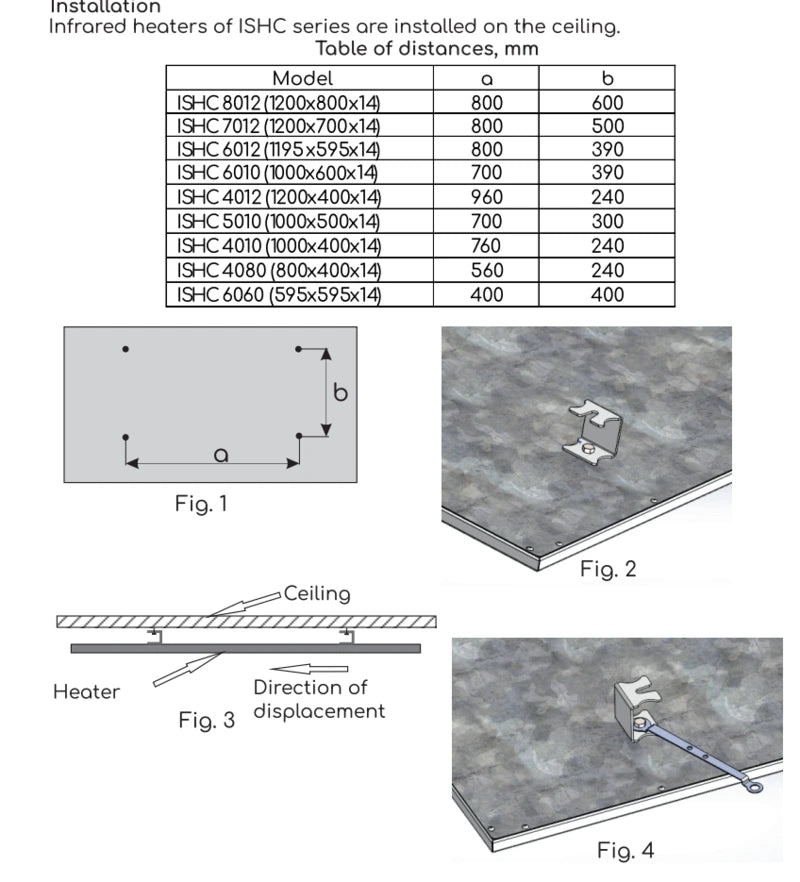

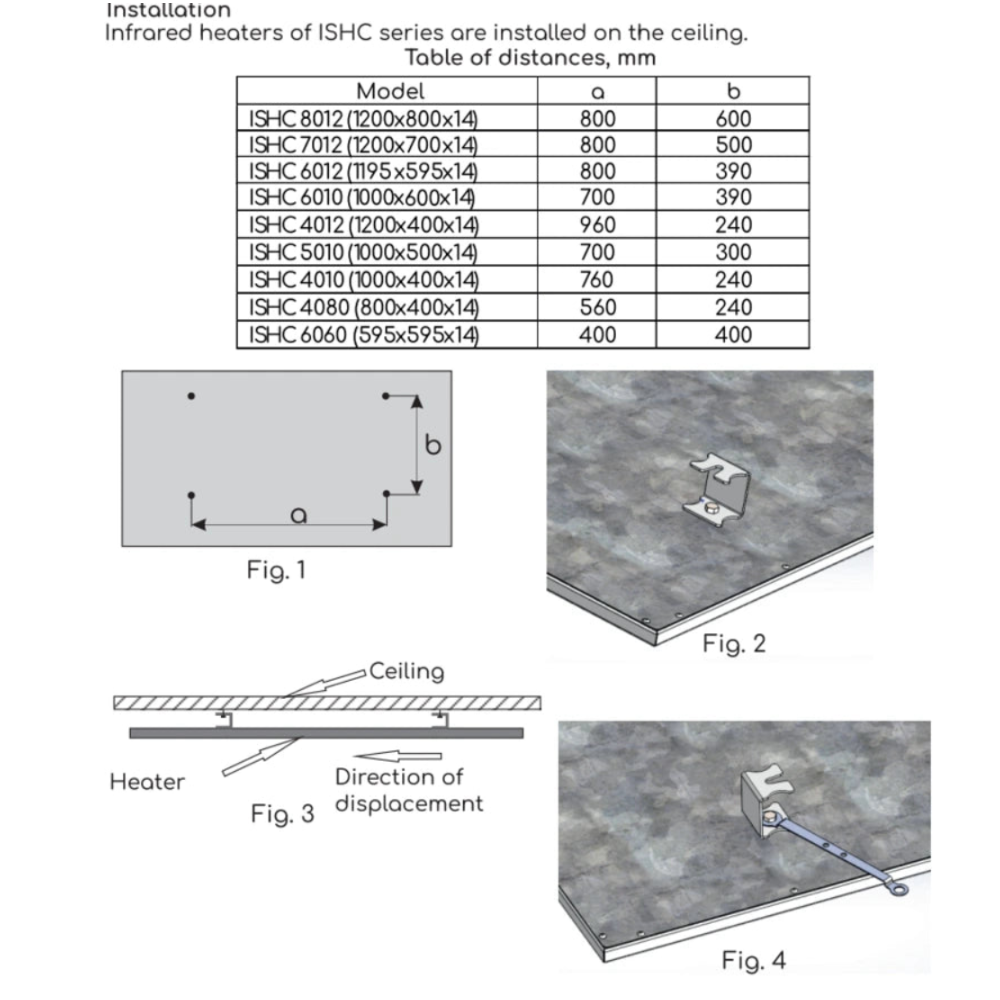

Design & Installation
Designed specifically for ceiling mounting, the Lotus Range delivers wide, even heat distribution while maintaining a discreet, space-saving profile.
- Minimum 5cm ceiling gap required for mounting clearance
- Minimum 20cm clearance from sides and rear to any walls or objects
- Minimum 50cm clearance from the front face of the panel
- Power cable must remain perpendicular to the heater and must not touch the rear surface
All units are designed for professional hardwired installation via thermostat or fused spur.
Recommended Applications
- Residential homes and apartments
- Offices and commercial interiors
- Retail environments and showrooms
- Hospitality spaces including cafés and hotels
- Low-energy retrofit heating upgrades
Lotus Instructions Manual
Specifications
| Technology | Far Infrared Nanocrystalline Heating Panel |
|---|---|
| Surface Temperature | Up to 120°C |
| Efficiency | Up to 99% |
| Cable Length | 1.2m (No plug supplied) |
| Control | Requires external thermostat or fused spur connection |
| Mounting | Ceiling mount with 5cm clearance gap |
| Included Fixings | 4 heavy-duty ceiling mounting brackets |
| Safety Certification | CE Certified, TÜV Approved (European Standards) |
| Construction | High-tension steel with heat-resistant powder coating |
| Warranty | 5 Years Gold Replacement Warranty |
Available Models
| Model | Wattage | Current | Dimensions | Weight | Heating Area* |
|---|---|---|---|---|---|

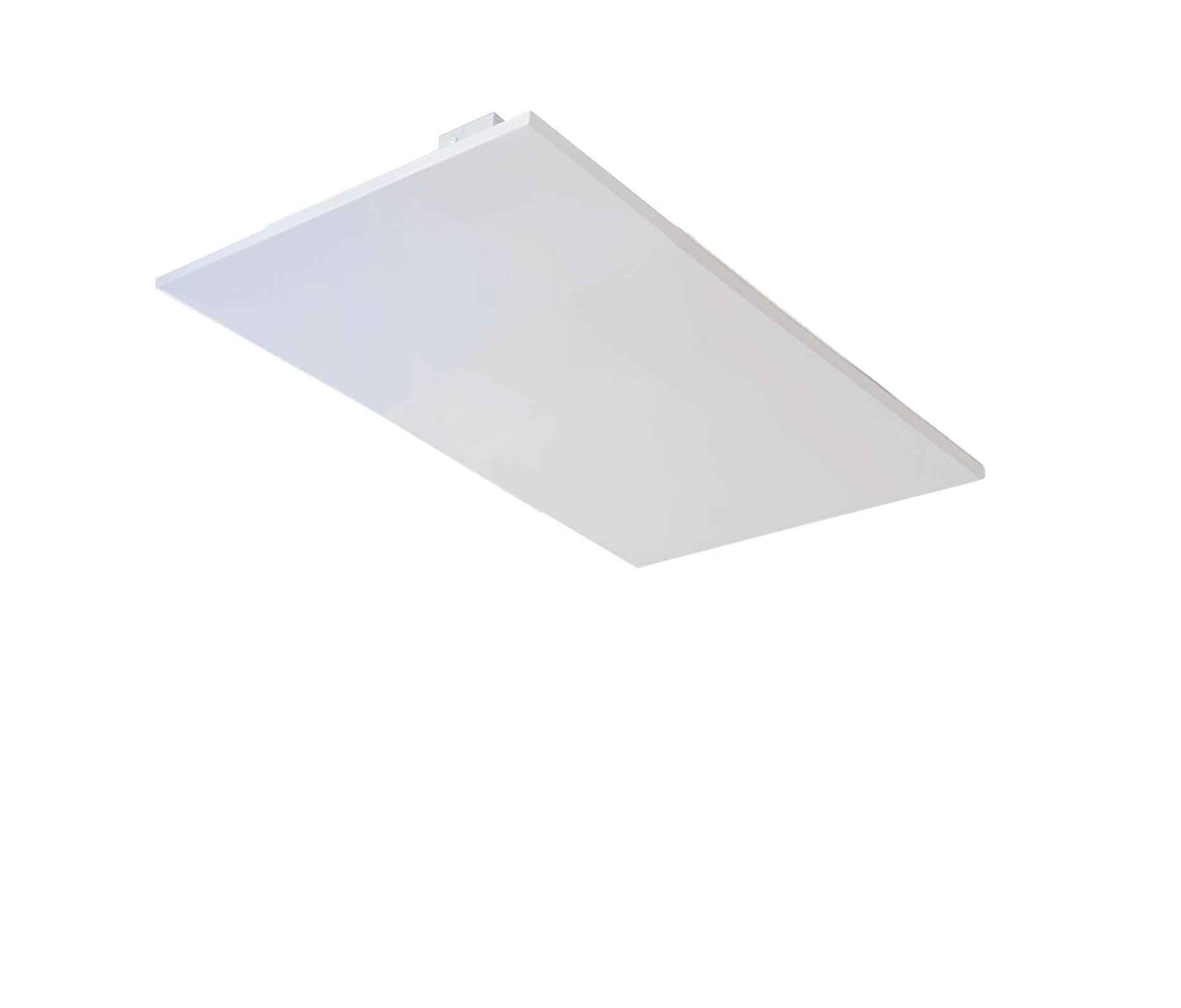

| ISHC4080 W | 350W | 1.8A | 800 × 400 × 14 mm | 5.1kg | 7m² |

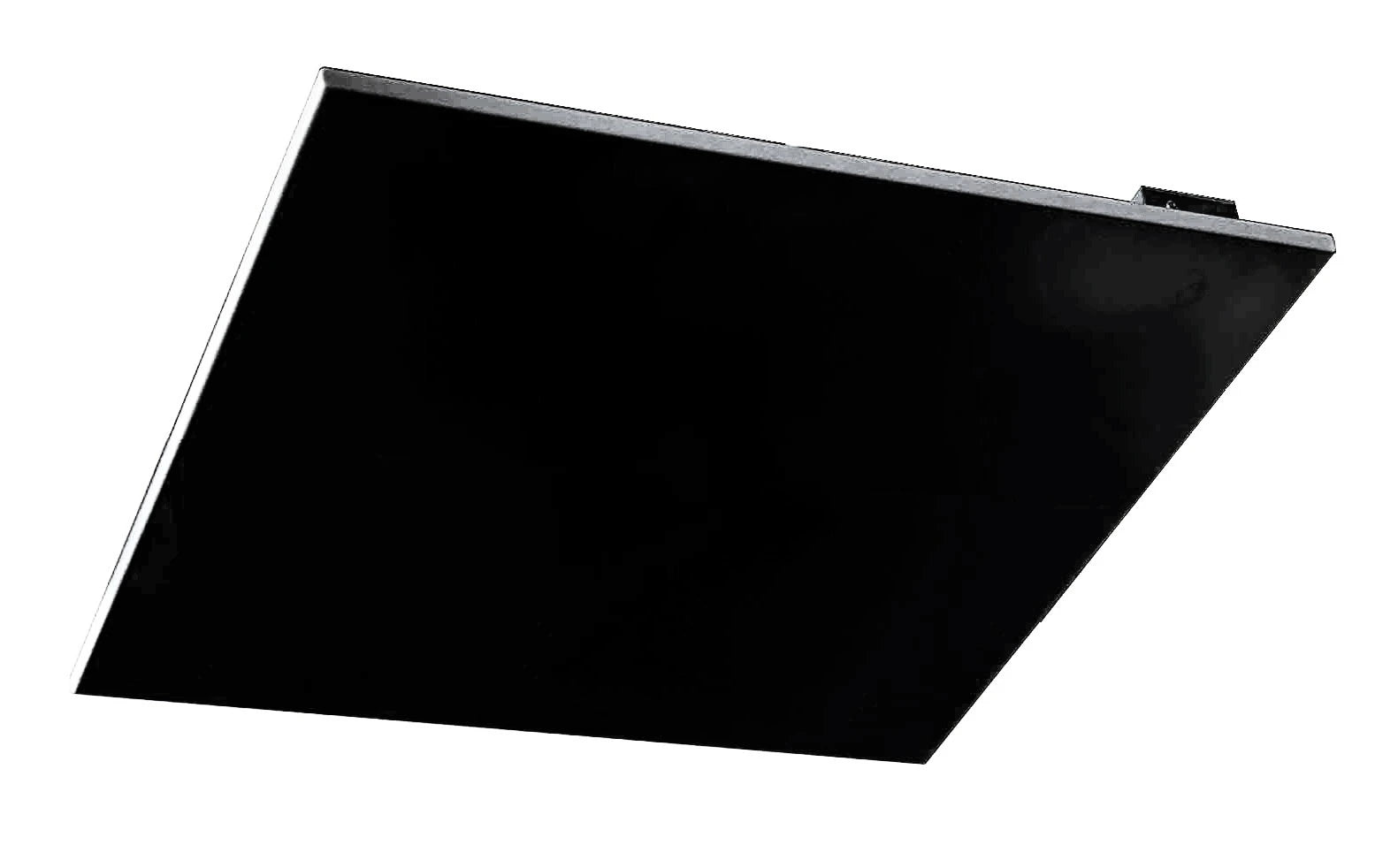

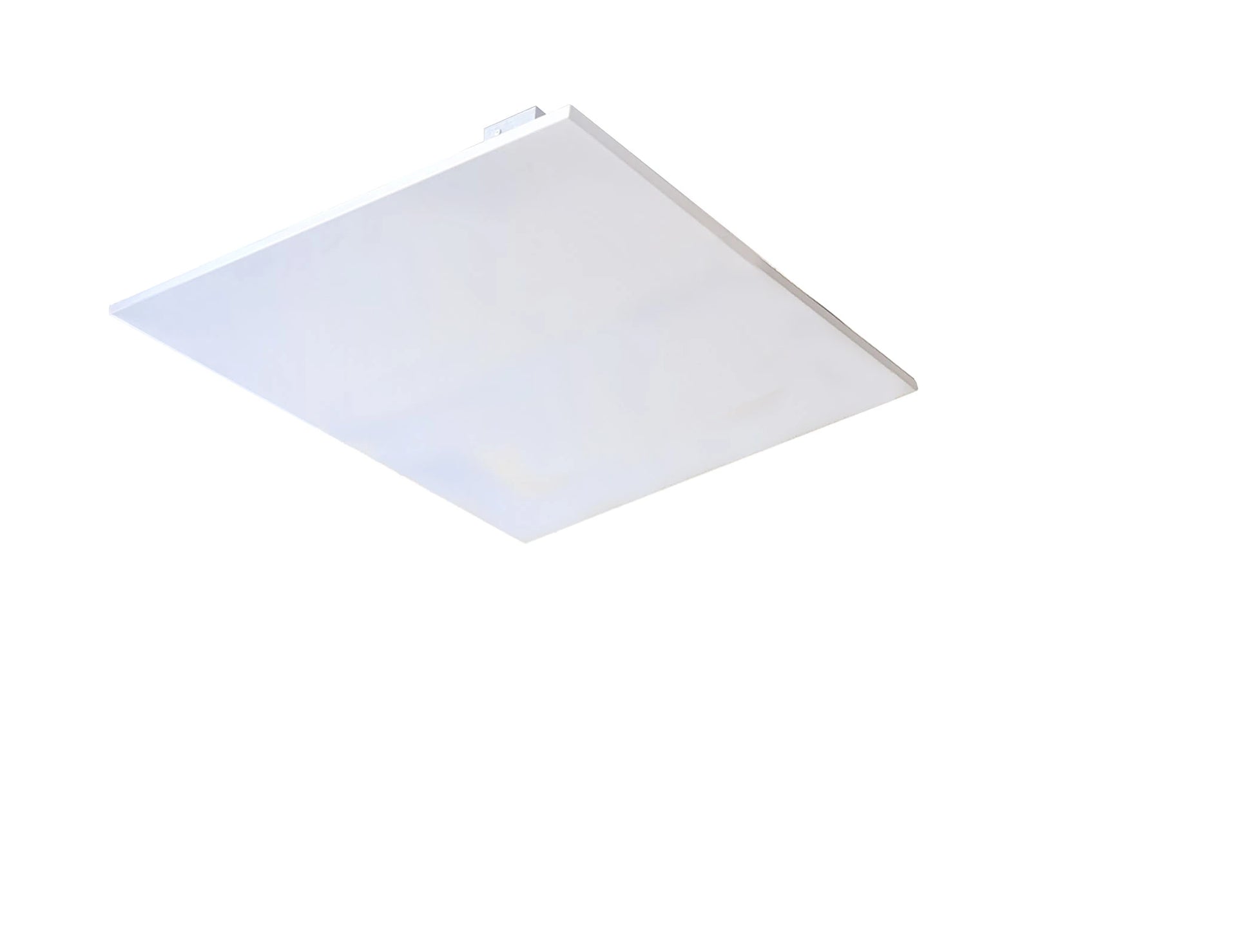

| ISHC6060 (W/B) | 400W | 2A | 595 × 595 × 14 mm | 5.8kg | 8m² |

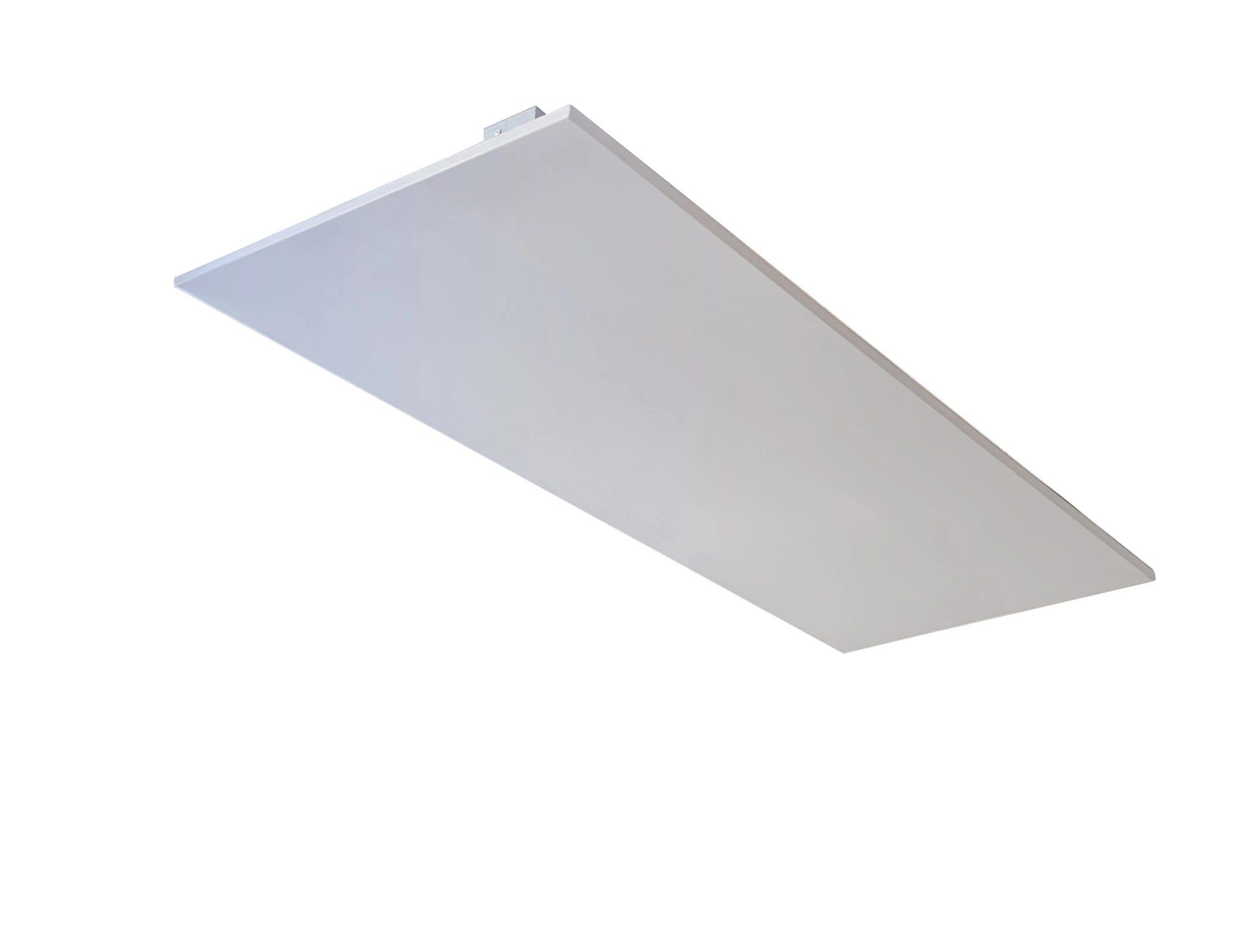

| ISHC5010 W | 500W | 2.3A | 1000 × 5000 × 14 mm | 8kg | 10m² |
| ISHC6010 W | 600W | 2.7A | 1000 × 6000 × 14 mm | 9.6kg | 12m² |

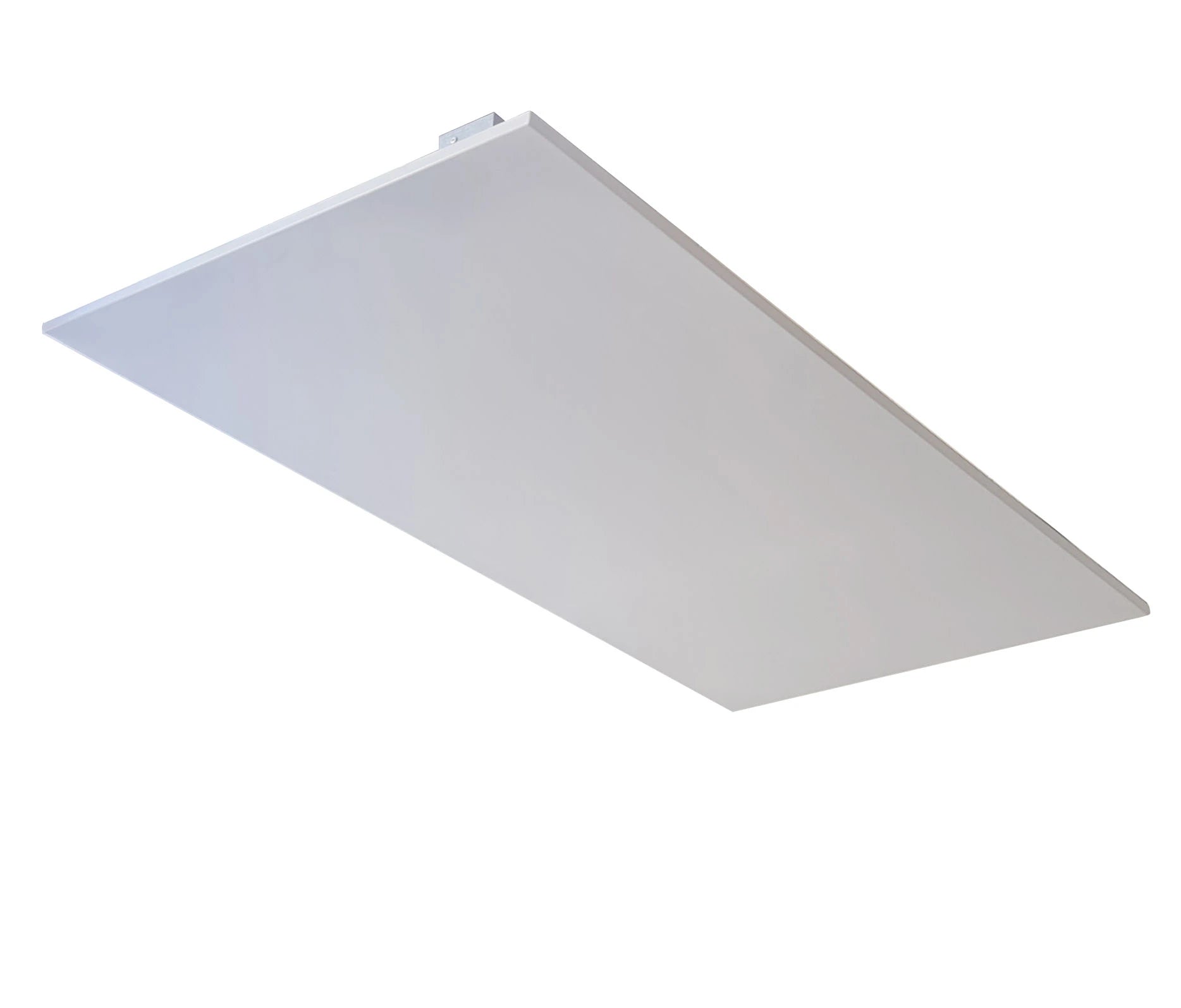

| ISHC6012 (W/B) | 800W | 3.6A | 1200 × 600 × 14 mm | 11kg | 16m² |

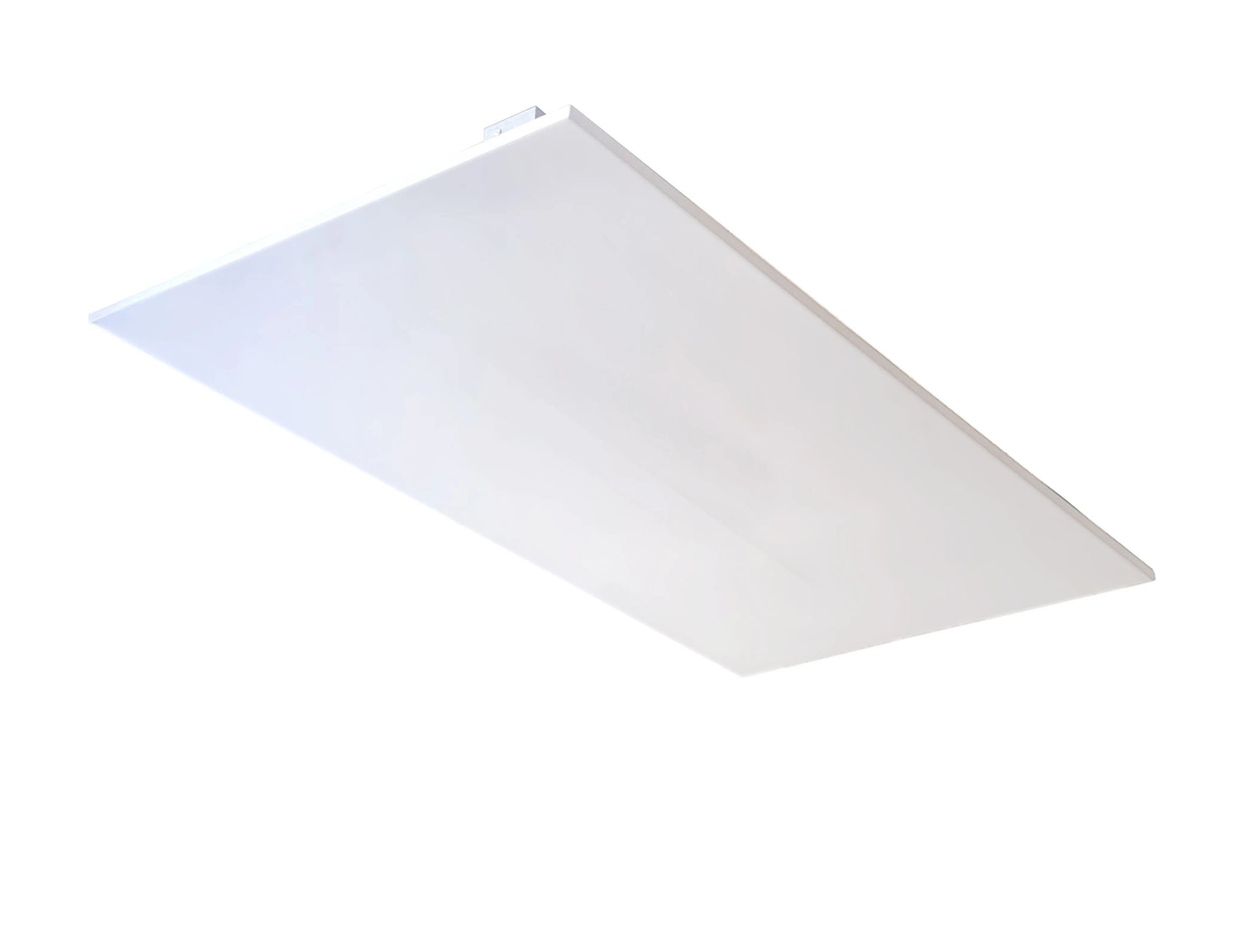

| ISHC7012 W | 1000W | 4.5A | 1200 × 700 × 14 mm | 13kg | 20m² |
*Heating Area: Coverage figures are indicative only and may vary depending on insulation, glazing, room heat loss, ceiling height and building construction.
**Mounting Height: Recommended mounting heights are based on achieving approximately 20°C in insulated environments. Adjustments may be required depending on insulation quality and target room temperature.

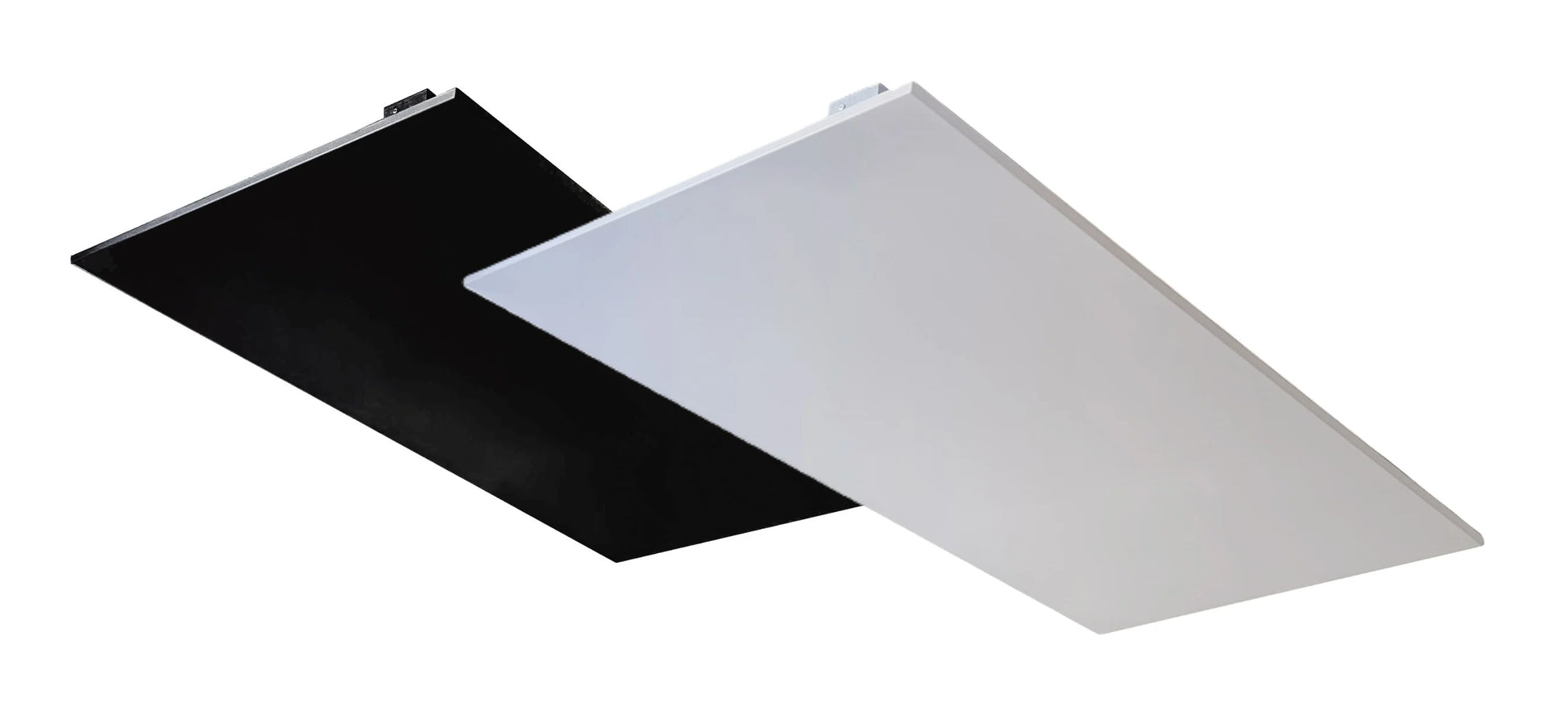

Colour Codes: Add suffix W for White or B for Black (Example: ISHC6060W).
