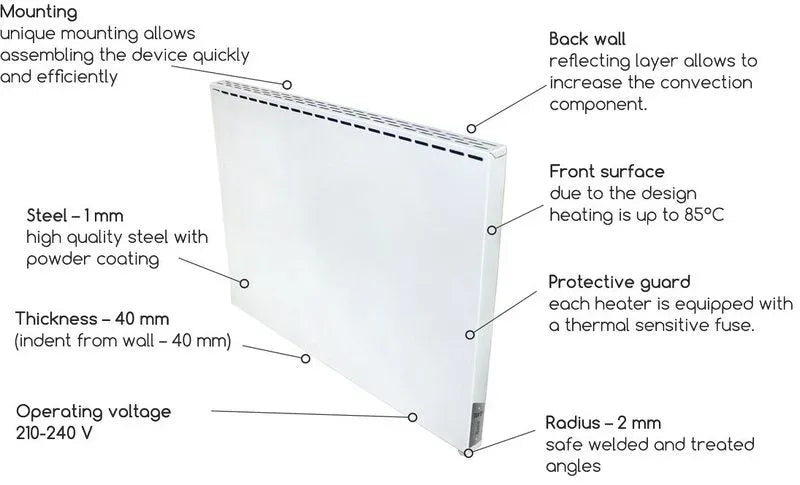

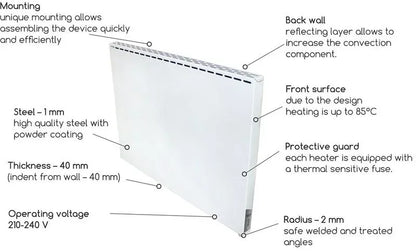

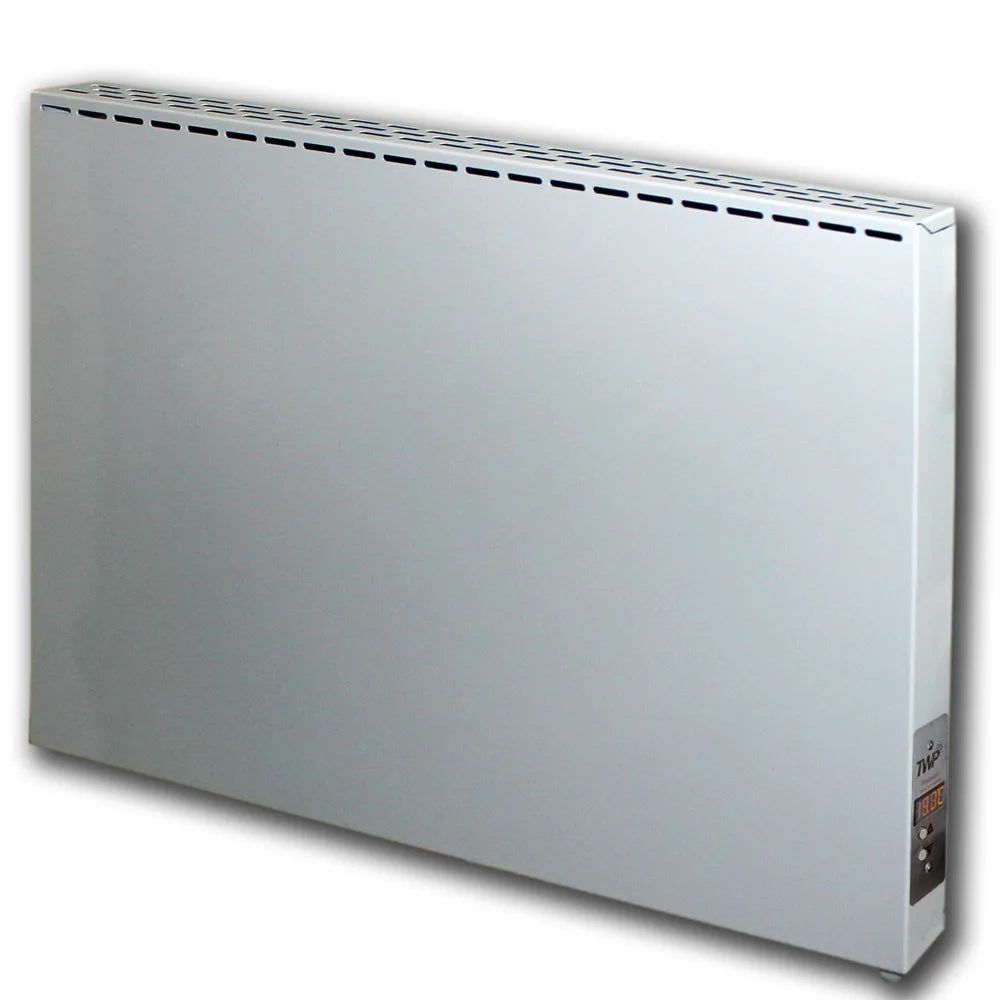

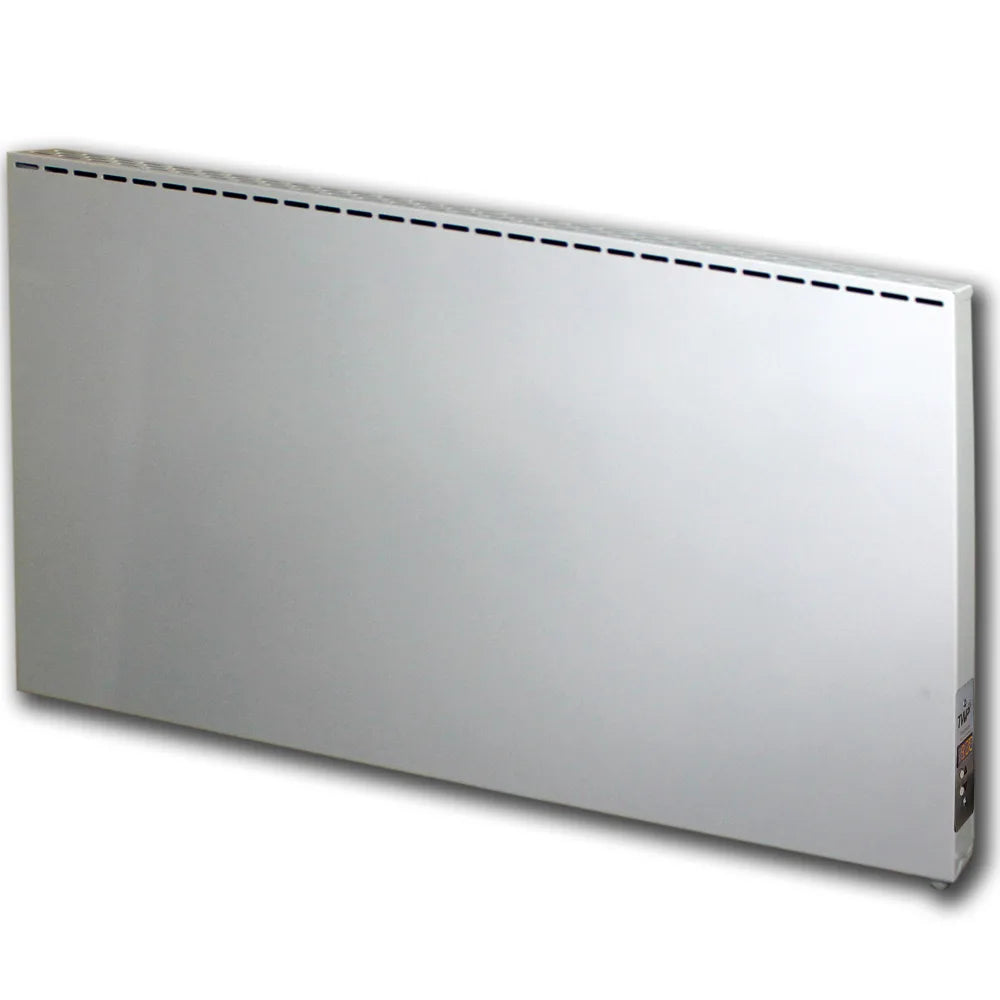

Hybrid Infrared Thermal Wave Panel with Built-In Digital Thermostat
The Jasmine Range combines advanced far infrared heating with gentle natural air convection to deliver faster, more comfortable warmth throughout your space. Unlike traditional electric heaters that rely solely on convection, Thermal Wave Panel (TWP) technology provides both radiant heat and passive warm air circulation for improved efficiency and comfort.
Available in 300W, 500W, 700W, and 1000W models, Jasmine panels are designed for homes, offices, conservatories, bedrooms, and commercial environments. Their slim, compact design makes them ideal for installation beneath windows or along low walls where space is limited.
Key Features
- Hybrid Heating Technology – Combines infrared radiant heat with natural convection heating for faster room warm-up.

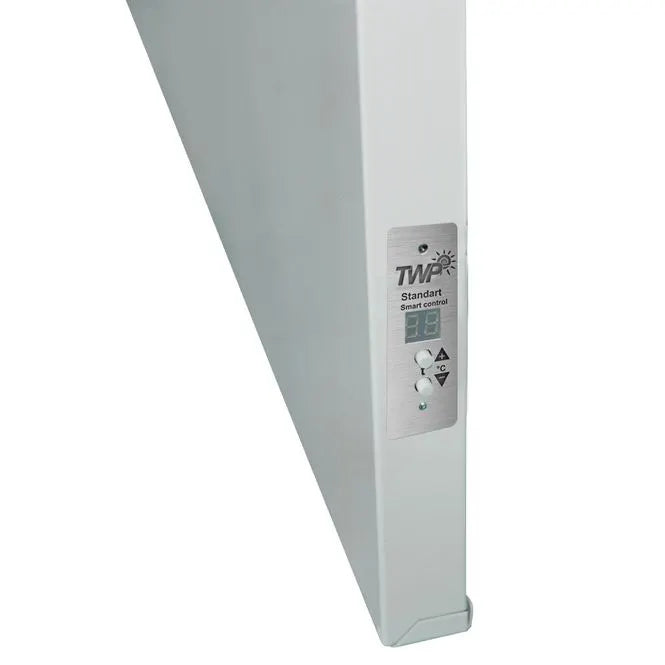

- Built-In Digital Thermostat – Programmable thermostat automatically maintains your chosen room temperature.
- Energy Efficient Operation – Thermal Wave technology can reduce energy consumption by up to 15–30% compared to conventional electric heating.
- Plug & Play Installation – Supplied with a 1.7m power cable and UK 3-pin plug.
- Automatic Temperature Control – Cycles on and off as required to maintain comfort while minimising energy usage.
- Compact Low-Profile Design – Perfect for discreet installation beneath windows or on low walls.
- Surface Temperature up to 85°C – Provides effective radiant heat output with thermostat-controlled operation.
- Maintenance-Free Heating – No moving parts, servicing, or ongoing maintenance requirements.
- Environmentally Friendly – Clean electric heating with efficient energy use.
- Complete Installation Kit – Includes wall mounting brackets and fixing screws.
- European Safety Certified – Manufactured to European safety standards and TÜV certified.
- Long Warranty – 5 years on the infrared panel and 2 years on the thermostat.
Why Choose a Thermal Wave Panel?
Jasmine Thermal Wave Panels combine two heating methods into one appliance. Infrared heat warms people, furniture, floors, and walls directly, while the panel's natural convection effect gently circulates warm air throughout the room.
This hybrid approach creates a comfortable indoor environment that heats up quickly, maintains warmth efficiently, and can reduce overall energy consumption compared to traditional electric heaters.

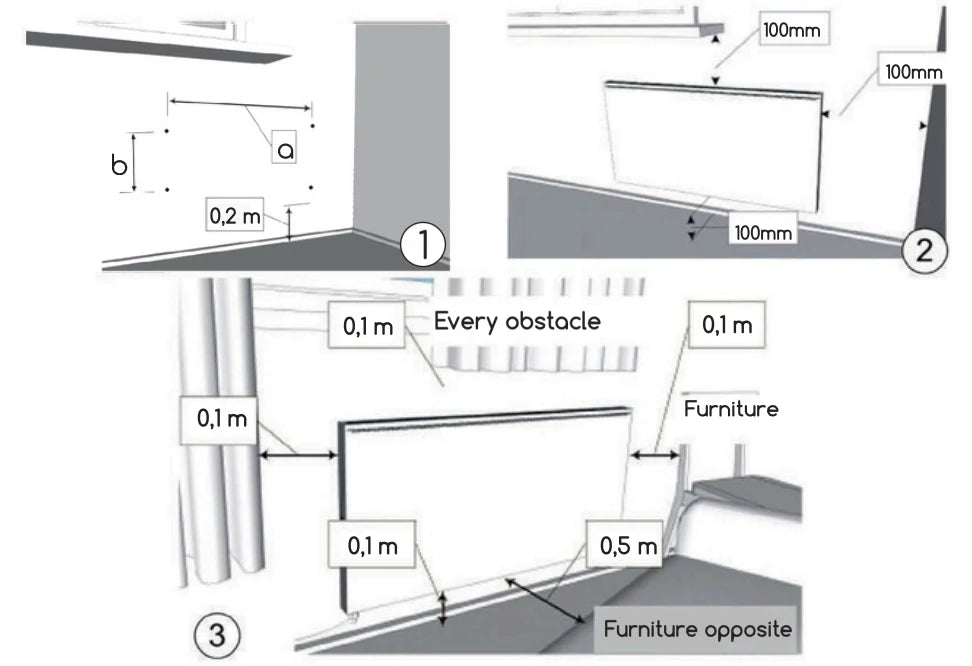

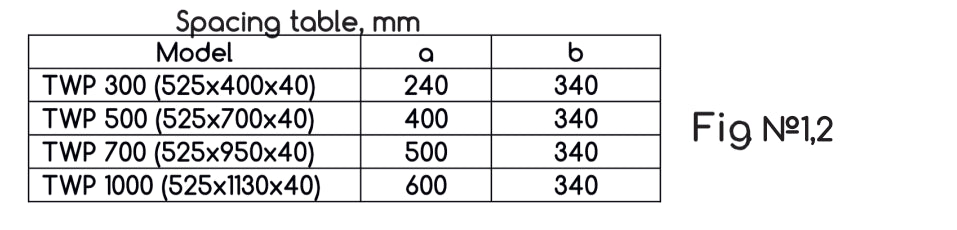

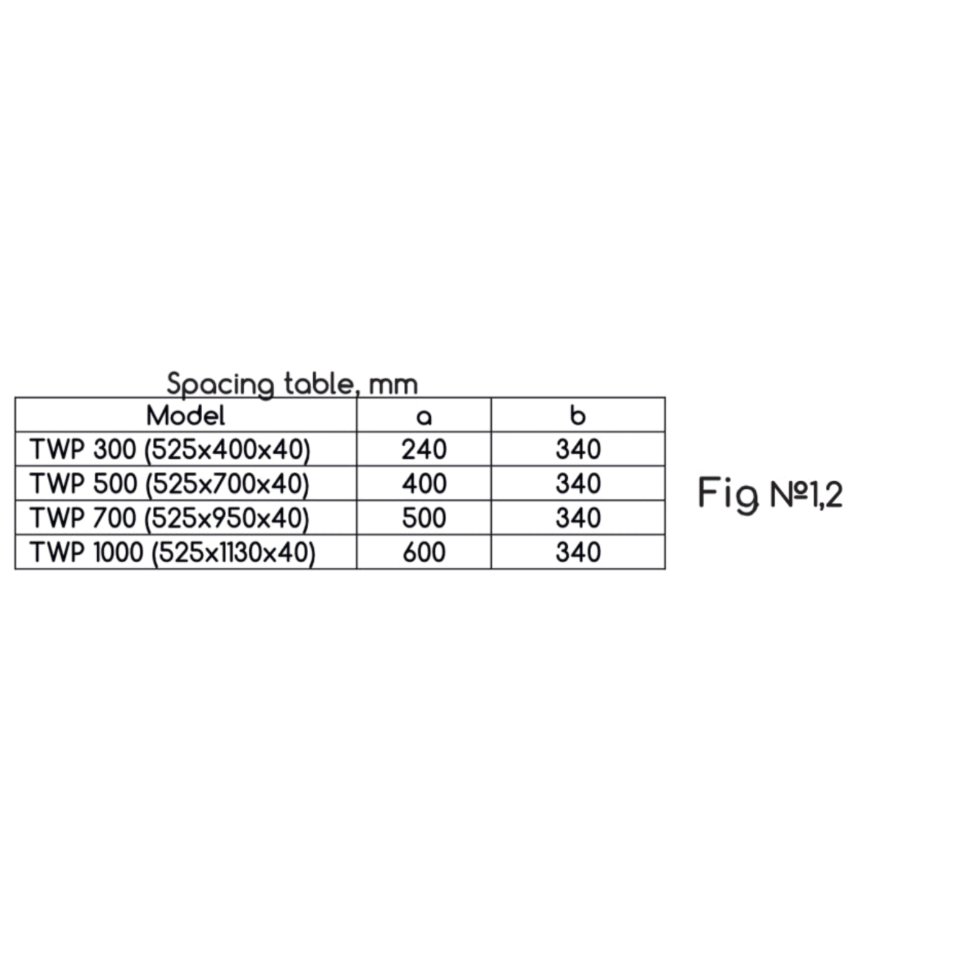

Positioning & Installation
For optimum performance, avoid positioning the heater directly facing windows or external doors. Directing heat into the room allows walls, floors, furniture, and other surfaces to absorb warmth and gradually release it back into the space.
- Maintain a minimum 10cm clearance between the heater and any walls, furniture, or obstructions.
- Ideal for installation beneath windows or along low walls.
- Supplied with a 1.7m power cable and UK plug for quick installation.
- IPX0 rated – Must be installed outside bathroom splash zones and away from direct water exposure.
Please refer to the installation instructions for full safety and mounting requirements.
Recommended Applications
- Living rooms, bedrooms and hallways.
- Home offices and commercial offices.
- Conservatories and garden rooms.
- Apartments and residential properties.
- Supplementary or primary heating applications.
Specifications
| Product Type | Hybrid Infrared Thermal Wave Panel Heater (TWP) |
|---|---|
| Available Outputs | 300W, 500W, 700W, 1000W |
| Control | Built-In Digital Thermostat |
| Heating Technology | Far Infrared + Passive Convection Heating (No Fan) |
| Surface Temperature | Up to 85°C |
| Cable Length | 1.7m UK Plug Cable |
| Voltage | 220–240V / 50Hz |
| IP Rating | IPX0 |
| Included Fixings | Wall Brackets and Installation Hardware |

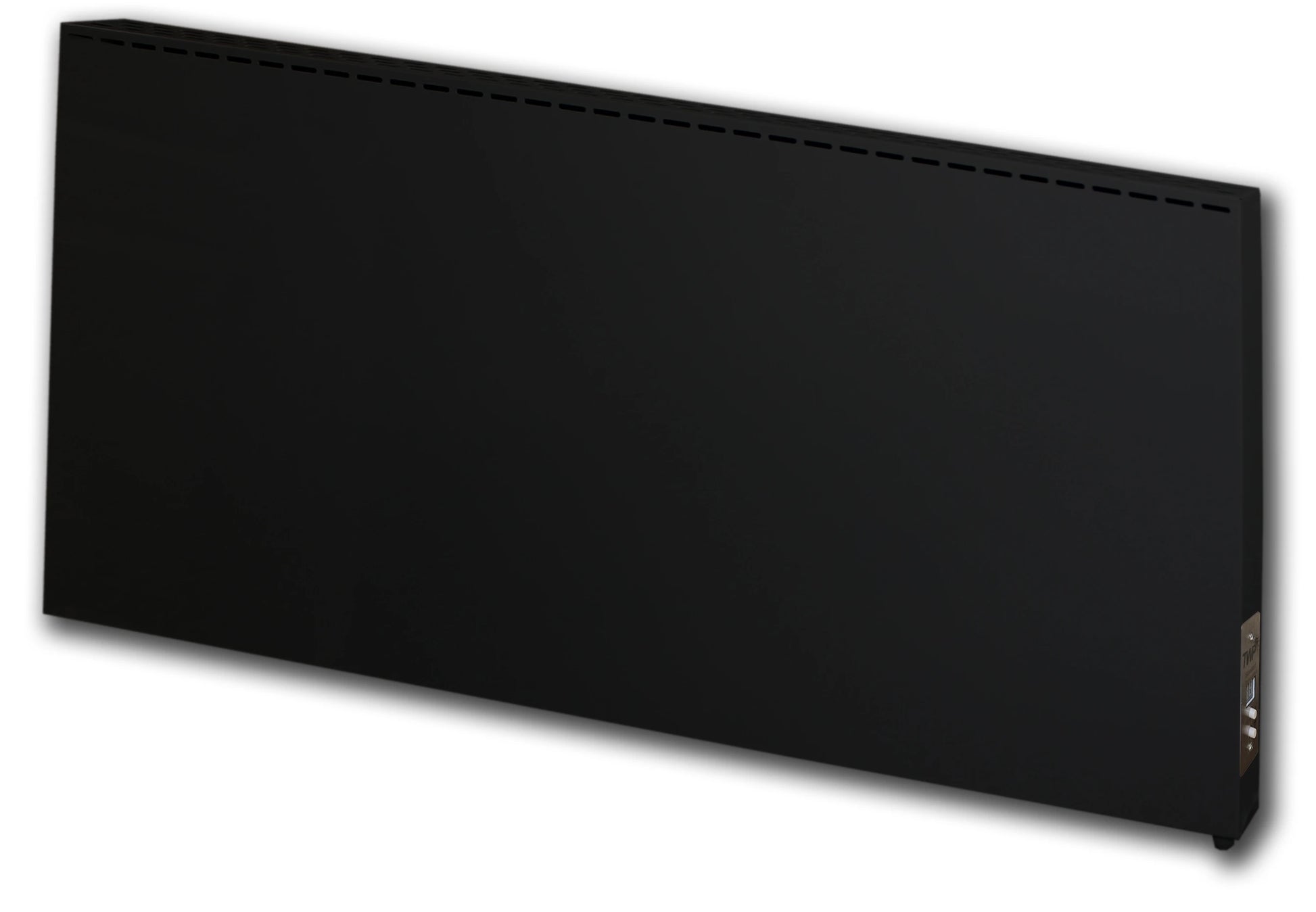

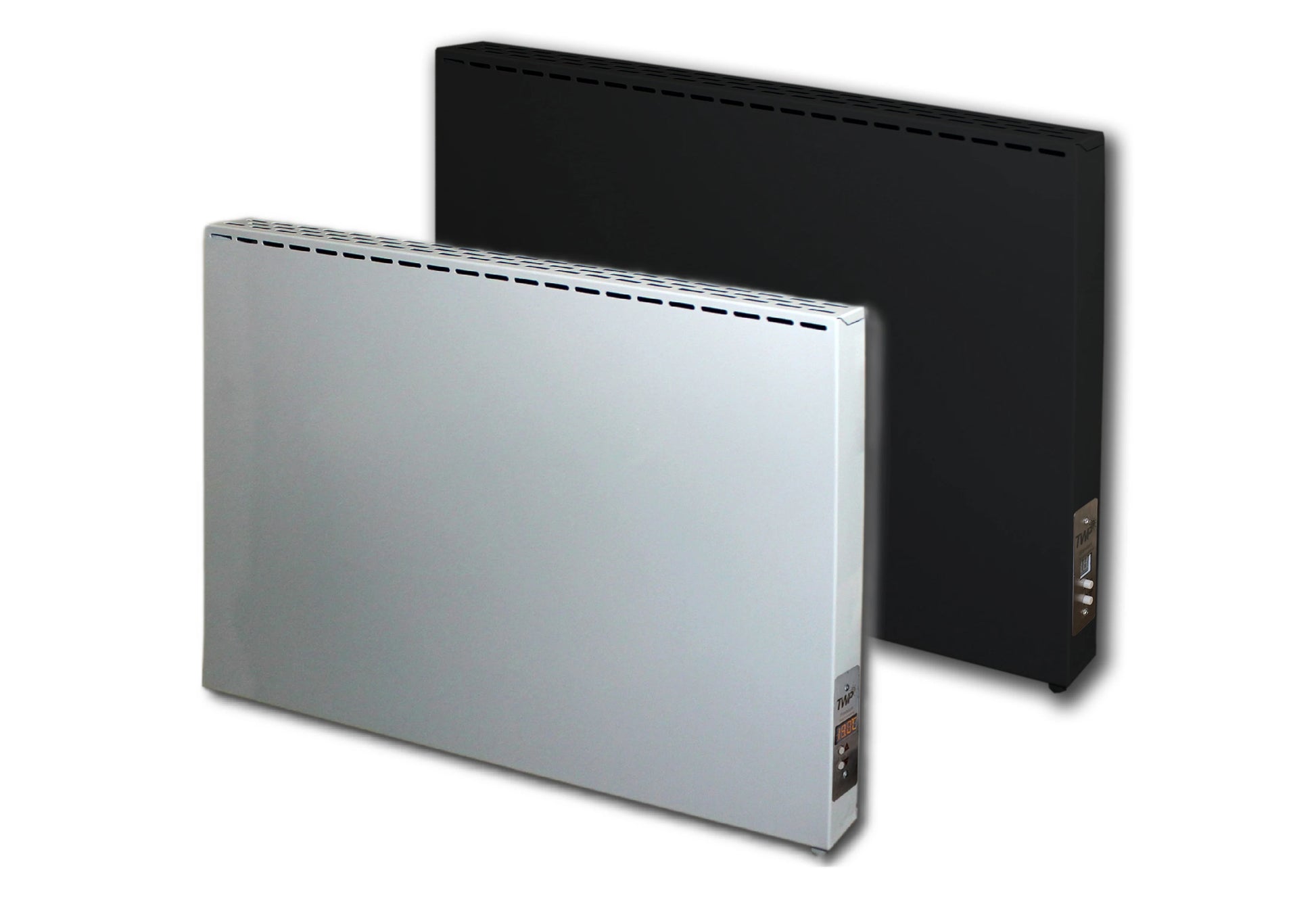

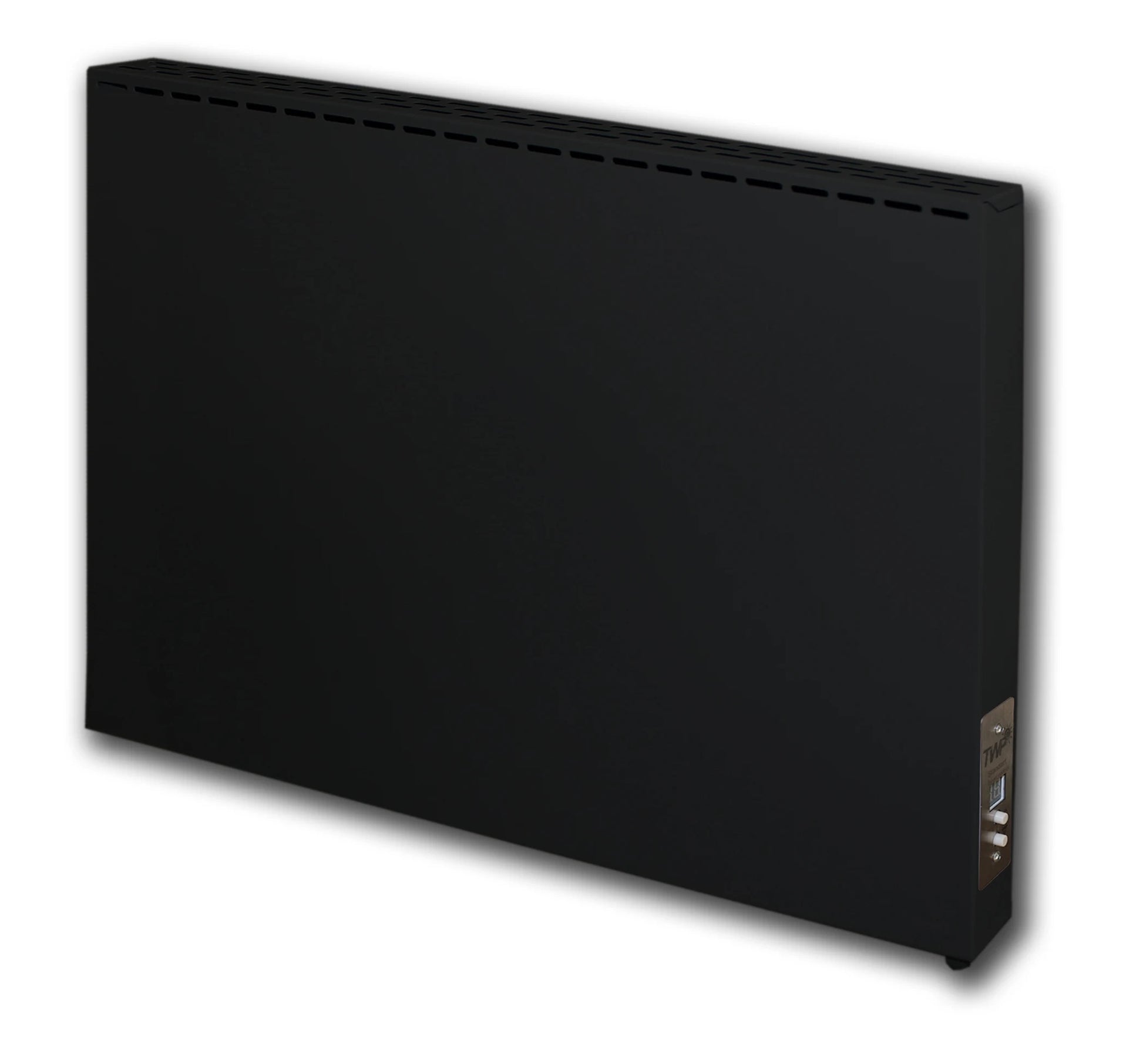

| Colour Options | White or Black |
| Panel Warranty | 5 Years |
| Thermostat Warranty | 2 Years |
Available Models
220–240V | 50Hz | Wall Mounted | Built-In Thermostat
| Model | Colour | Power | Dimensions | Weight | Voltage | Heating Area* |
|---|---|---|---|---|---|---|

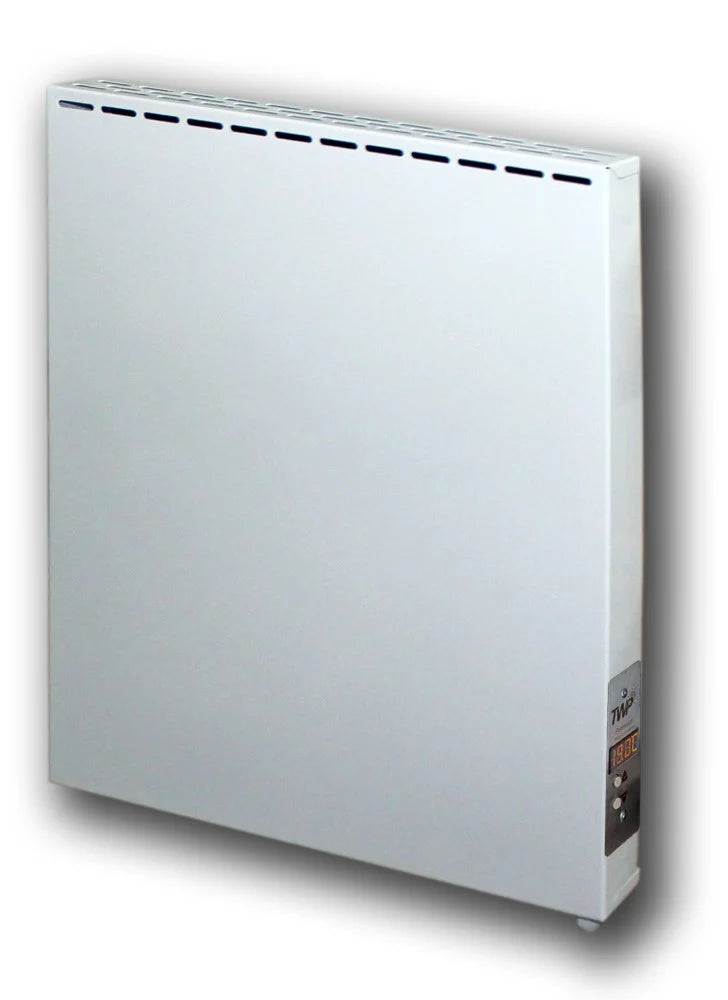

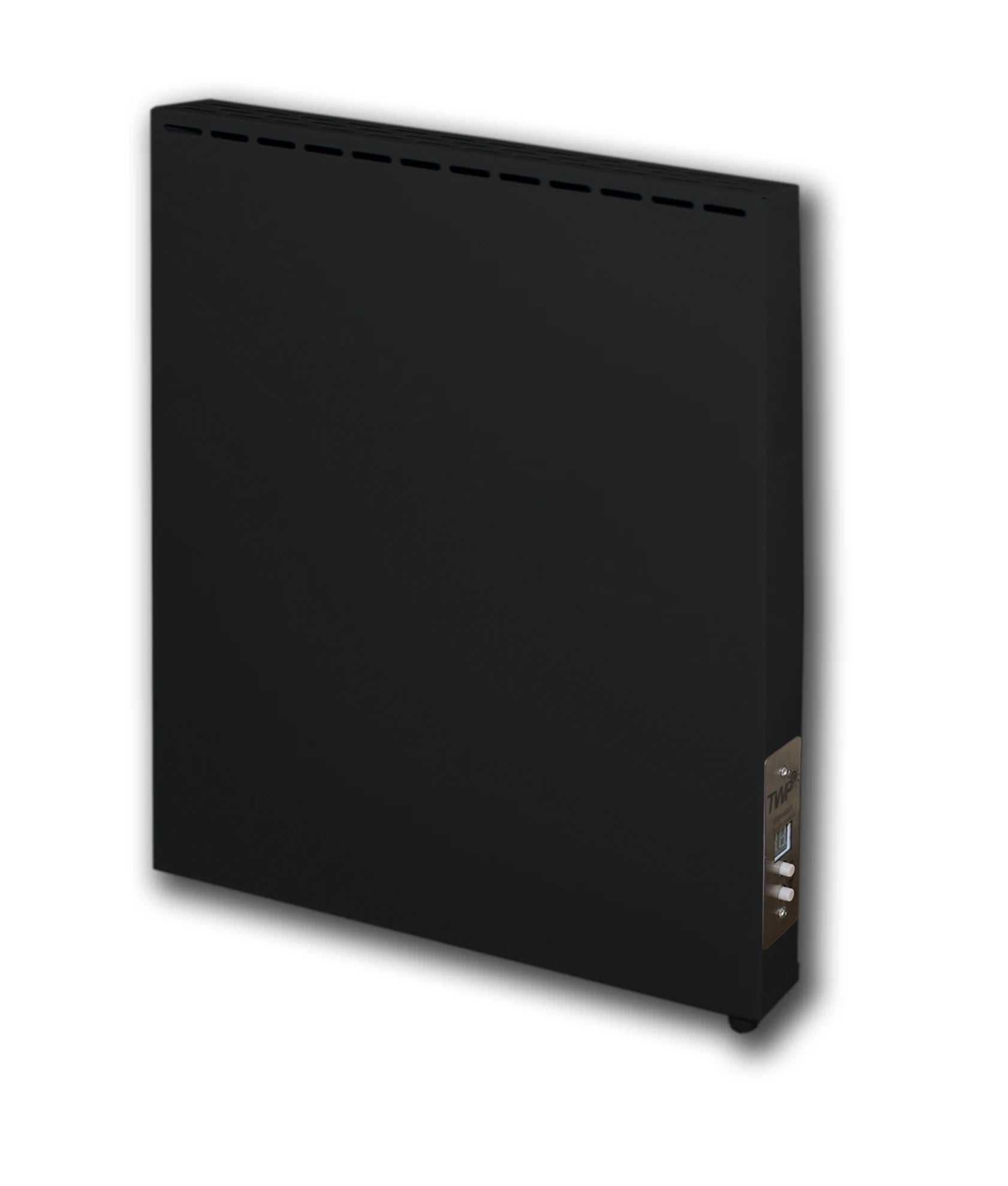

| TWP300 (W/B) Premium | White / Black | 300W | 400 × 520 × 40mm | 2kg | 220–240V | 7m² |
| TWP500 (W/B) Premium | White / Black | 500W | 700 × 520 × 40mm | 4.7kg | 220–240V | 10m² |

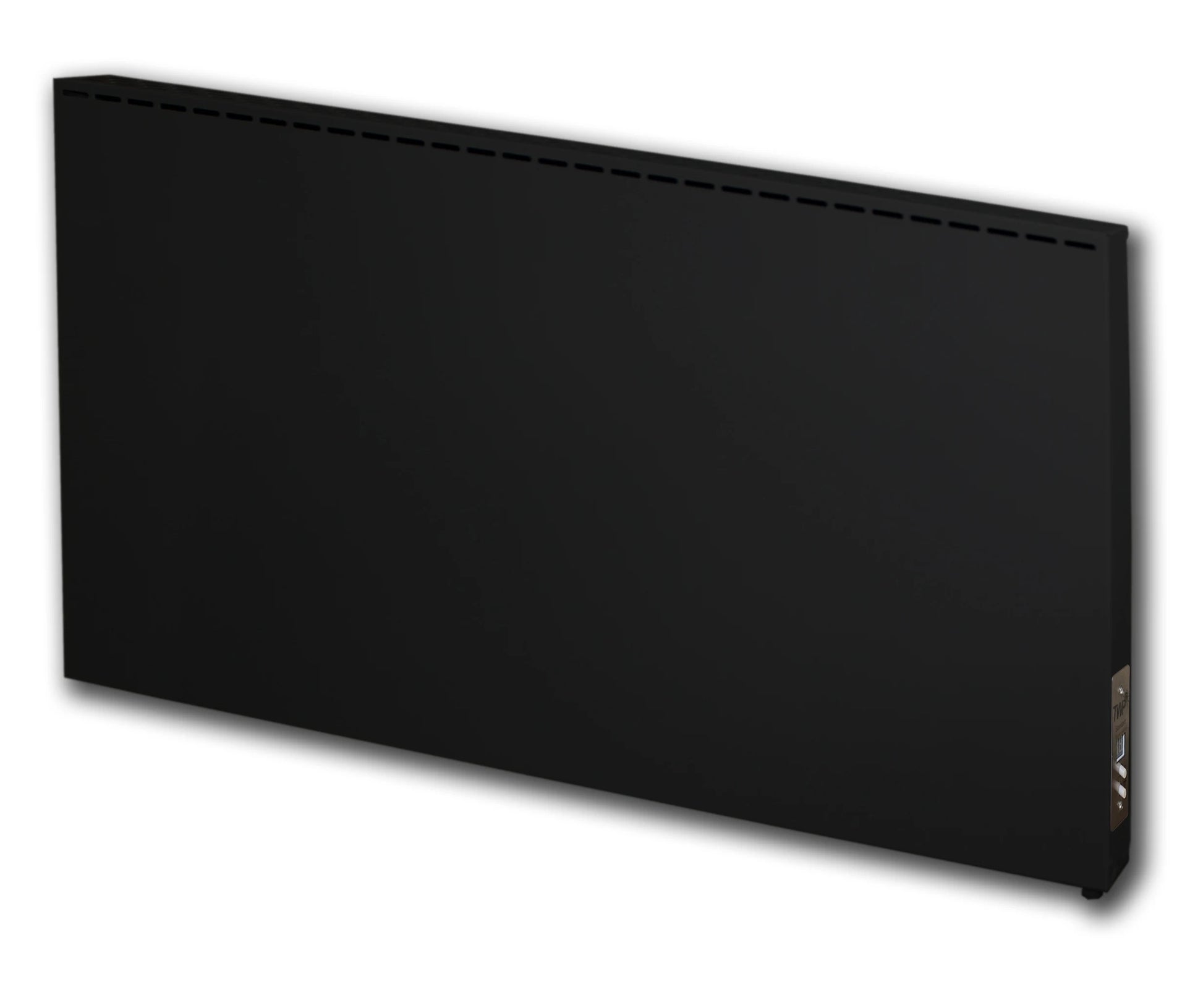

| TWP700 (W/B) Premium | White / Black | 700W | 950 × 520 × 40mm | 6kg | 220–240V | 14m² |

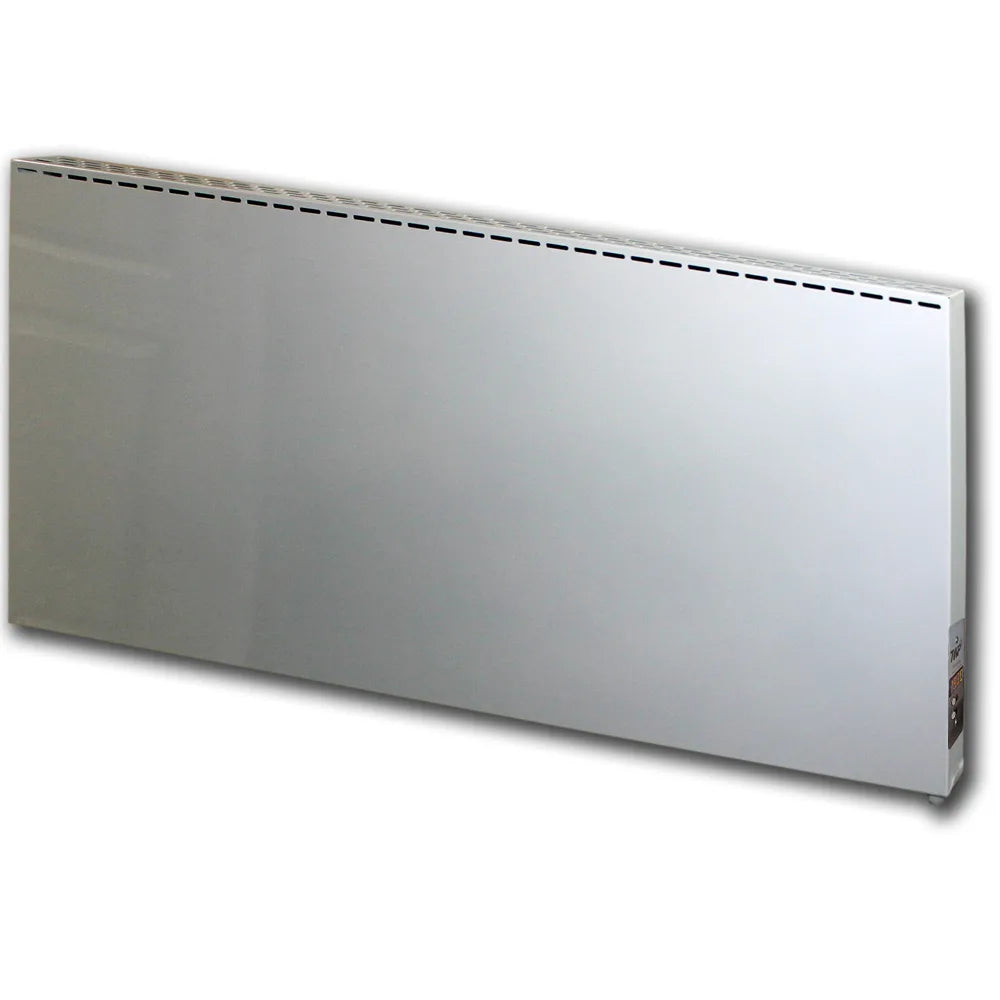

| TWP1000 (W/B) Premium | White / Black | 1000W | 1130 × 520 × 40mm | 7.4kg | 220–240V | 20m² |
*Heating Area: Coverage figures are indicative only and may vary depending on insulation levels, glazing, ceiling height, room layout and heat loss.
Positioning: For best results, avoid mounting directly opposite windows or doors and maintain a minimum 10cm clearance from surrounding objects.
Installation: The Jasmine Range is rated IPX0 and must be installed away from water and outside bathroom splash zones.
Colour Codes: Add Letter W for White or B for Black or G for Grey (Example: TWP1000WPremium).
