Tempered Glass Infrared Ceiling & Wall Heating Panel
The Iris Range is a premium tempered glass infrared heating panel designed to provide efficient, comfortable radiant warmth in both residential and commercial environments. Using advanced infrared technology, Iris heaters warm people, furnishings and surrounding surfaces directly rather than heating the air, creating a natural and energy-efficient heating experience.
Designed for ceiling or high-wall installation, Iris panels deliver consistent radiant heat while remaining discreet and safely positioned out of reach. Their sleek tempered glass finish makes them ideal for modern interiors where performance and aesthetics are equally important.
Key Features
- Efficient Infrared Radiant Heating – Provides fast, comfortable warmth by heating people and surfaces directly.
- Tempered Glass Front Panel – Stylish, durable and easy-to-clean finish suitable for modern interiors.
- Ceiling or High-Wall Installation – Ideal for residential and commercial spaces requiring unobtrusive heating.
- Effective for Larger Spaces – Designed to perform efficiently in larger rooms and higher ceiling environments.
- Silent Operation – No fans, moving parts or air circulation noise.
- Low Maintenance Design – Durable construction with minimal servicing requirements.
- Long Service Life – Designed for up to 10 years of reliable operation.
- 220–240V Compatible – Suitable for standard UK and European electrical installations.

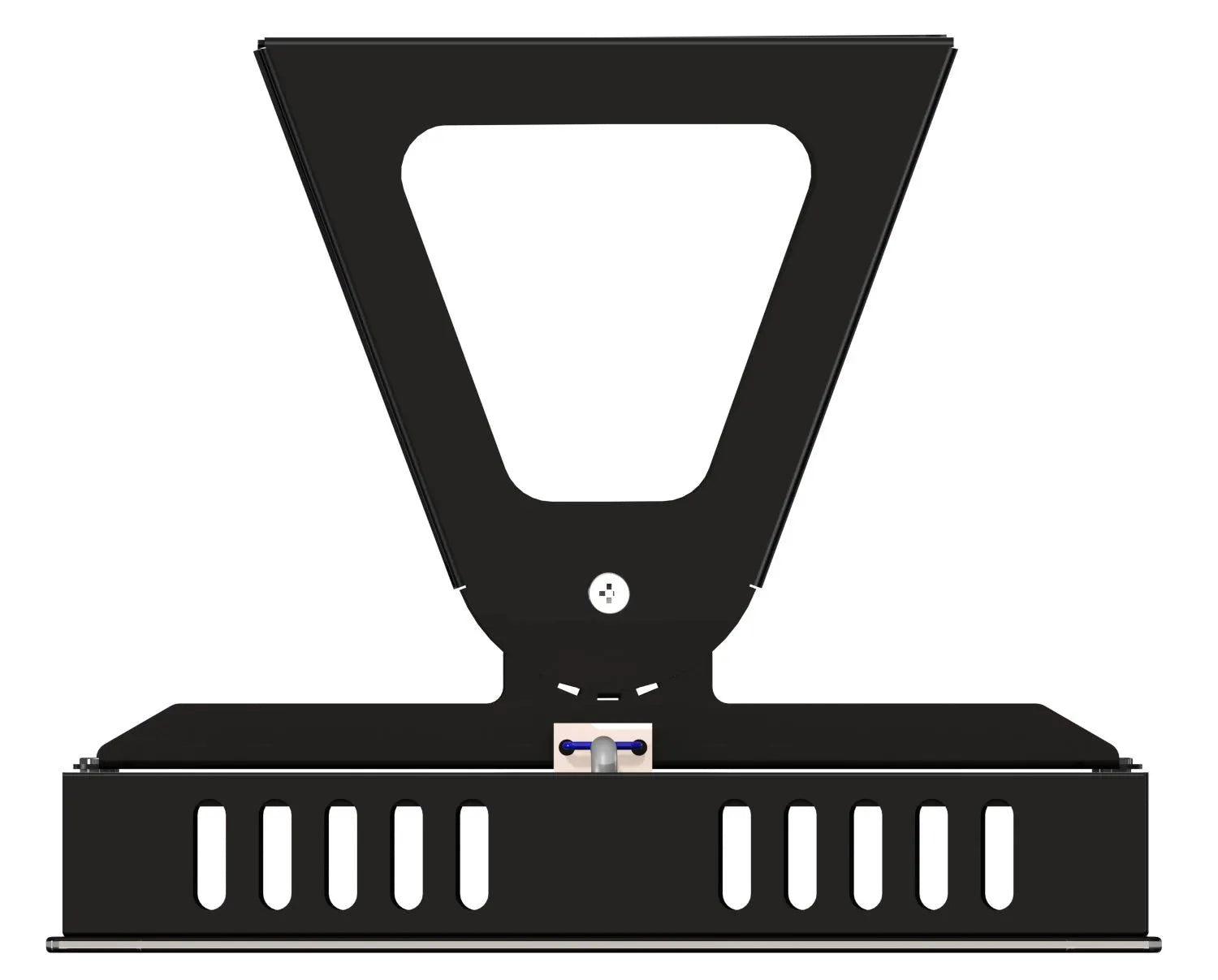

- Mounting Brackets Included – Supplied complete with fixings for ceiling or wall installation.
- 5-Year Heating Element Warranty – Manufacturer-backed warranty for long-term peace of mind.
How Infrared Heating Works
Iris heaters use infrared radiant energy to warm people, furniture, walls and floors directly, similar to the natural warming effect of sunlight. Rather than heating the surrounding air first, infrared heat is absorbed by surfaces within the room which then gently re-radiate warmth back into the space.
This creates a comfortable, even temperature distribution while reducing heat stratification and improving energy efficiency compared with conventional convection heating systems.

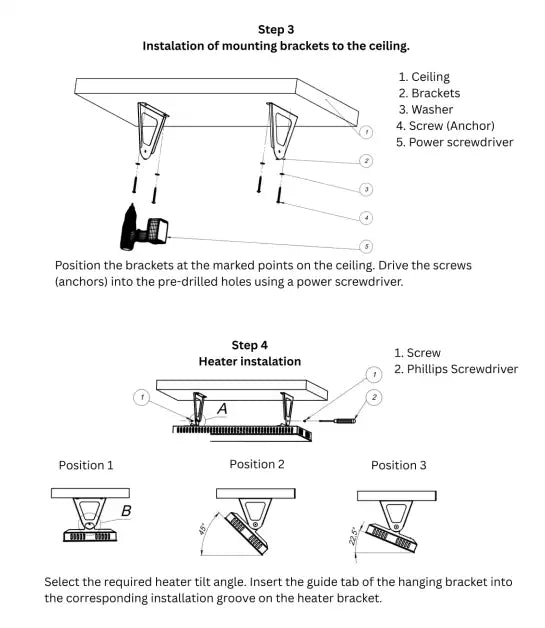

Design & Installation

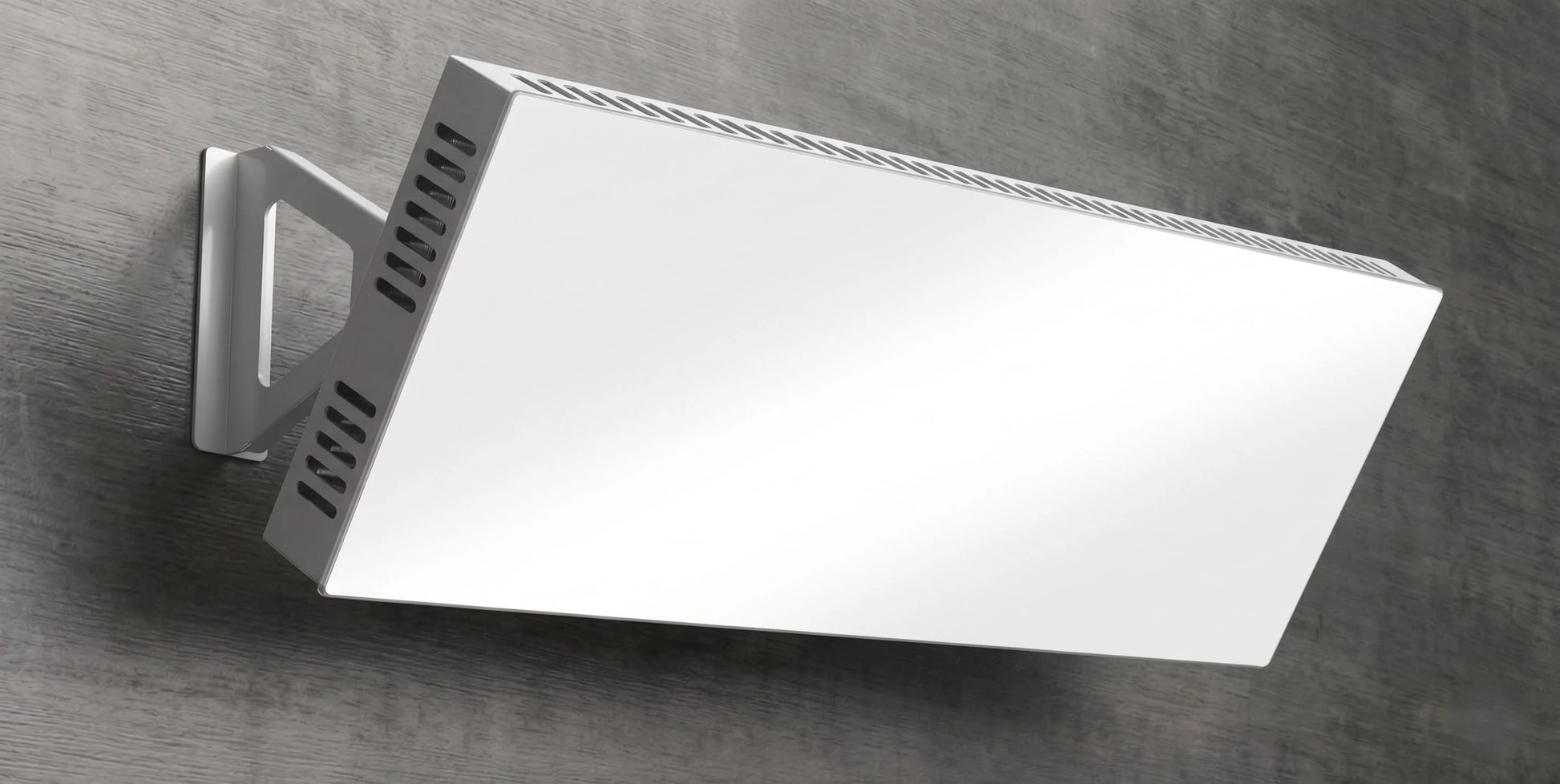

The Iris Range is designed for fixed ceiling or high-wall installation where wide radiant heat coverage is required. Mounting the heater above occupied areas maximises comfort while keeping wall and floor space clear.
- Minimum recommended installation height: 2.5 metres.
- Position the heater to maximise radiant coverage across occupied areas.
- Suitable for residential and commercial indoor environments.
- Supplied with mounting brackets and installation fixings.

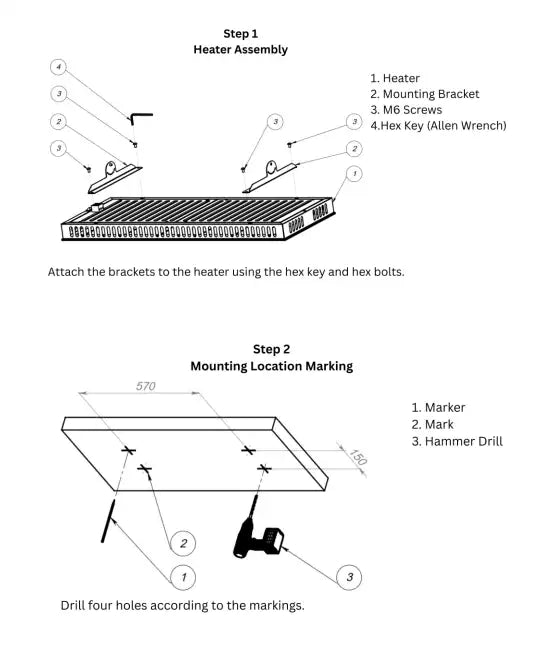

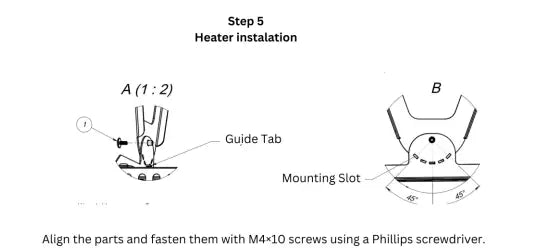

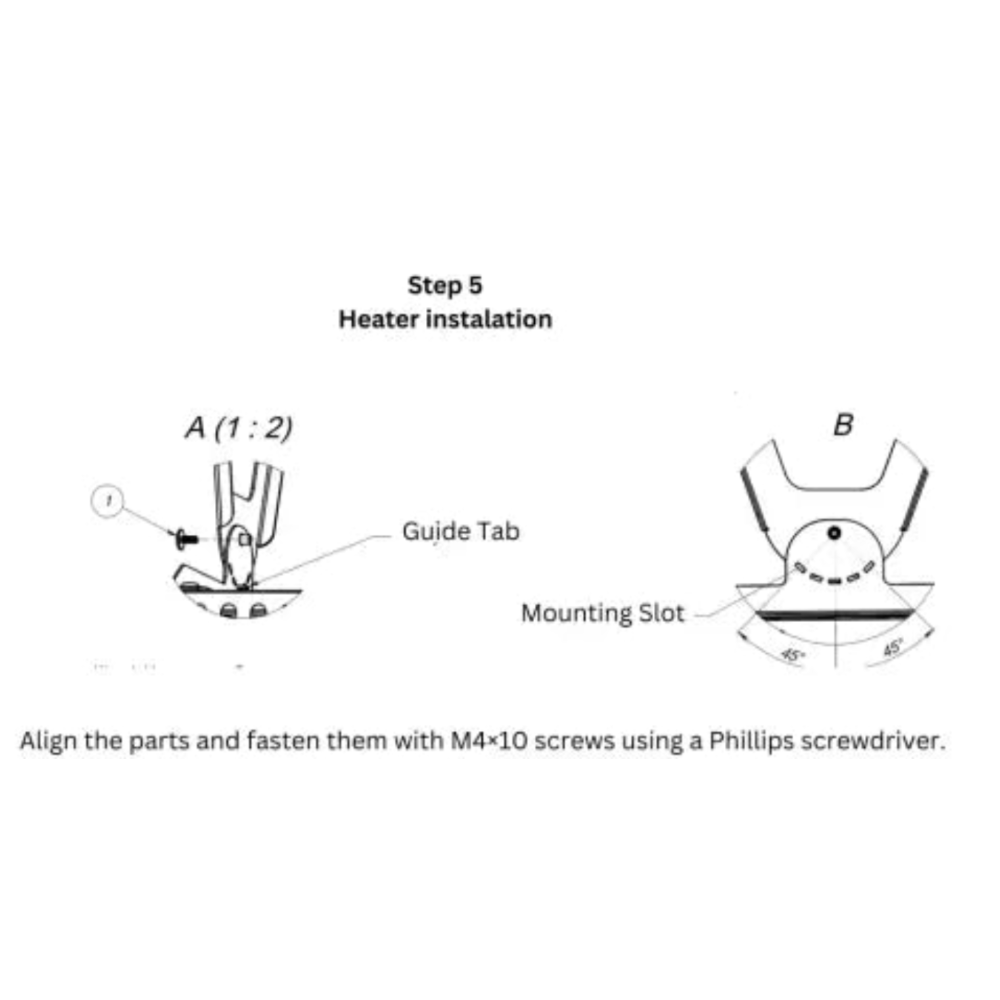

- Refer to the installation manual for full mounting instructions.
Recommended Applications
- Residential living rooms and open-plan spaces.
- Offices and commercial premises.
- Reception areas and waiting rooms.
- Hallways and circulation spaces.
- Retail environments and showrooms.
- Buildings with higher ceilings requiring effective radiant heating.
Iris Instructions Manual
Specifications
| Heating Technology | Infrared Radiant Heating |
|---|---|
| Panel Construction | Tempered Glass Front Panel |
| Installation Type | Ceiling or High-Wall Mounted |
| Voltage | 220–230V | 50Hz |
| Operation | Continuous Indoor Operation |
| Mounting Hardware | Wall/Ceiling Brackets & Fixings Included |
| Applications | Residential & Commercial Heating |
| Expected Lifespan | Up to 10 Years |
| Warranty | 5-Year Heating Element Warranty |
Available Models
220–230V | 50Hz | Single Phase
| Model | Power | Dimensions | Weight | Voltage | Heating Area* | Mounting Height** | Power Supply |
|---|---|---|---|---|---|---|---|

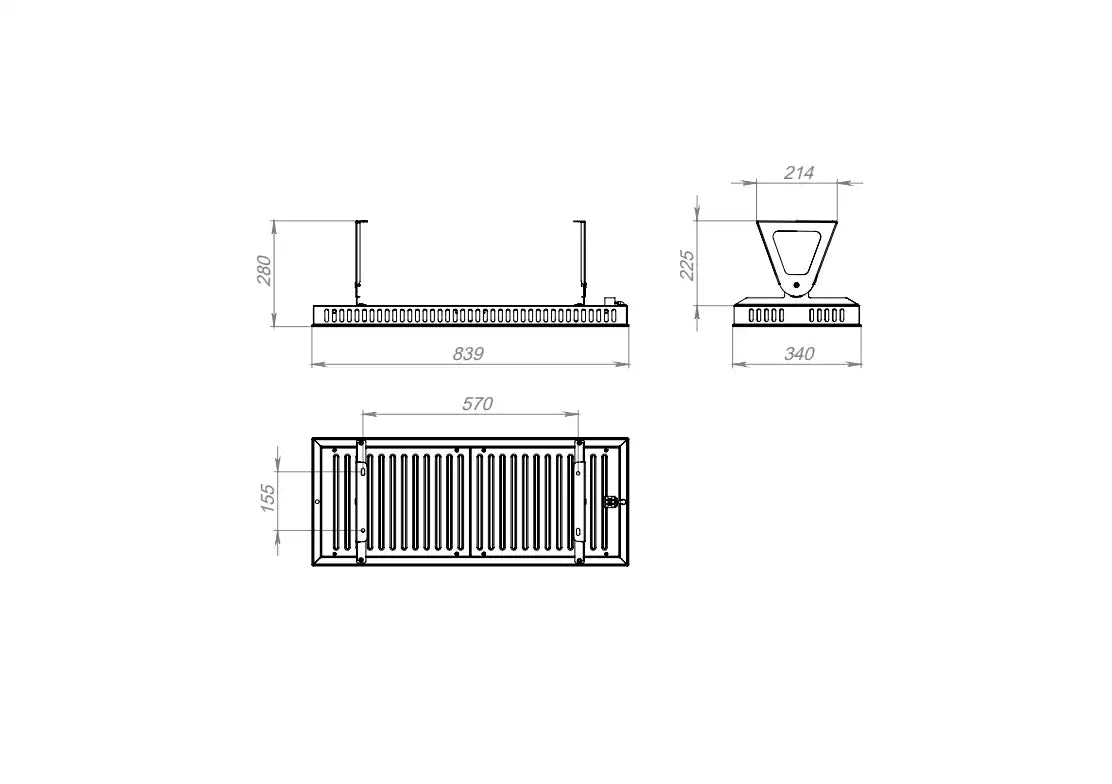

| Iris-1000 | 1000W | 840 × 340 × 55mm | 9.45kg | 220–230V | 5–10m² | 2.5m | Single Phase |

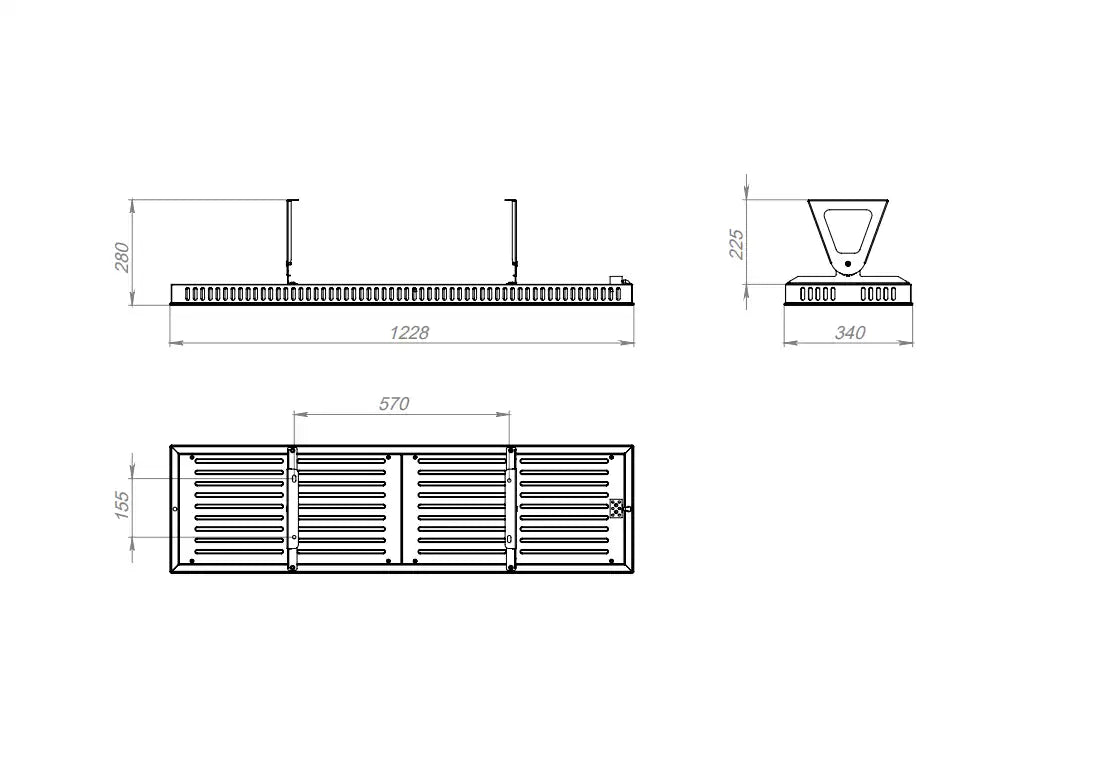

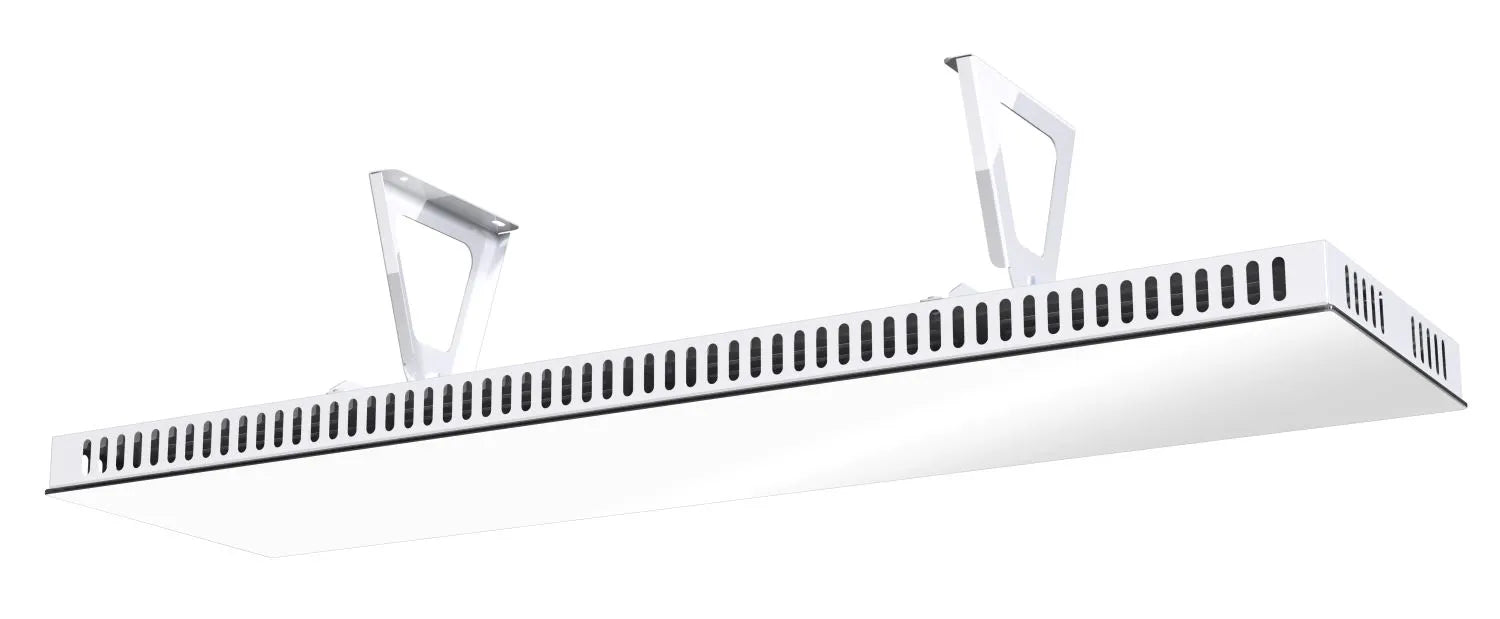

| Iris-1500 | 1500W | 1230 × 340 × 55mm | 12.57kg | 220–230V | 8–16m² | 2.5m | Single Phase |
*Heating Area: Coverage figures are indicative only and may vary depending on insulation levels, glazing, room layout, ceiling height and building heat loss characteristics.
**Mounting Height: Minimum recommended installation height is 2.5 metres to achieve optimal heat distribution and occupant comfort.
Included: Infrared heater panel, mounting brackets, installation fixings and instruction manual.

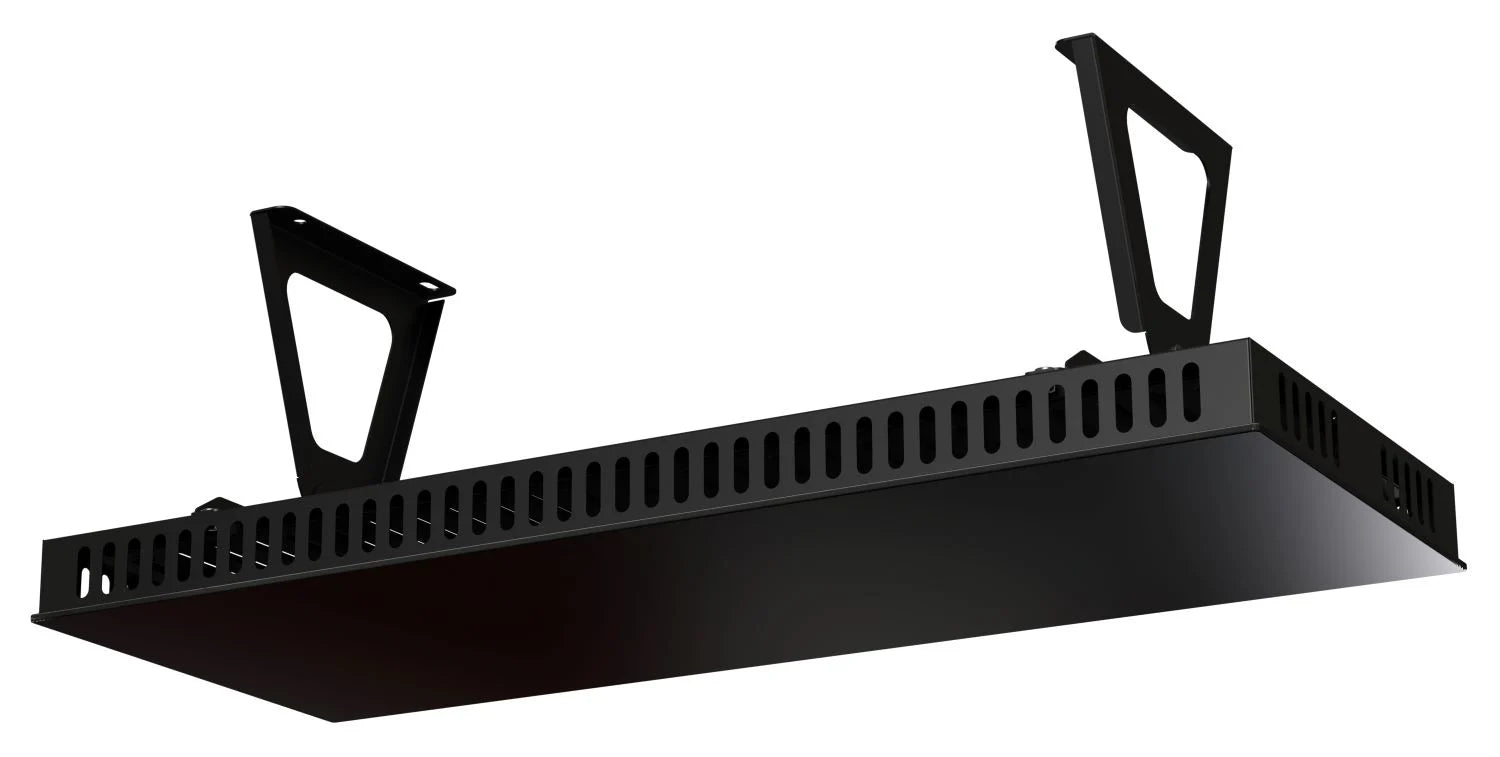

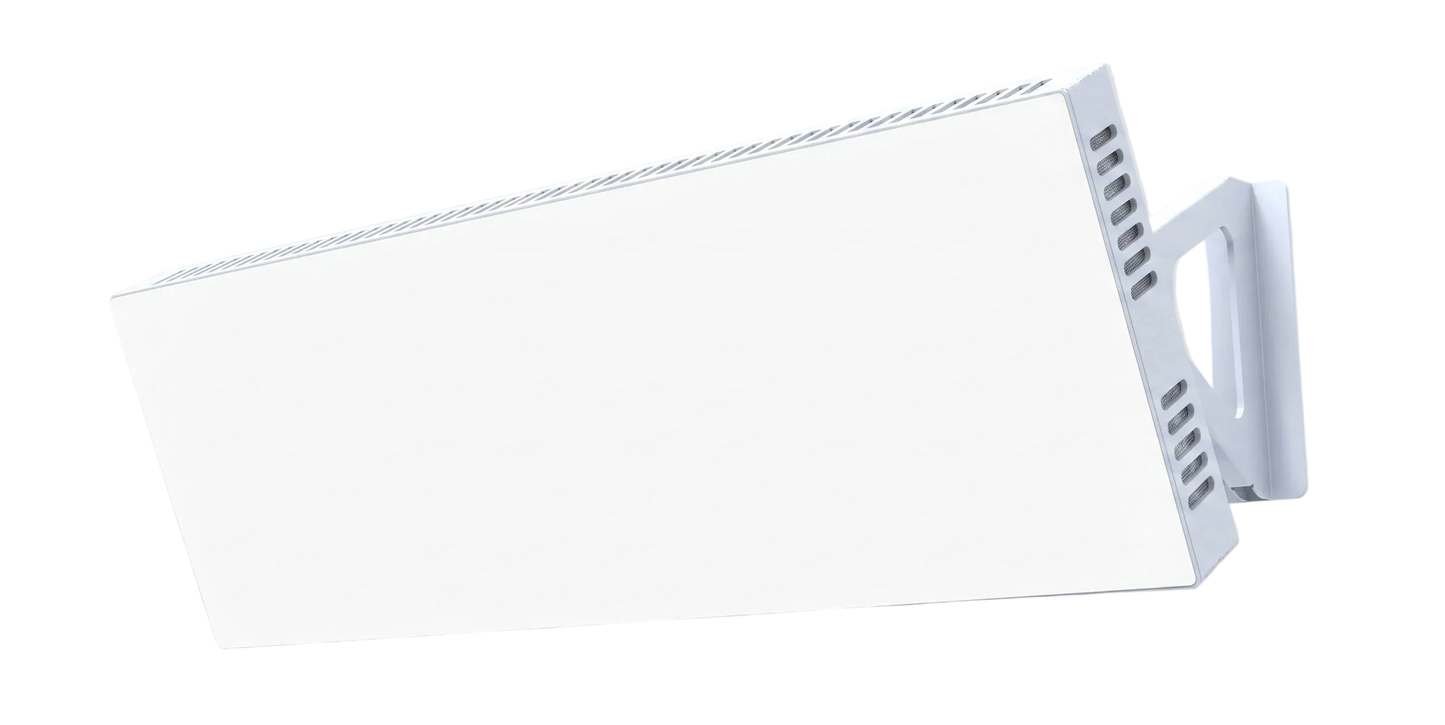

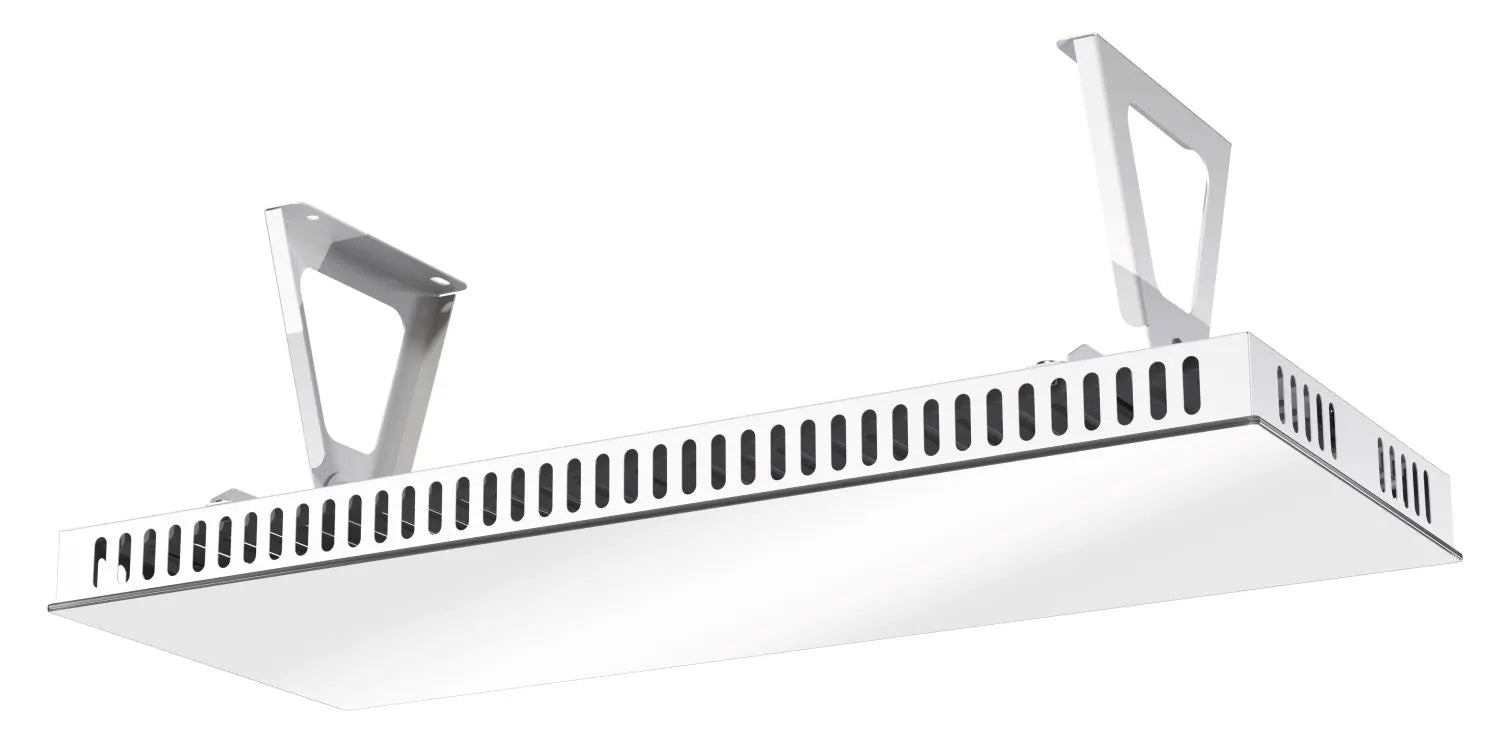

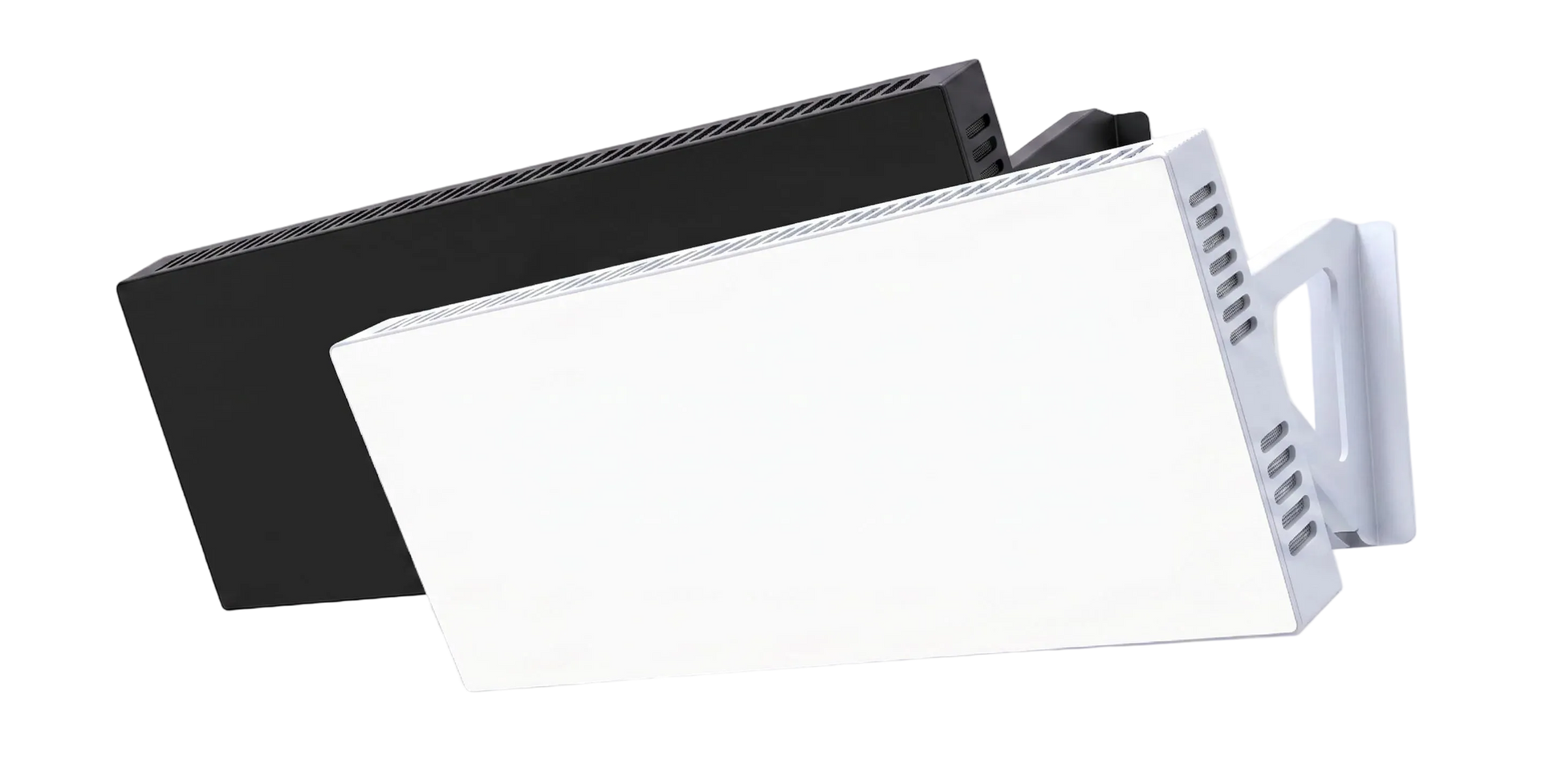

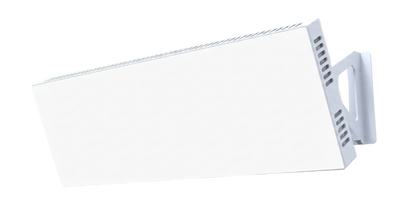

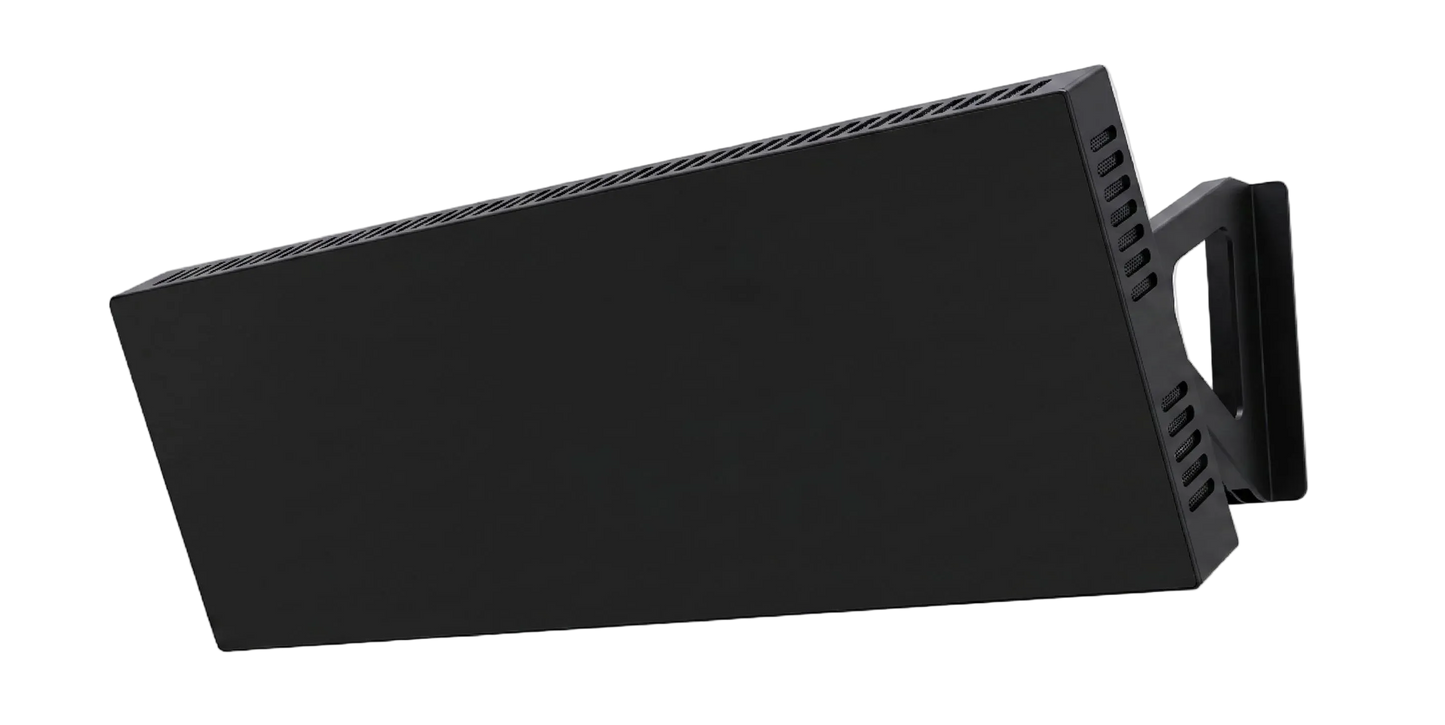

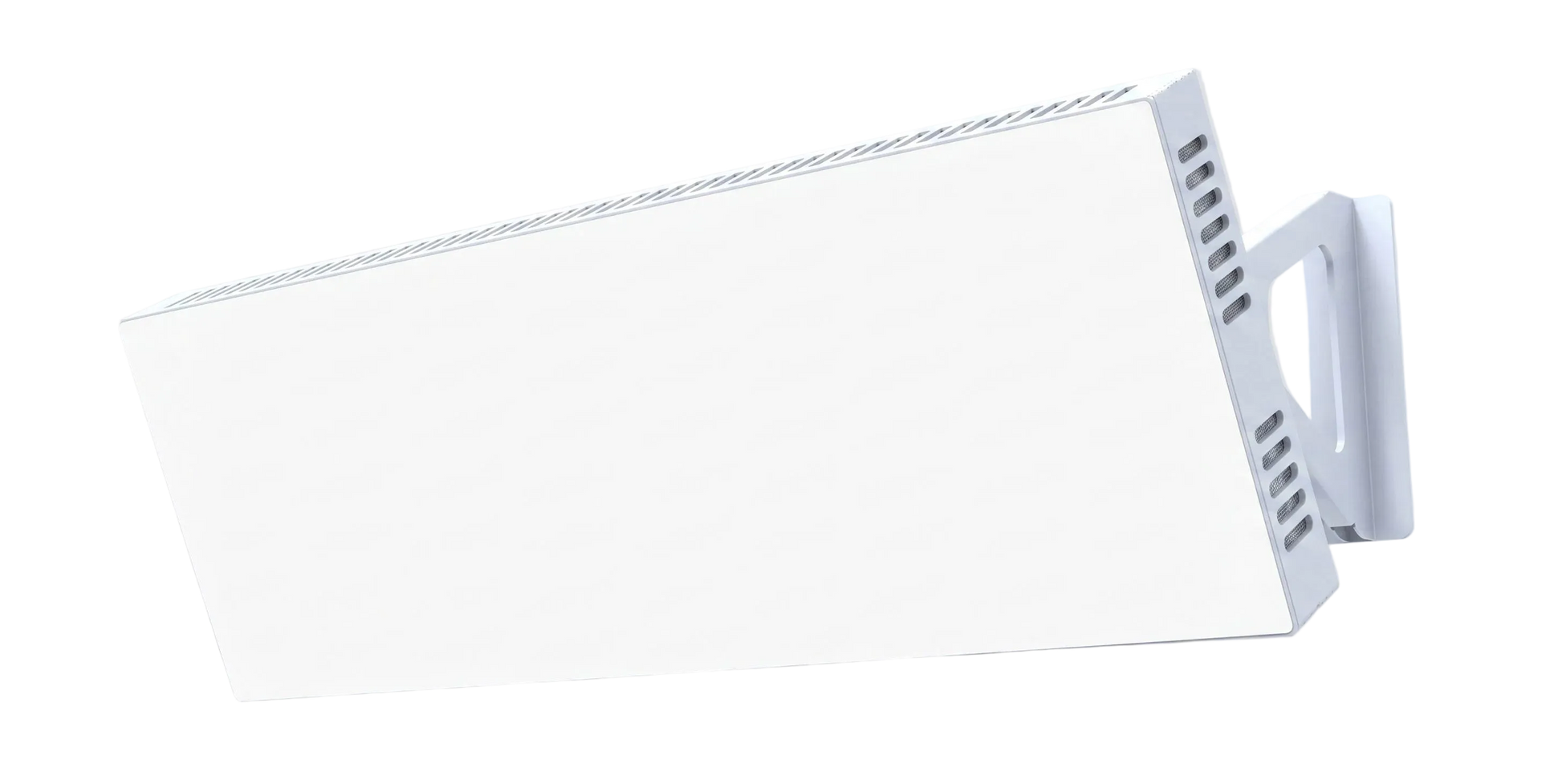

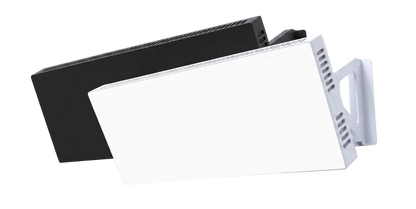

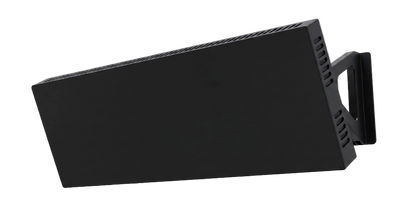

Colour Options: Add Suffix W for White or B for Black in Part Number.
