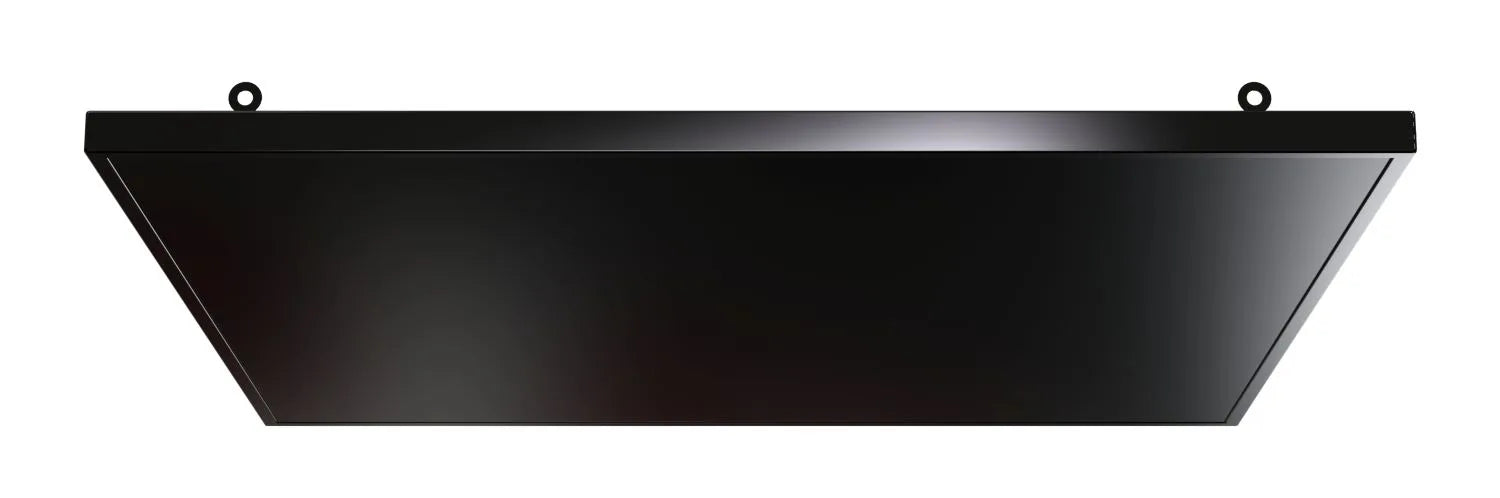

Far Infrared Ceiling Panel – Armstrong Ceiling Compatible
The Armstrong Ceiling Grid Heater is a high-efficiency far infrared ceiling heating panel specifically engineered for suspended ceiling grid systems. Designed to fit seamlessly within standard 600 × 600 mm Armstrong ceiling layouts, the panel delivers comfortable radiant warmth directly to occupants and surfaces for improved thermal comfort and reduced energy consumption.
With its discreet low-profile design and neutral white finish, the Armstrong heater integrates effortlessly into commercial interiors while preserving valuable wall and floor space. Installed overhead and out of reach, it provides a safe, silent, and maintenance-free heating solution without fans, moving parts, or visible clutter.
Key Features
- Armstrong Ceiling Compatible – Designed to fit standard 600 × 600 mm suspended ceiling grids.
- Efficient Far Infrared Heating – Direct radiant heat warms people and surfaces rather than wasting energy heating empty air.
- Low Running Costs – Energy-efficient operation helps reduce heating expenditure in commercial environments.
- Safe Overhead Installation – Ceiling-mounted positioning keeps heaters discreetly out of reach.
- Space-Saving Design – Leaves floors and walls entirely free for furnishings, storage, and operational use.
- Discreet Commercial Finish – Neutral white panel blends seamlessly into office and suspended ceiling layouts.
- Integrated Insulation – Designed to maximise downward heat emission for greater efficiency and comfort.
- IP54 Rated Protection – Protected against dust and splashing water for reliable commercial operation.
- 5-Year Warranty – Long-term reliability backed by manufacturer warranty.
How Infrared Heating Works
The Armstrong heater uses far infrared technology to warm occupants, furnishings, and surrounding surfaces directly, similar to the natural warming effect of sunlight.
Rather than heating circulating air, infrared heat is absorbed by objects within the room, helping create a balanced and comfortable environment while reducing unnecessary heat loss.
Design & Installation

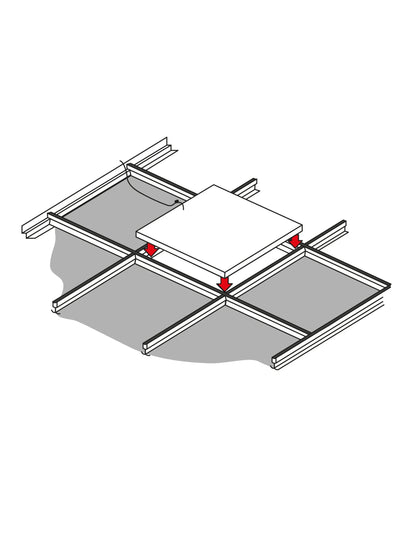

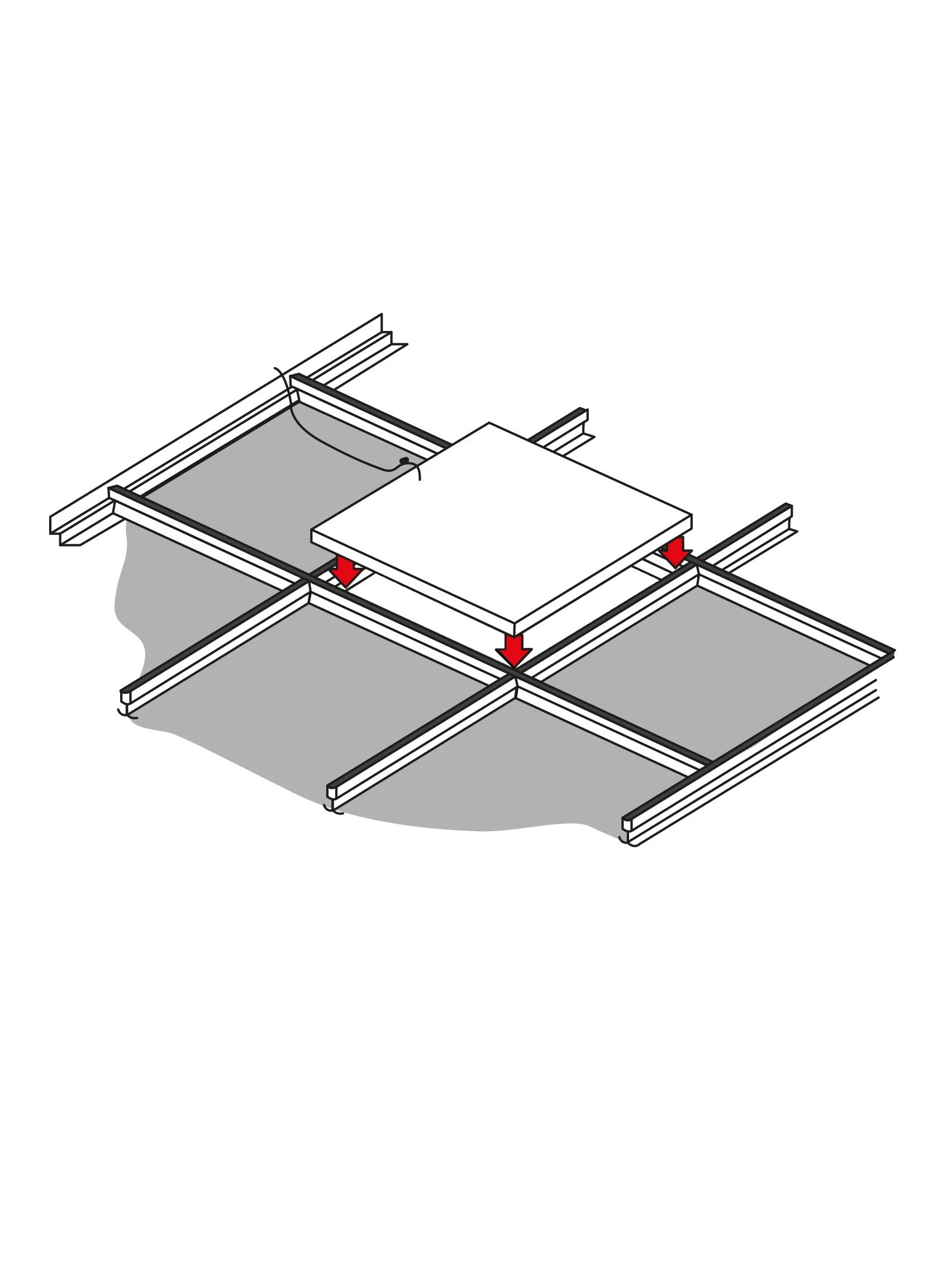

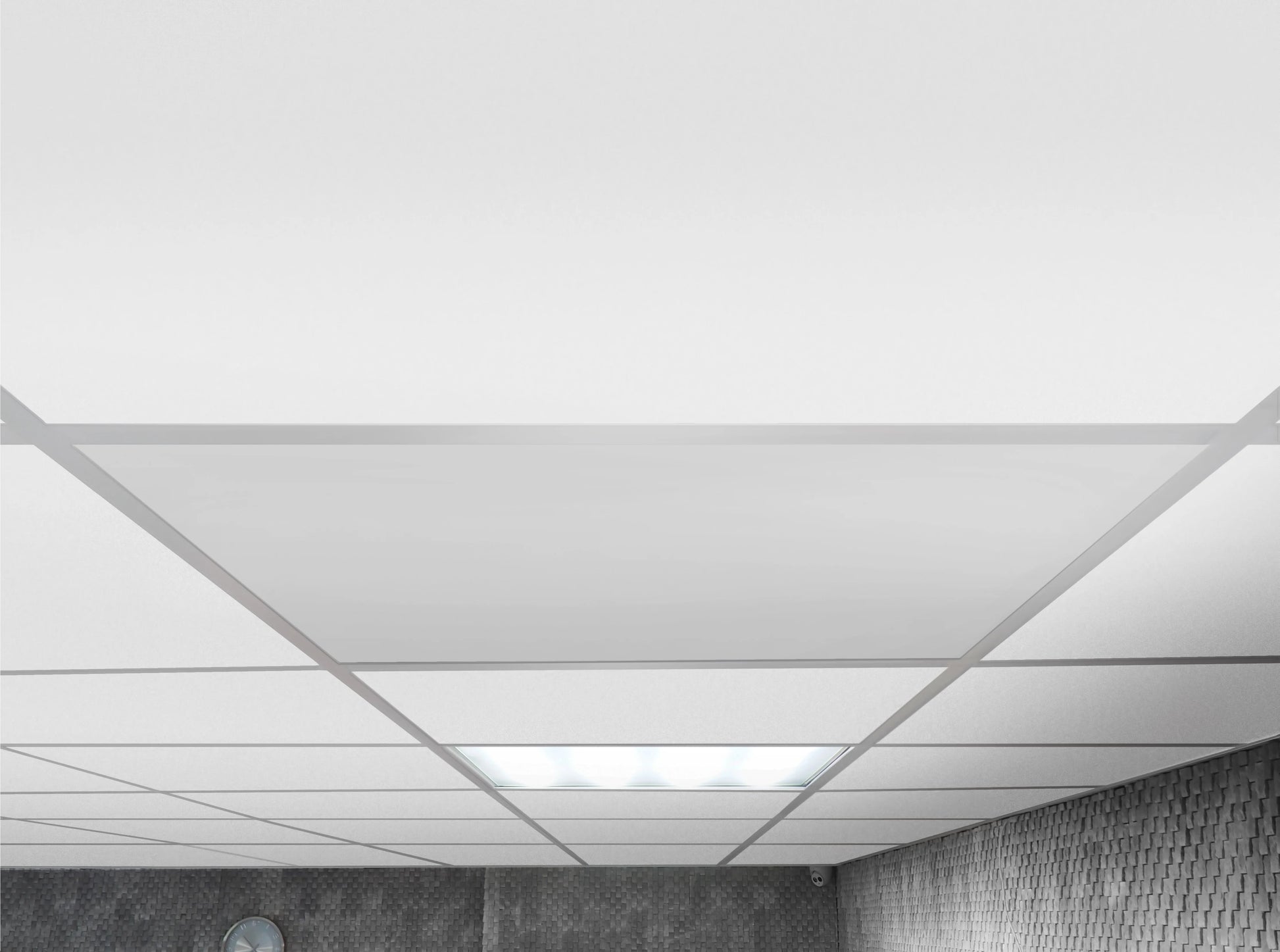

Designed specifically for Armstrong suspended ceiling systems, the panel installs neatly into standard 600 × 600 mm ceiling grids without occupying wall or floor space.
Recommended mounting height is 2.0 – 2.8 metres for optimal heat distribution.
The discreet overhead design makes the Armstrong heater ideal for commercial environments requiring unobtrusive, low-maintenance heating.
Recommended Applications
- Offices & open-plan workspaces
- Meeting rooms & conference facilities
- Care homes & assisted living environments
- Reception areas & trade counters
- Retail and commercial environments
Technical Specifications
| Model Number | G-Armstrong |
|---|---|
| Product Type | Far Infrared Ceiling Panel |
| Ceiling Compatibility | Armstrong Ceiling Grid (600 × 600 mm) |
| Supply Voltage | 220–240V |
| Power Consumption | 700W |
| Surface Temperature | Up to 120°C |

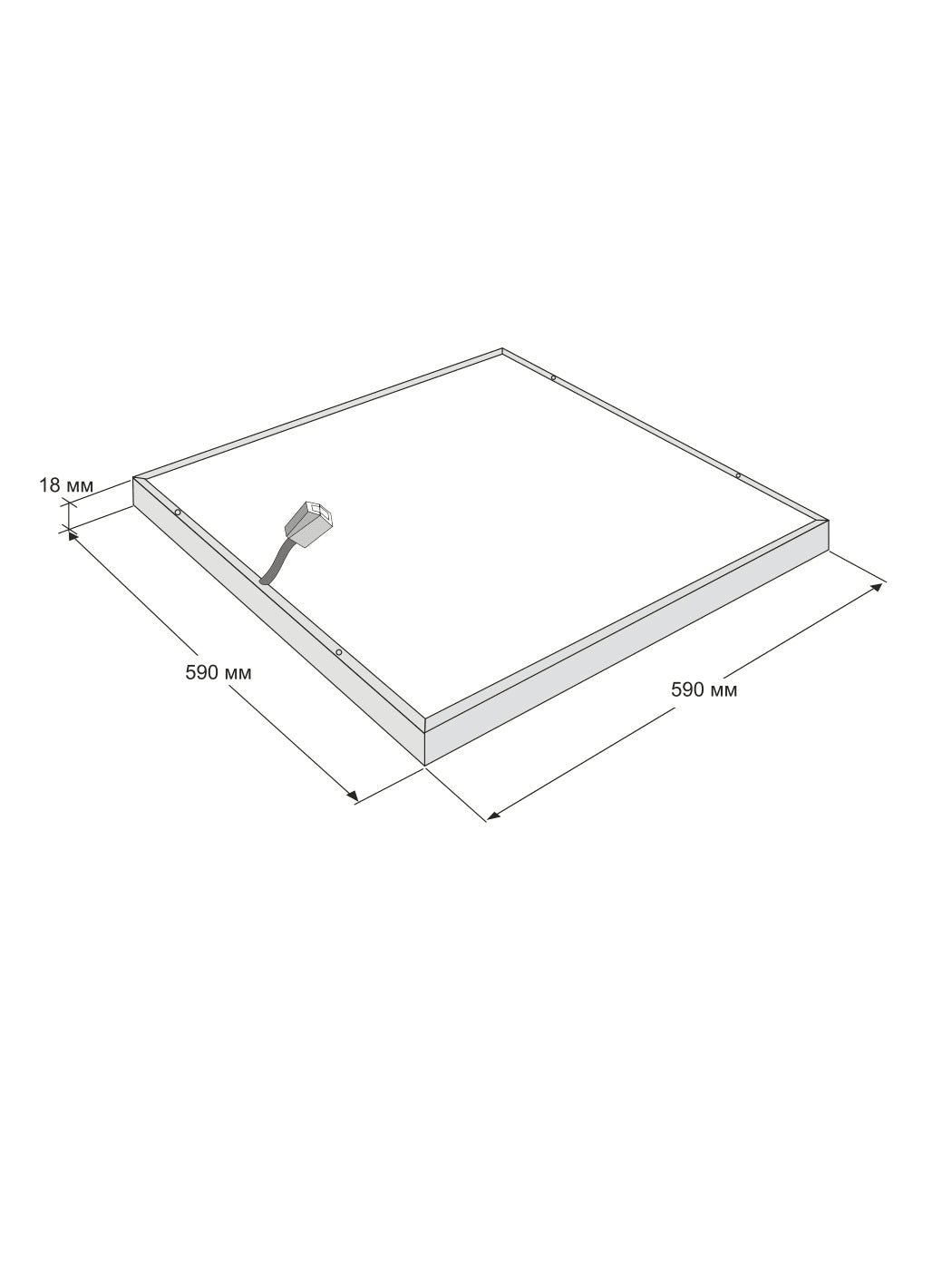

| Dimensions | 590 × 590 × 25 mm |
| Weight | 4.4kg |
| Ingress Protection | IP54 |
| *Mounting Height | 2.0 – 2.8m |
| Colour | White / Black |
| Warranty | 5 Years |
Installation: Designed for suspended ceiling systems compatible with standard Armstrong ceiling grids.
*Mounting Height: Recommended mounting heights are based on achieving approximately 20°C in insulated environments. Adjustments may be required depending on insulation quality and target room temperature.

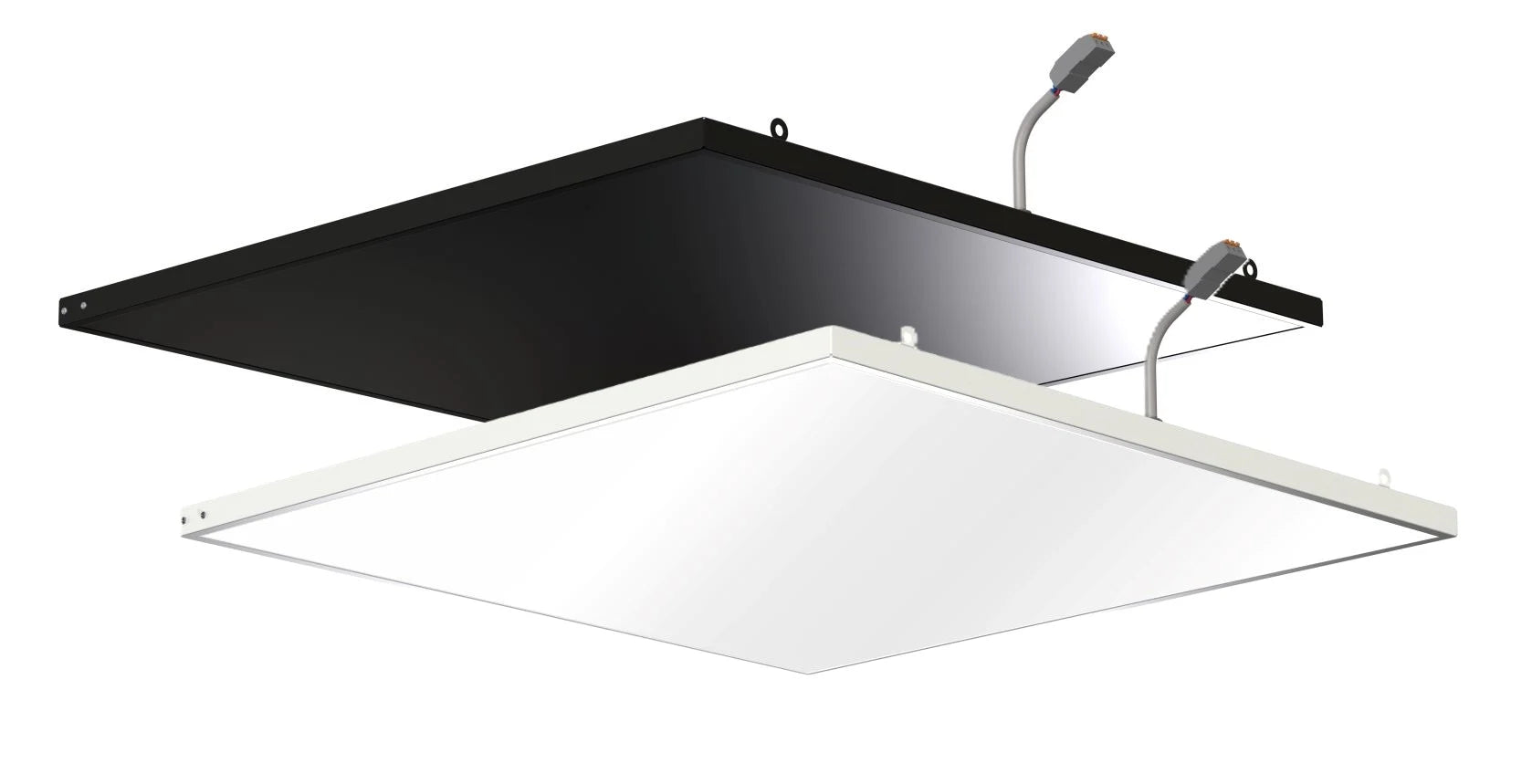

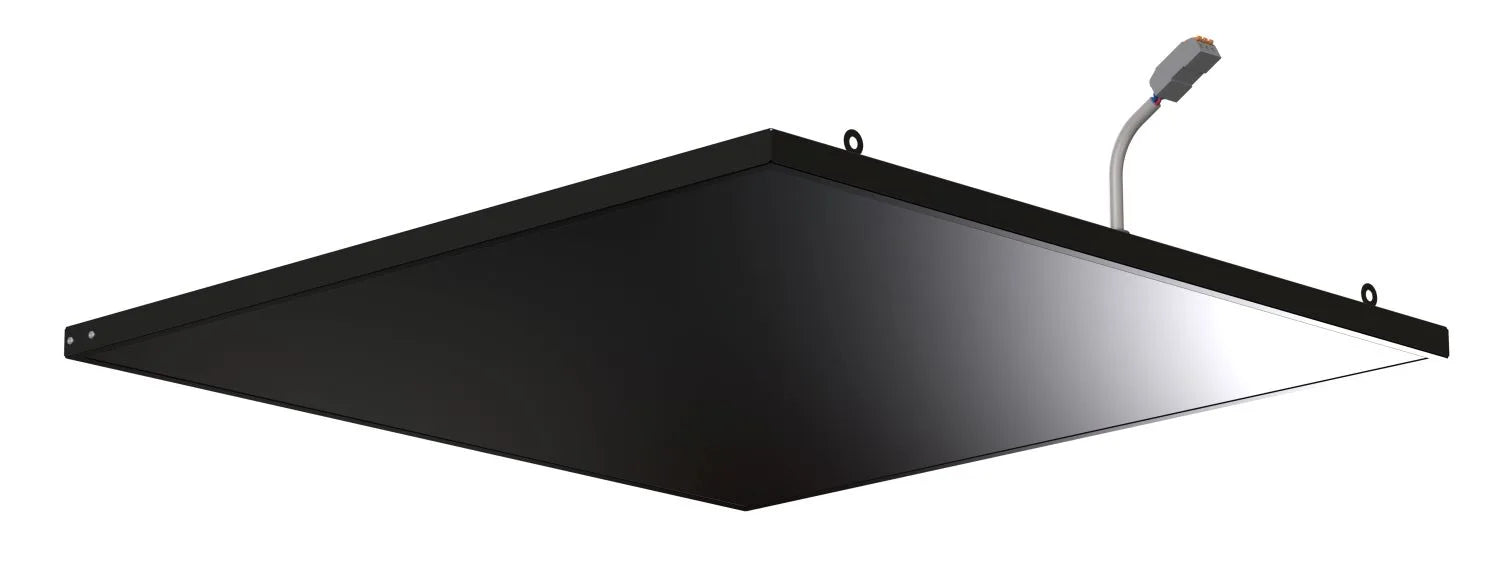

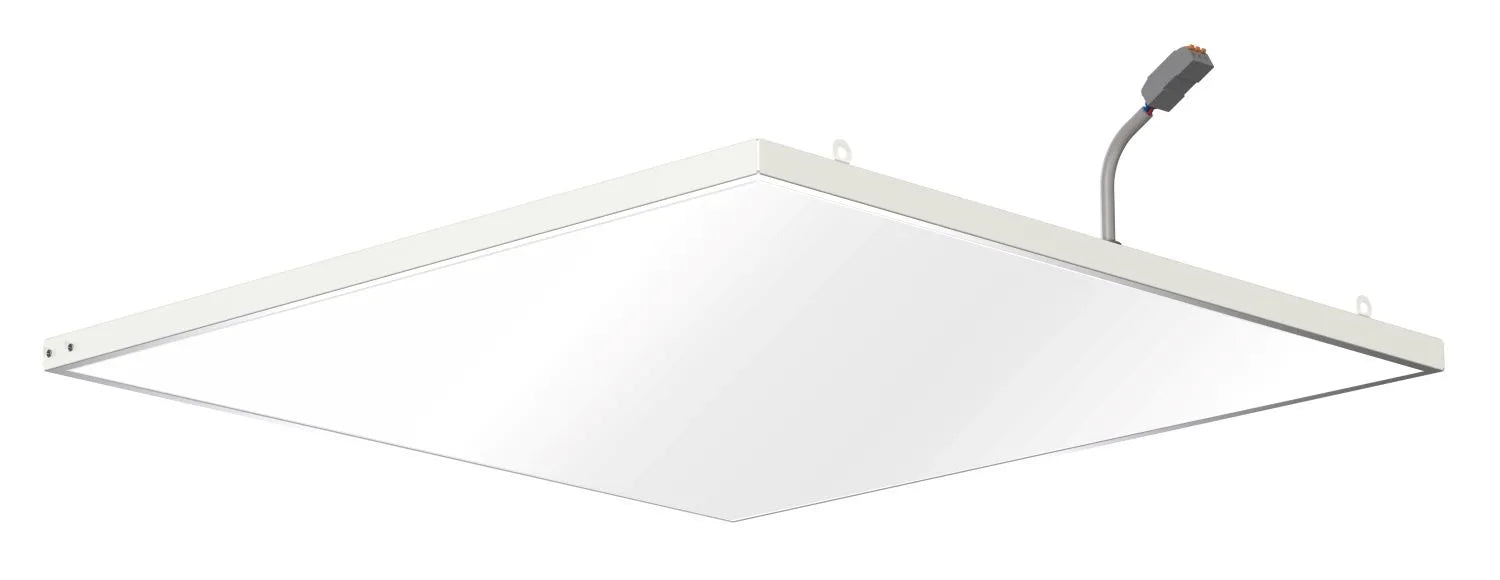

Colour Codes: Add suffix W for White or B for Black (Example: G-Armstrong W).
