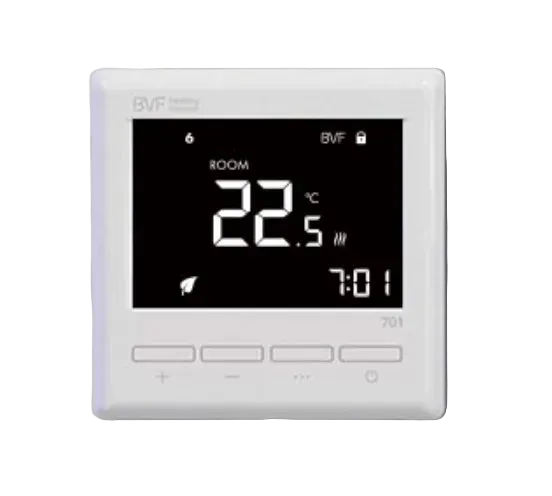

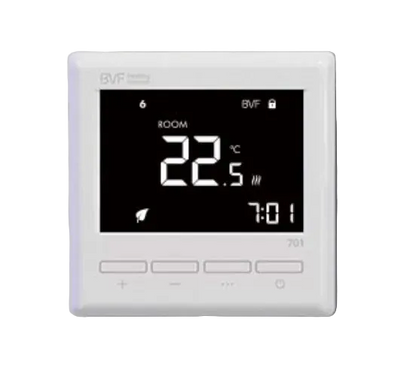

701 Programmable Room Thermostat
The 701 Programmable Room Thermostat is designed for precise and reliable control of electric heating systems, including infrared panels, electric radiators, and electric underfloor heating. Featuring advanced temperature sensing and a high-capacity switching relay, it delivers accurate control and long-term reliability in residential and commercial environments.
With its clear LCD display, intuitive programming, and robust 16A switching capability, the 701 thermostat ensures efficient energy management while maintaining consistent indoor comfort.
Key Features
- Programmable 5+1+1 Schedule – 4 independent time periods per day.
- High-Load 16A Relay – Suitable for most electric heating systems.
- Accurate Temperature Control – Maintains comfort with ±0.5°C accuracy.
- Dual Sensor System – Built-in air sensor with optional floor probe compatibility.

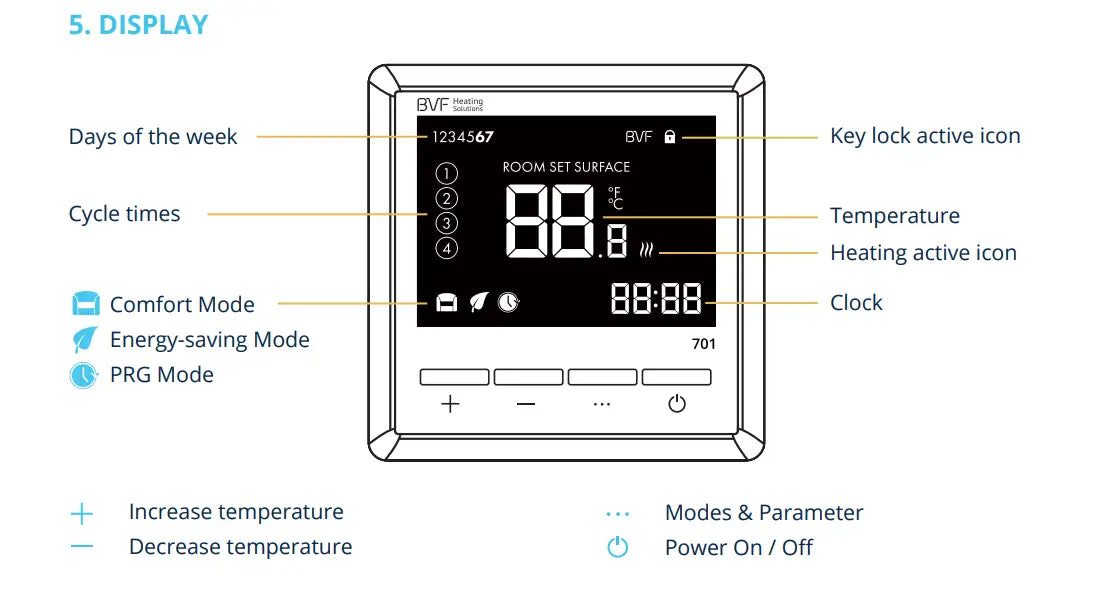

- Clear LCD Display – Easy-to-read interface with white backlight.
- Energy Saving Control – Efficient temperature cycling reduces energy waste.
- Simple User Interface – Quick setup and intuitive navigation.
- Compact Modern Design – Slim profile for flush wall mounting.
- Non-Volatile Memory – Retains settings after power loss.
- CE Certified – Fully compliant with European safety standards.
How It Works
The 701 thermostat continuously measures room temperature using its internal sensor and activates the connected heating system when the temperature drops below the set point. Once the desired temperature is reached, it automatically switches the system off, ensuring efficient and consistent heating control.
Installation & Setup
- Wall-mounted compact thermostat design.
- Connects directly to electric heating systems via 16A relay output.
- Compatible with electric underfloor heating and infrared panels.
- Optional 3m NTC floor sensor available (sold separately).
- Professional installation recommended for mains connection.
Specifications
| Product Type | Programmable Room Thermostat |
|---|---|
| Capacity | 16A |
| Voltage | 230V AC |
| Programming | 5+1+1 Weekly Schedule, 4 Time Periods Per Day |
| Temperature Range | 5°C – 80°C |
| Accuracy | ±0.5°C |
| Display | LCD with White Backlight |
| Sensor Type | Air Sensor + NTC 10K Floor Sensor Compatible |
| Memory | EEPROM (Settings retained after power loss) |
| IP Rating | IP20 |
| Colour | White |
| Certification | CE Certified |
Installation: Must be installed by a qualified electrician in accordance with local electrical regulations.
Compatibility: Suitable for electric heating systems up to 16A load.
Floor Sensor: Optional NTC floor probe available separately for underfloor heating applications.
Video Tutorials
Watch setup, and programming guides below.
