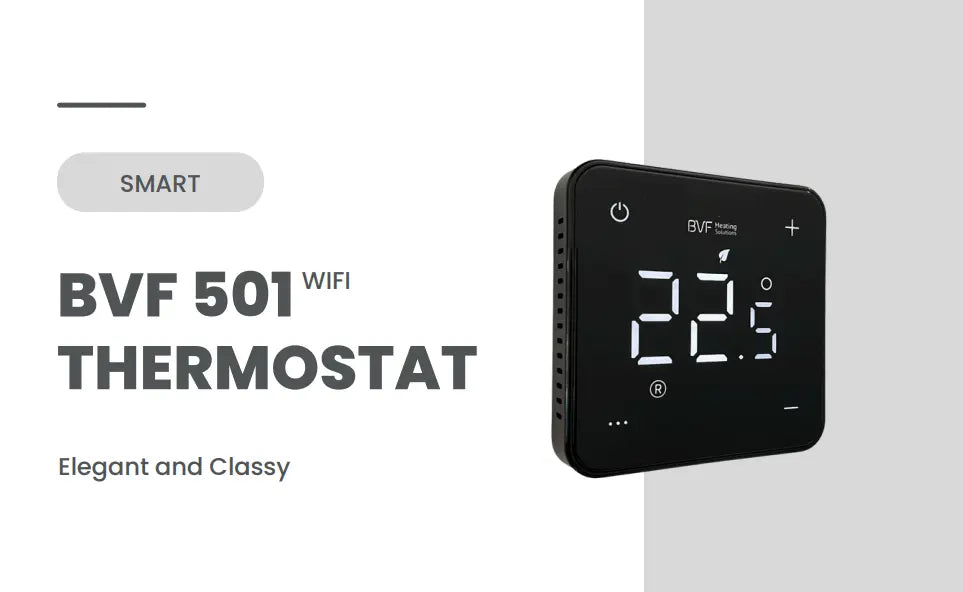

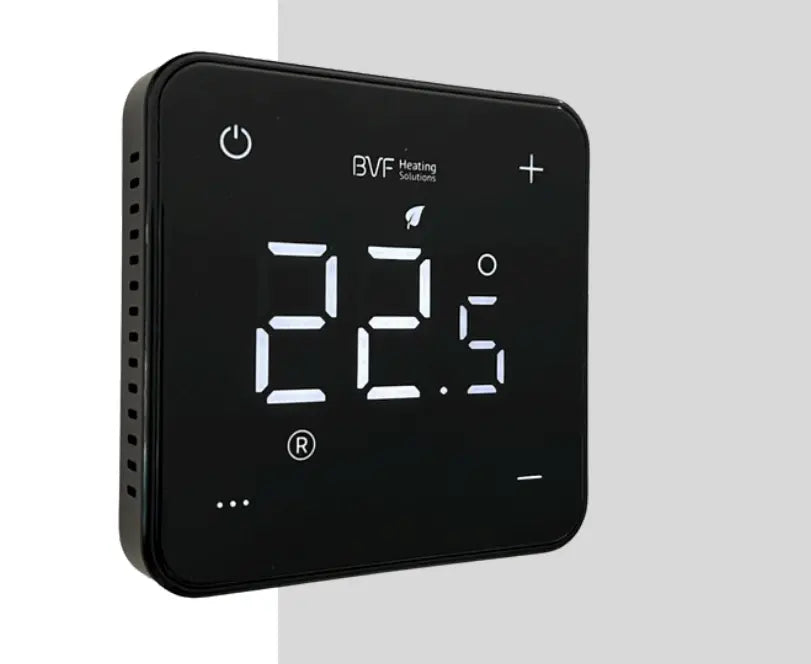

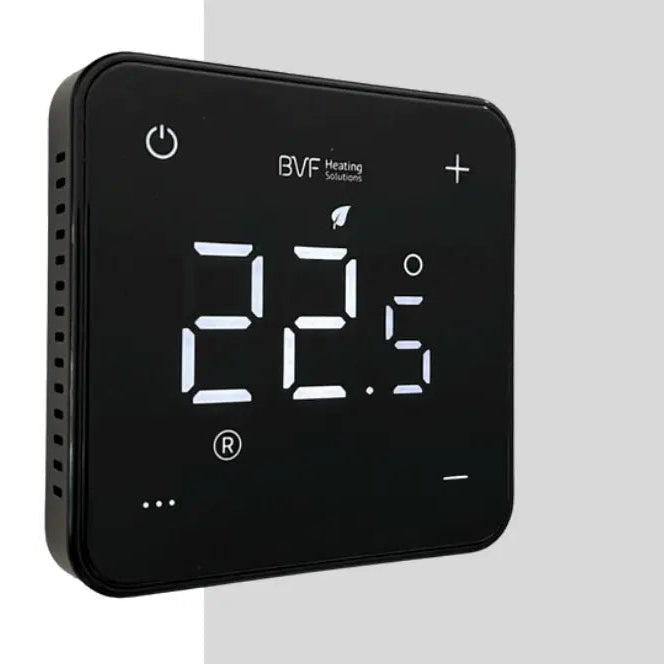

501 Smart WiFi Thermostat
The 501 Smart WiFi Thermostat provides intelligent, reliable, and convenient control for electric heating systems including infrared panel heaters, electric radiators, and electric underfloor heating. Featuring built-in WiFi connectivity and smartphone control, the 501 allows you to manage your heating remotely from anywhere using Android or iOS devices.
Designed for simplicity and efficiency, the thermostat combines advanced programming functions, accurate temperature control, and energy-saving features to help reduce heating costs by up to 40%. Its modern interface, cloud-based connectivity, and ERP-compliant functionality make it an ideal solution for residential and commercial heating applications.
Key Features

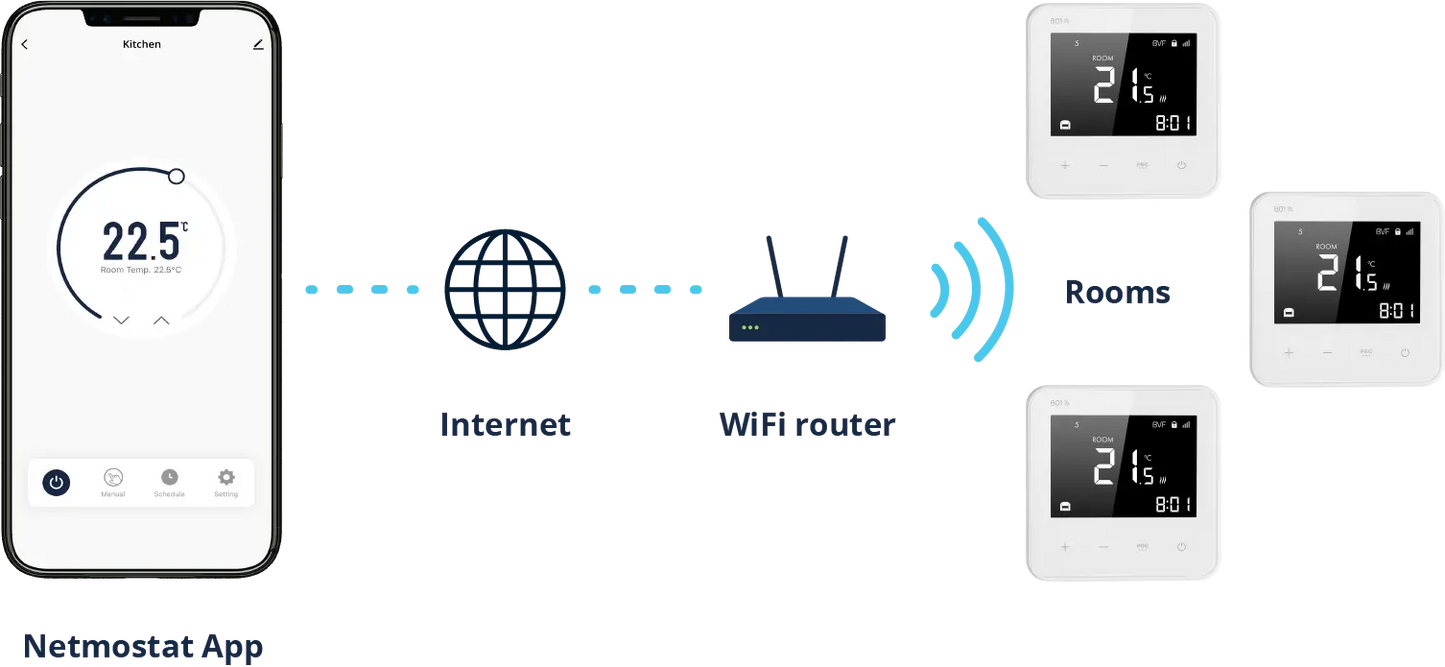

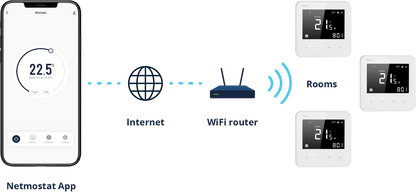

- Built-In WiFi Connectivity – Fast and reliable cloud-based remote access from anywhere.
- Smartphone App Control – Compatible with Android and iOS devices for convenient heating management.
- 4 Programmable Time Periods Daily – Create customised heating schedules for maximum efficiency.
- 7-Day Programming – Flexible weekly scheduling to suit changing routines.
- Energy Saving Operation – Can help reduce heating bills by up to 40% through intelligent control.
- Open Window Detection – Automatically reduces energy waste when rapid temperature drops are detected.
- High-Capacity 16A Relay – Suitable for electric heating loads up to 3600W.
- Accurate Temperature Control – Precise regulation with ±0.5°C accuracy.

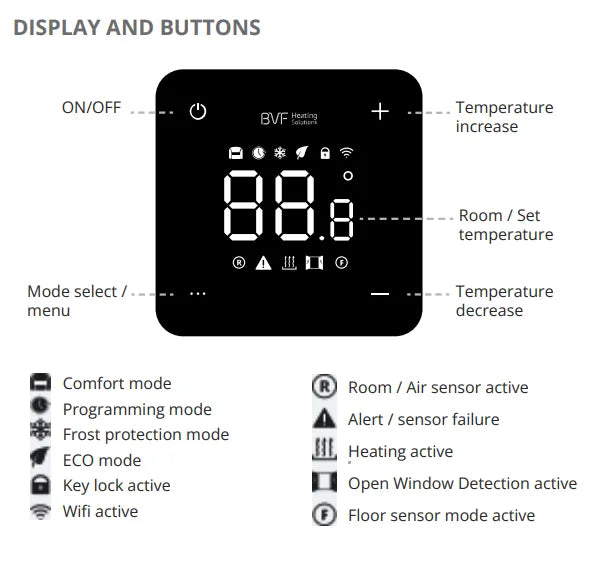

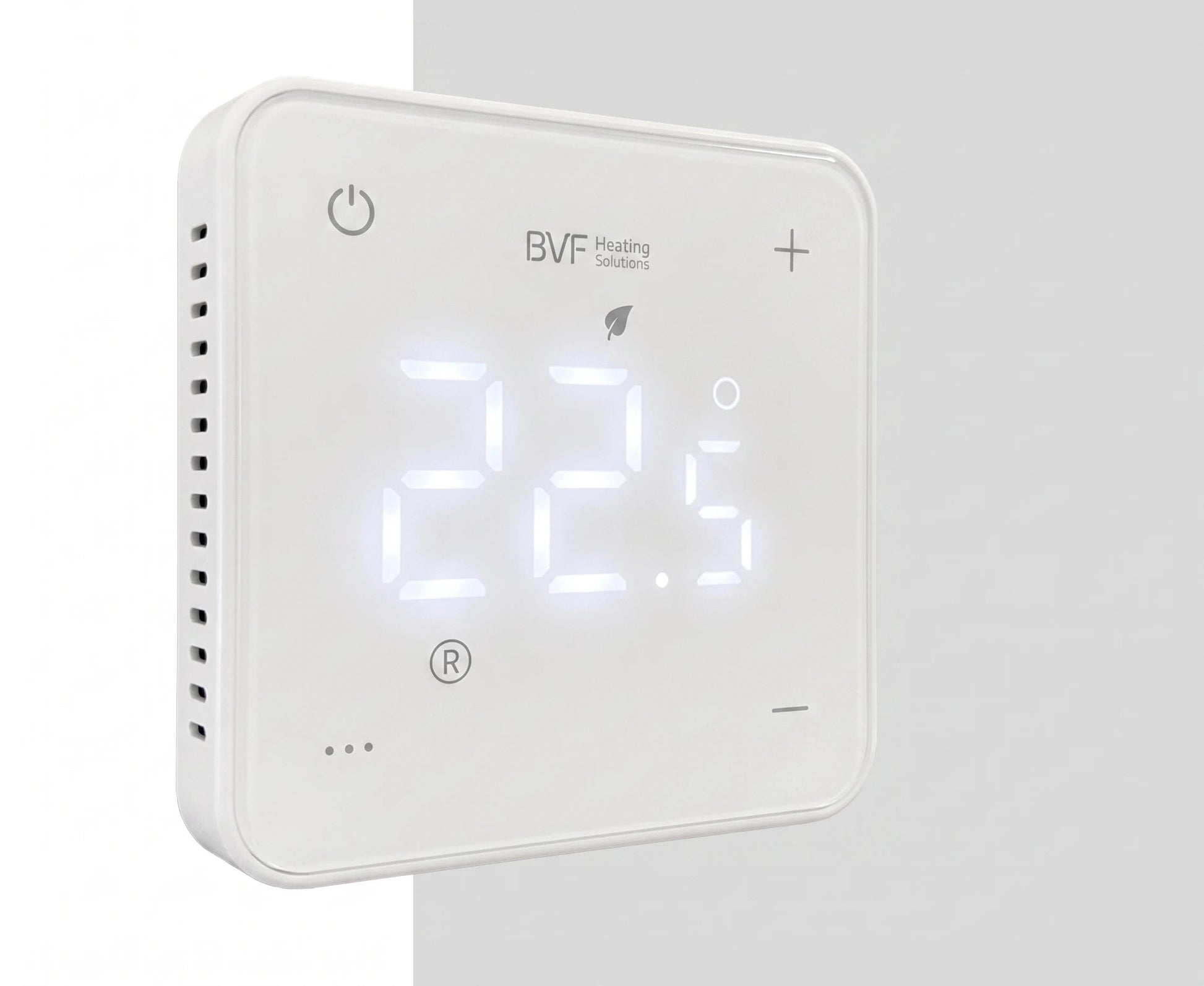

- User-Friendly Interface – Simple operation with clear LCD display and white backlight.
- ERP Ready – Complies with modern European energy efficiency standards.

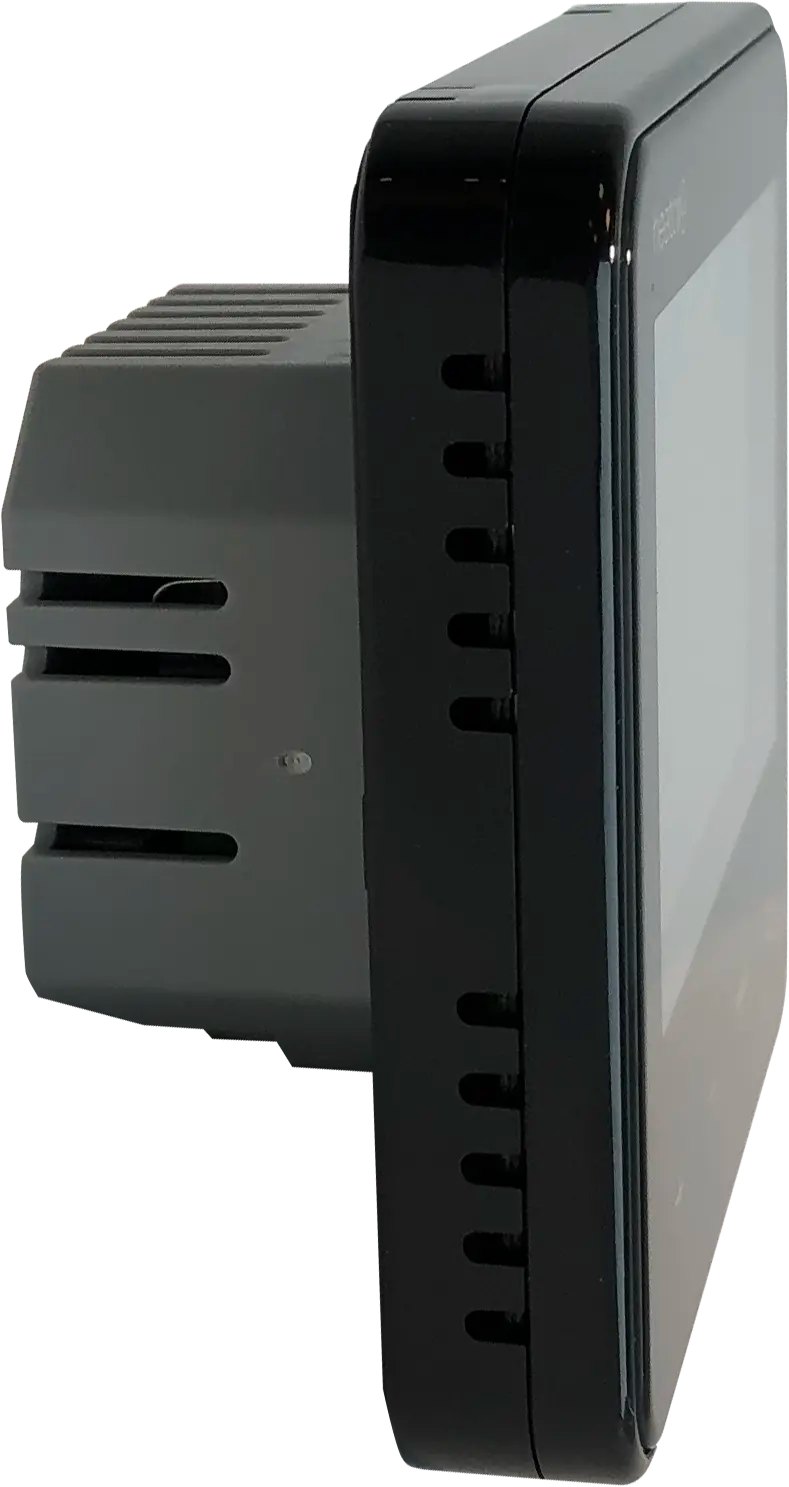

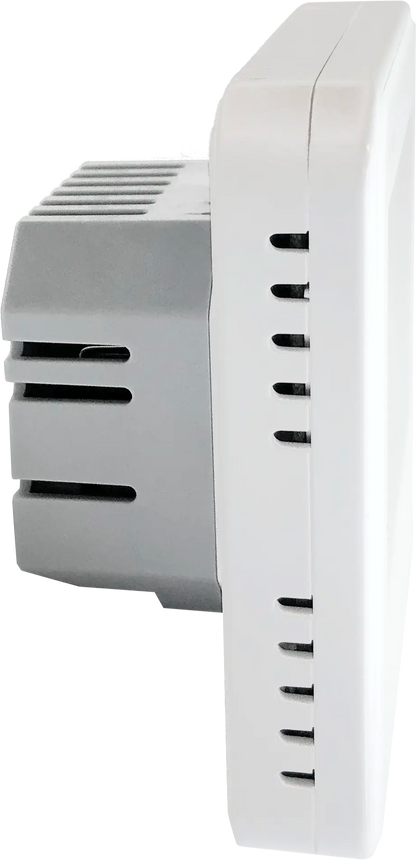

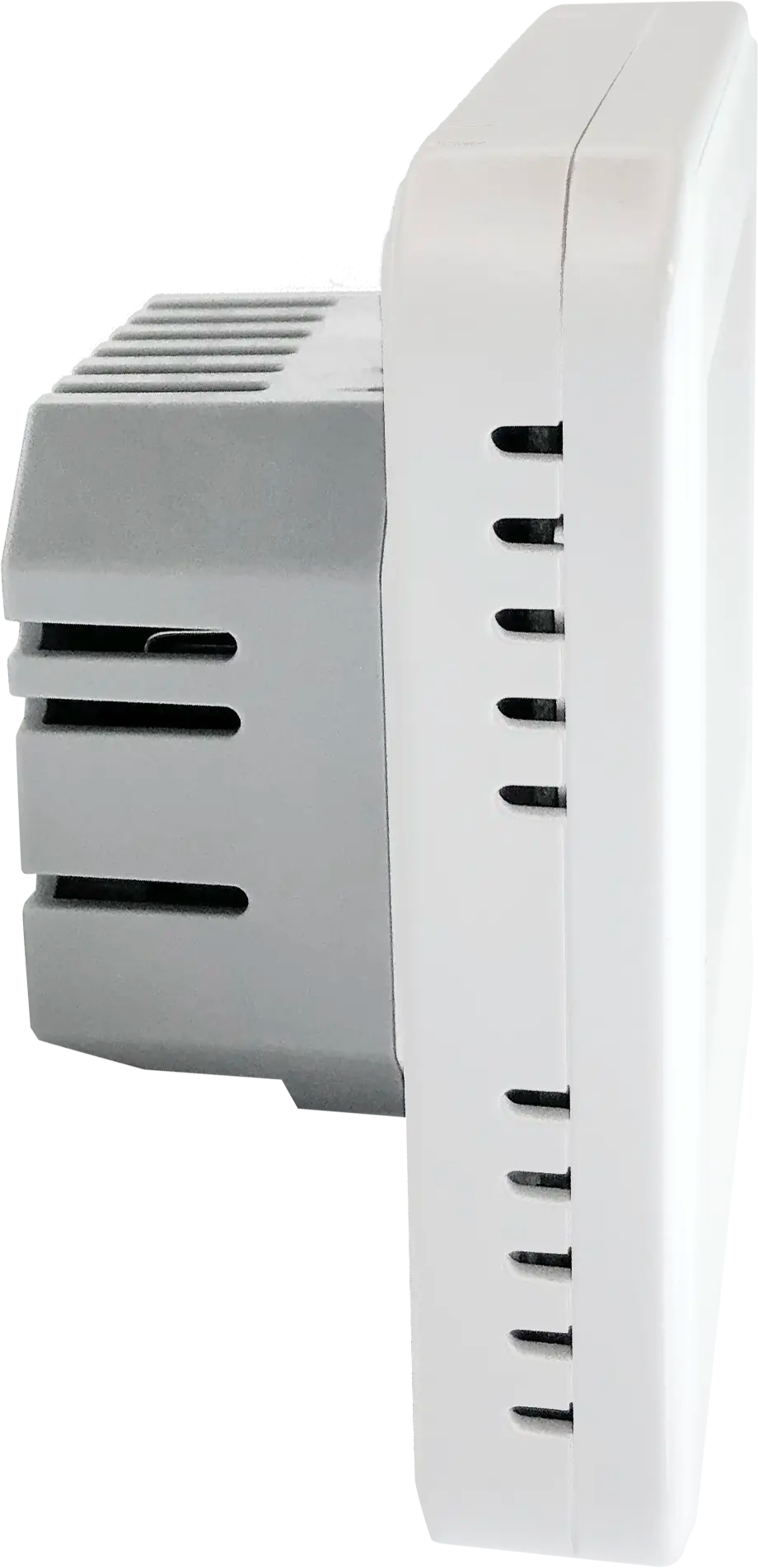

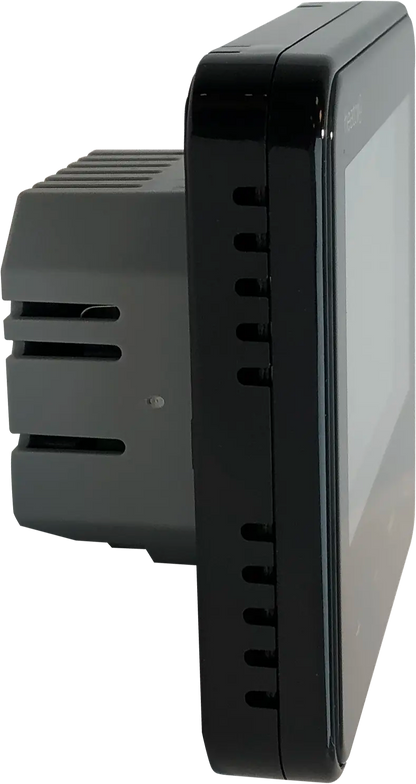

- Advanced Cooling Ventilation Design – Improves reliability and extends thermostat lifespan.
How It Works
The 501 thermostat continuously monitors room temperature and automatically controls the connected heating system to maintain the desired comfort level. Users can create personalised schedules, adjust temperatures remotely via smartphone, or operate the thermostat directly using the touchscreen interface.
Through intelligent temperature management and programmable schedules, the thermostat helps reduce unnecessary energy consumption while maintaining a comfortable indoor environment.
Installation & Setup
- Designed for standard flush wall mounting.
- Compatible with electric heating systems up to 16A / 3600W.
- Suitable for electric underfloor heating and infrared heaters.

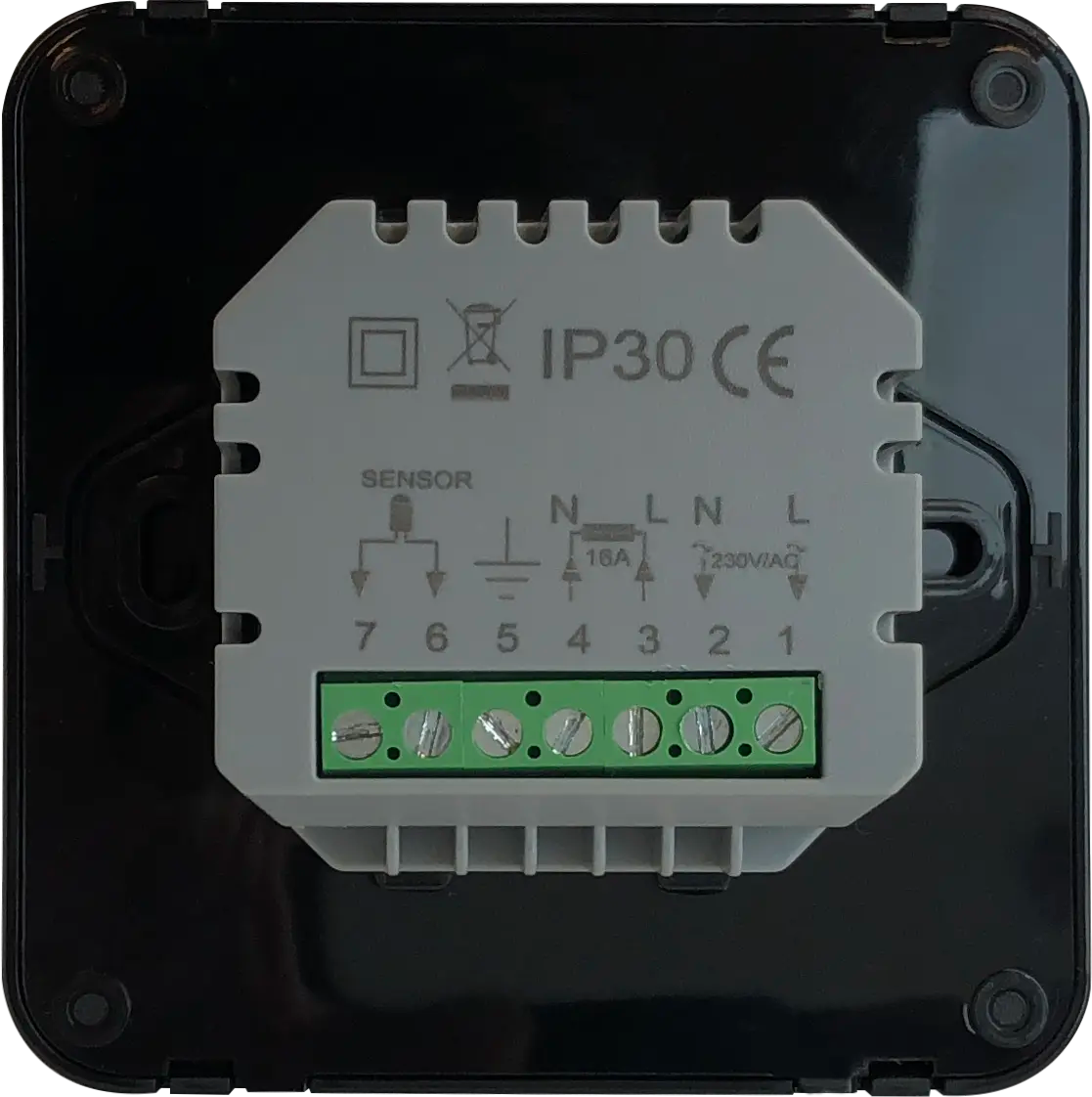

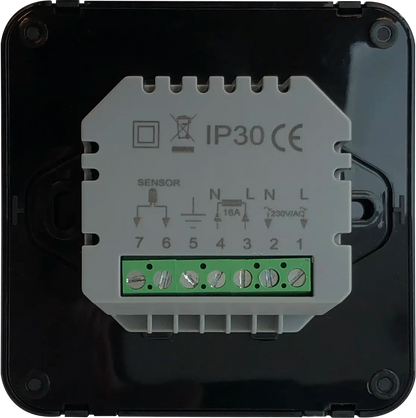

- Supports external NTC temperature sensor connection.
- Requires 230V AC power supply.
- Professional installation recommended.
- Connects via 2.4GHz WiFi networks.
Instructions Manual

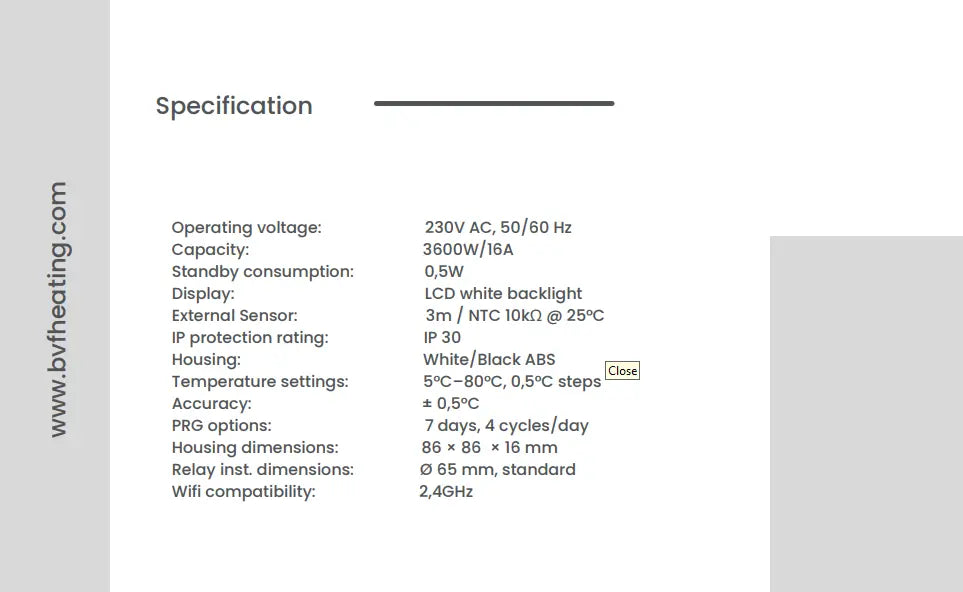

Specifications
| Product Type | Smart WiFi Programmable Thermostat |
|---|---|
| Application | Electric Heating & Underfloor Heating |
| Voltage | 230V AC, 50/60Hz |
| Relay Capacity | 16A / 3600W (Recommended Maximum 3200W / 14A) |
| WiFi Compatibility | 2.4GHz |
| Programming | 7 Day Schedule, 4 Time Periods Per Day |
| Temperature Range | 5°C – 80°C |
| Adjustment Resolution | 0.5°C Increments |
| Accuracy | ±0.5°C |
| Display | LCD Display with White Backlight |
| External Sensor | NTC 10KΩ @ 25°C |
| Standby Power Consumption | 0.5W |
| Dimensions | 86 × 86 × 16mm |
| Installation Box Size | Ø65mm Standard Flush Box |
| Weight | 0.3kg |
| Housing Material | ABS UL94-5 Fire Resistant Housing |
| IP Rating | IP30 |
| Connectivity | Built-In WiFi Remote Control |
| Energy Saving Features | Open Window Detection & ERP Compliance |
Installation: Must be installed by a qualified electrician in accordance with local electrical regulations.
WiFi Requirements: Requires a 2.4GHz wireless network for remote smartphone control.
Load Capacity: Maximum switching capacity is 3600W (16A). Continuous loads above 3200W should be controlled via a suitably rated contactor.
Compatibility: Suitable for infrared heating panels, electric radiators and electric underfloor heating systems.
Video Tutorials
Watch setup, and programming guides below.
