24-FX Wireless Programmable Room Thermostat & 24-X Receiver
The 24-FX Wireless Thermostat System provides precise and convenient control of electric heating systems, including infrared heating panels. Designed for flexibility and ease of use, the system consists of a portable wireless thermostat controller and a separate receiver unit, allowing simple installation and accurate room temperature management.

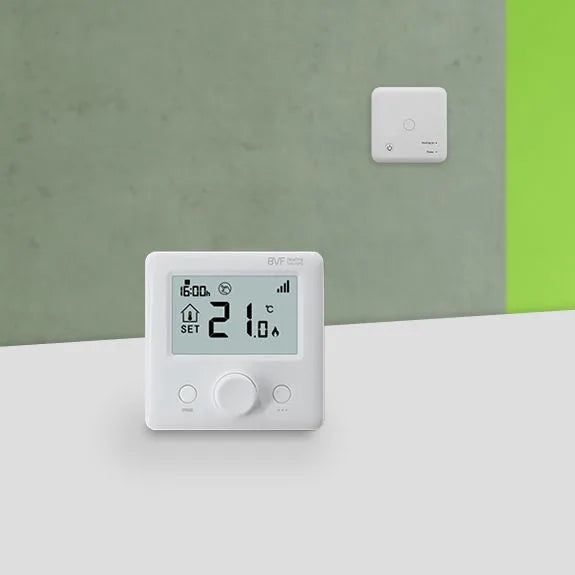

The 24-F Controller can be placed anywhere within the room or wall-mounted using the supplied bracket, while the 24-X Receiver is wired directly between the mains supply and heating appliance. Wireless RF communication ensures reliable operation without the need for thermostat wiring between rooms.
Key Features
- Wireless RF Thermostat System – Flexible installation without running thermostat cables.
- Portable or Wall Mounted Controller – Place the thermostat where it best represents room temperature.

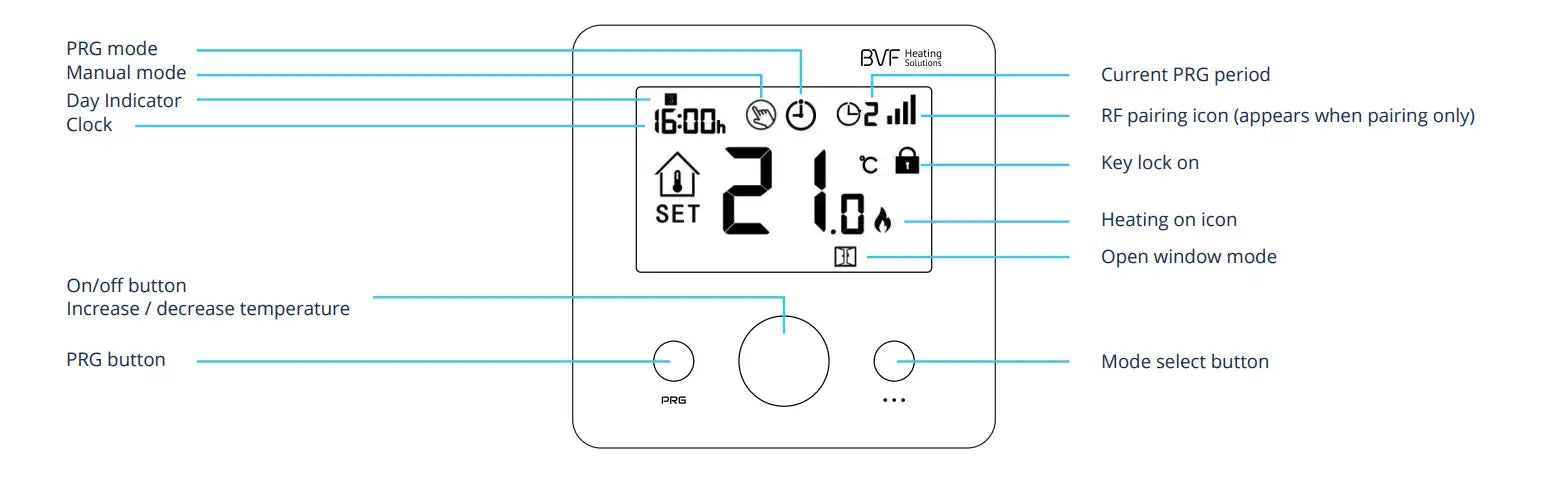

- Large Digital Display – Easy-to-read screen showing both current and target temperatures.
- Programmable Heating Schedule – Supports 4 programmable periods per day using a 5+1+1 weekly format.
- Accurate Temperature Control – Adjustable from 5°C to 35°C in 0.5°C increments.
- Energy Saving Operation – Automatically switches heating on and off to maintain the selected temperature.
- EEPROM Memory Backup – Retains settings during power interruptions.
- Simple User Interface – Quick setup and intuitive operation.
- Optional External Floor or Surface Sensor – Compatible with an additional sensor cable connected to the receiver (sold separately).
- Compatible with Electric Heating Systems – Ideal for infrared panels, electric radiators, and electric underfloor heating applications.
- CE Certified – Manufactured to European safety and compliance standards.
How the System Works
The 24-F thermostat continuously monitors room temperature and wirelessly communicates with the 24-X receiver. When the room temperature falls below the set point, the receiver activates the connected heating system. Once the desired temperature is reached, the receiver switches the heater off automatically.
This intelligent control method helps reduce energy consumption while maintaining a comfortable and consistent indoor temperature.
Installation & Setup
The wireless design allows the thermostat controller to be positioned where it can accurately measure room temperature, without requiring signal cables between the thermostat and heater.

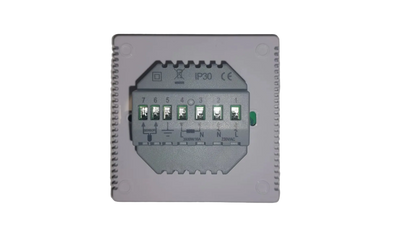

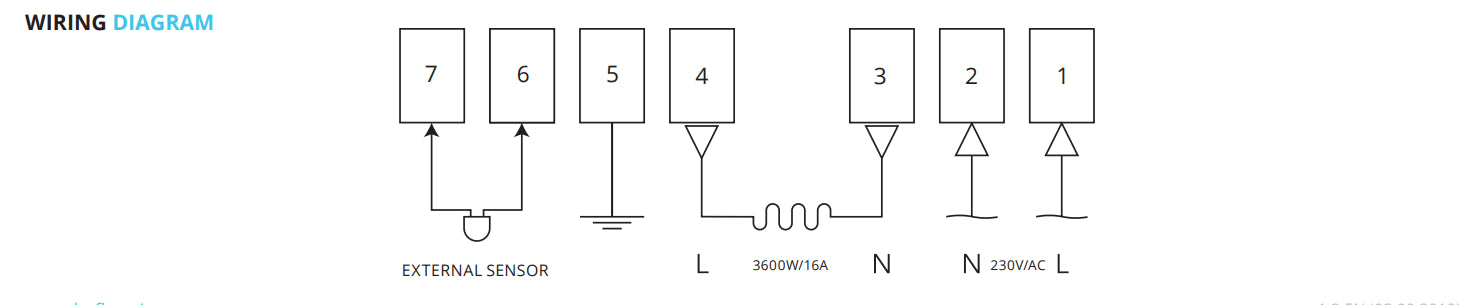

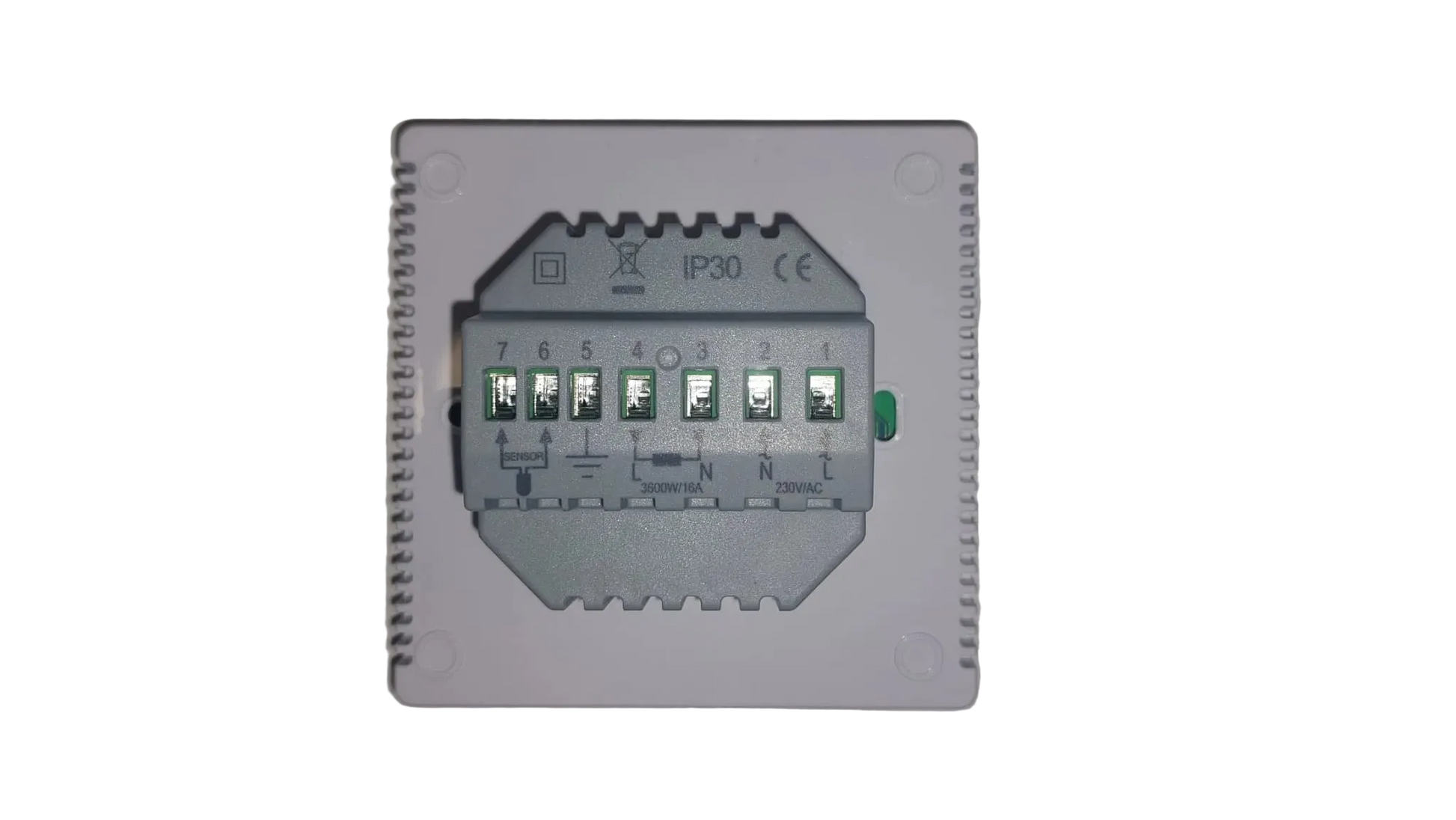

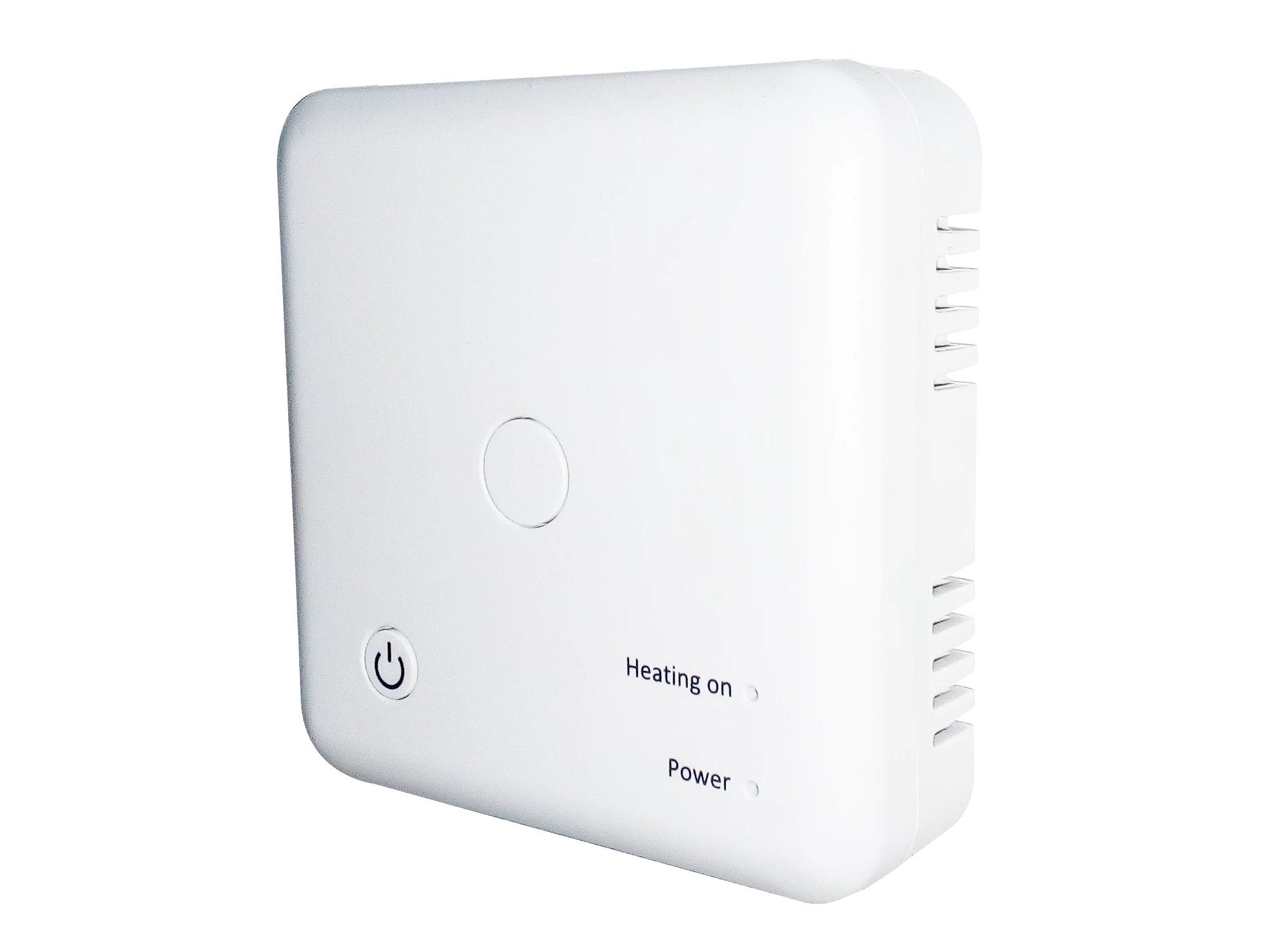

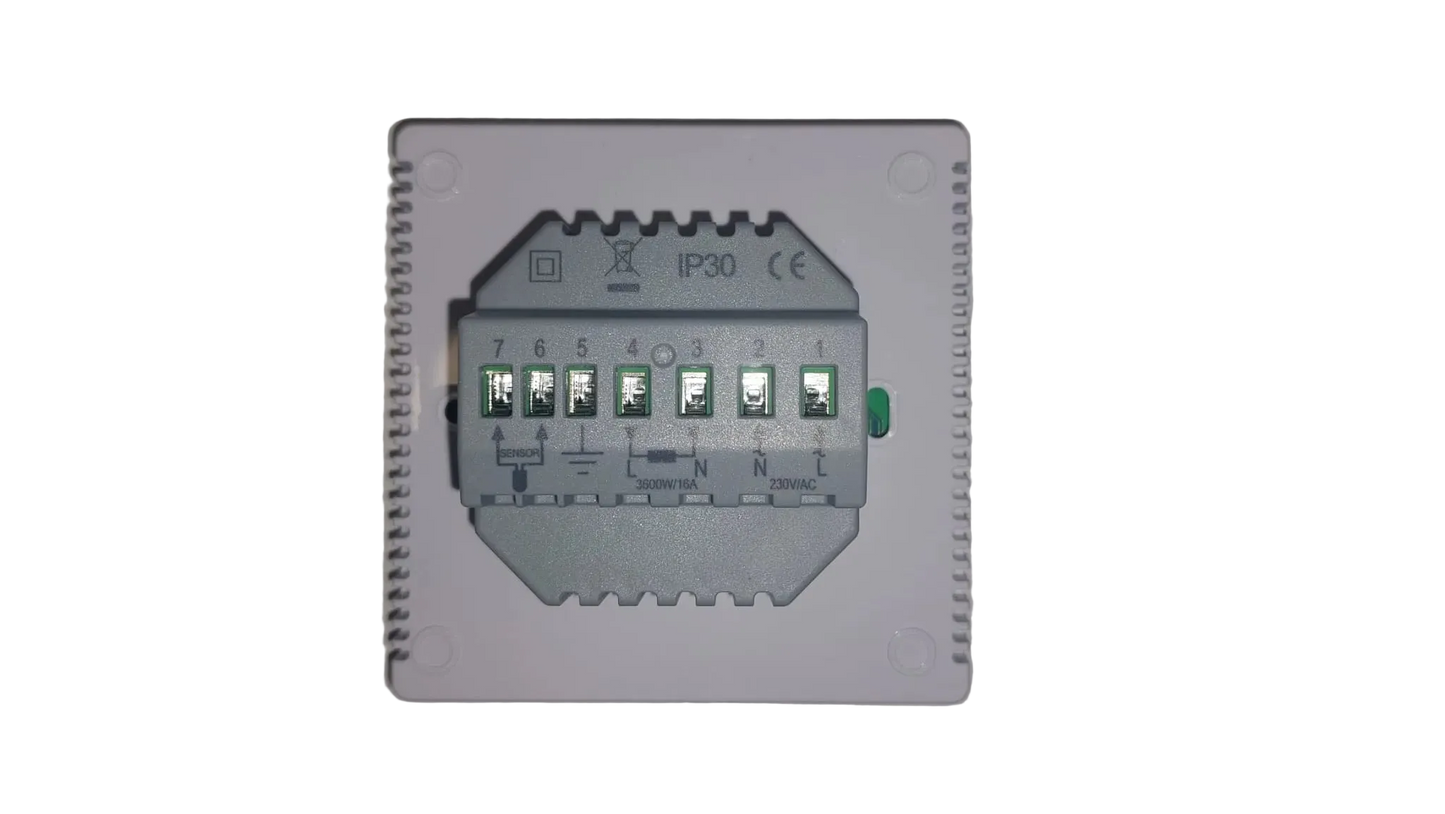

- The 24-X Receiver is wired between the mains supply and the heating appliance.
- The 24-F Controller is portable or mounted to a wall.

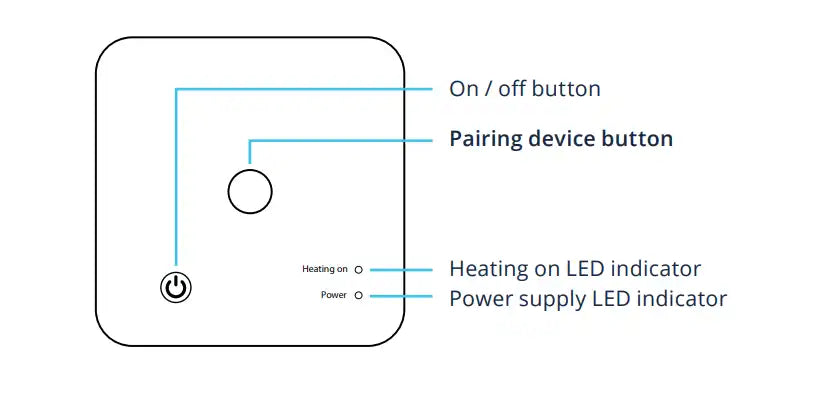

- Pairing between controller and receiver is quick and simple.
- Optional external sensor probe can be connected directly to the receiver for specialist applications.
- Suitable for residential and commercial heating installations.
Please refer to the installation manual for complete wiring instructions and safety guidance.
Recommended Applications
- Infrared heating panels.
- Electric panel heaters.
- Electric radiators.
- Underfloor heating systems.
- Homes, offices, retail spaces and commercial buildings.
Specifications
| Product Type | Wireless Programmable Room Thermostat & Receiver Pair |
|---|---|
| Controller Power Supply | 2 × AAA 1.5V Batteries (Not included) |
| Receiver Supply Voltage | 230V AC, 50/60Hz |
| Maximum Switching Load | 230V / 16A |
| RF Communication | 868 MHz / 433 MHz |
| Temperature Adjustment Range | 5°C – 35°C |
| Temperature Adjustment Steps | 0.5°C |
| Temperature Accuracy | ±0.5°C |
| Programming | 5+1+1 Weekly Schedule, 4 Time Periods Per Day |
| Memory Backup | EEPROM Non-Volatile Memory |
| Display | Digital LCD Display |
| IP Rating | IP20 |
| Colour | White |
| Certification | CE Certified |

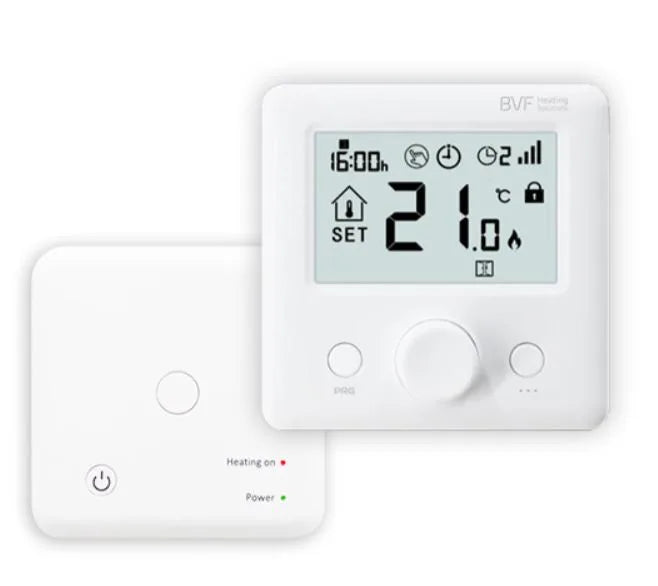

System Components
| Component | Description |
|---|---|

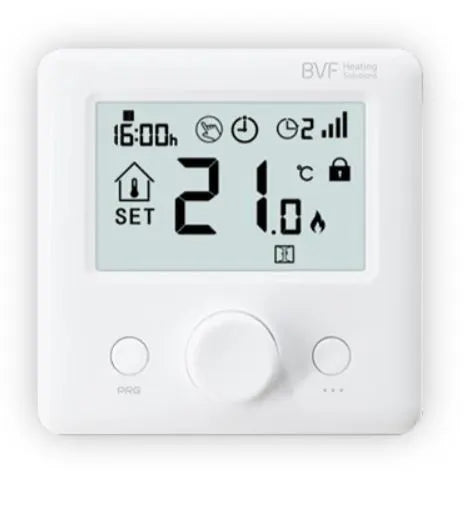

| 24-F Controller | Wireless programmable room thermostat with LCD display and wall mount option. |

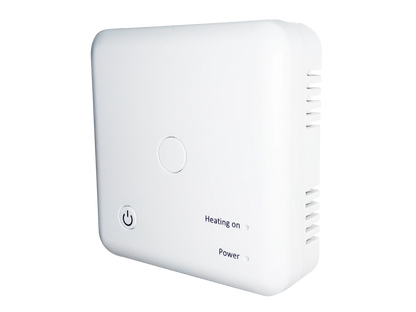

| 24-X Receiver | Receiver unit wired between mains supply and heating appliance. |
Installation: Receiver must be installed by a suitably qualified person in accordance with local electrical regulations.
Wireless Range: Actual operating range may vary depending on building construction and interference levels.
Compatibility: Suitable for controlling most electric heating appliances up to 16A switching capacity.
Video Tutorials
Watch pairing, setup, and programming guides below.
Pairing Controller to Receiver
Parameter Settings
Setting Current Time & Day
Programme Heating Schedule
Selecting Schedule or Manual Mode
